Summary
Safety light curtains are essential safety devices employed in industrial settings to protect personnel from hazards associated with machinery. They function by creating an invisible light beam that, when interrupted, signals a machine to halt its operation, thereby preventing potential injuries. Proper placement of safety light curtains is critical for their effectiveness and compliance with safety regulations, taking into account factors such as environmental conditions, machine characteristics, and worker behavior. The significance of these devices lies in their ability to enhance workplace safety and reduce liability risks, making them a vital component in various industries, including packaging, automotive manufacturing, and food processing.
The placement of safety light curtains involves several considerations, including the calculation of minimum safety distances, which must be determined based on the stopping time of machinery and the approach speed of workers. Safety distance calculations help ensure that light curtains are positioned adequately to provide a protective barrier against potential hazards, thereby minimizing the risk of accidents. Compliance with established safety standards, such as those outlined by OSHA and ANSI, further underscores the importance of proper light curtain placement in meeting legal and operational safety requirements.
Notably, there are controversies surrounding the implementation and certification of safety light curtains, with concerns about manufacturers misrepresenting compliance with safety standards. Such discrepancies highlight the need for organizations to conduct thorough evaluations of the safety devices they utilize, ensuring that they are certified and function effectively in their specific applications. By adhering to best practices and safety regulations, companies can optimize the use of safety light curtains to create a safer work environment while enhancing operational efficiency.
Table of Contents
Safety Light Curtain Placement
Overview
Safety light curtains are critical components in ensuring the safety of personnel working near hazardous machinery. Proper placement of these devices is essential for maximizing their protective capabilities and adhering to safety regulations. Factors such as environmental conditions, machine characteristics, and worker behavior must be carefully considered when determining the optimal location for light curtains.
Environmental Considerations
When placing safety light curtains, it is important to assess various environmental factors that may affect their performance. These factors include temperature, humidity, vibrations, and exposure to dust and moisture. The light curtains must be robust enough to withstand harsh conditions while maintaining their functionality and effectiveness.
Application Requirements
The specific requirements of the application should also influence light curtain placement. This involves considering the size and shape of the area to be protected, as well as the distance between the light curtain and the hazard. For instance, in high-risk environments where full body protection is necessary, light curtains with a lower resolution (40mm and above) may be suitable, effectively detecting larger body parts. In contrast, applications requiring higher detection accuracy may benefit from light curtains with a higher resolution, although this may come at an increased cost.
Safety Distance Calculations
Calculating the minimum safe distance is a critical step in light curtain placement. [ Ds = 63 \text{ inches/second} \times Ts ] where Ts represents the stopping time of the machine measured at the approximately 90° position of crankshaft rotation (in seconds). Adhering to this formula ensures that the light curtains are positioned far enough away from hazardous areas to allow for safe machine operation.
Installation and Configuration
Once the appropriate safety distance has been established, attention should be given to the installation and configuration of the light curtains. This includes ensuring that the devices are set to the proper height, taking into account the stature of operators and the potential presence of platforms or other obstructions. Additionally, safety light curtains should be installed at openings of equipment where they are most susceptible to dirt, debris, and impact, thus requiring models with high enclosure ratings (IP65/IP67) for enhanced durability.
Compliance with Standards
It is also essential to ensure that light curtain placement complies with established safety standards. In the United States, standards such as OSHA 29 CFR 1910.217 and ANSI B11.19 provide guidelines for the safe installation and use of light curtains, incorporating factors for calculating safe distances. Adhering to these standards not only enhances safety but also helps mitigate liability risks in industrial settings.
Calculating Safety Distances
Calculating the appropriate safety distance for the placement of safety light curtains involves several key factors and formulas to ensure the safety of personnel working near hazardous machinery. [ D = K \times (Td + Ti + Tc + Ts + Tscm) + dds ] Where: (K) = Approach speed of an individual toward the hazard zone (commonly 63 inches/second). (Td ) = Reaction time of the detection device, as provided by the manufacturer. (Ti) = Reaction time of the interface, also provided by the manufacturer. (Tc) = Reaction time of the actuator control system, measured with a stop time measurement device. (Ts) = Stopping time of the machine, typically determined by measuring the stop time multiple times and using the mean plus three standard deviations. (Tscm ) = Time associated with safe condition monitoring systems, defined by the specific parameters of the monitoring system. (dds ) = Reaching distance associated with the devices in use.
To accurately assess the safety distance, it is essential to evaluate the stopping time of the machine ((Ts )). This involves conducting at least ten stop time measurements to determine an average stopping time that accounts for any variations. This calculated value will be utilized in the formula to derive the minimum safety distance required for the specific application.
In practical applications, such as with mechanical power presses, it is crucial to consider that these machines do not stop immediately. There is an inherent delay due to the time taken for the machine to respond to the safety device and to halt completely. For instance, if a light curtain is positioned too close to the hazard, the machine may not halt in time to prevent an injury if a body part approaches the danger zone.
Furthermore, safety professionals can assist in determining the necessary stopping time and consequently the minimum safety distance for any specific setup. This proactive approach not only facilitates compliance with safety regulations but also mitigates potential long-term costs associated with workplace injuries and equipment downtime.
Compliance and Standards
Light curtains are critical safety devices used in various industrial applications to prevent accidents and ensure compliance with occupational safety regulations. Compliance with established safety standards is essential for effective light curtain implementation and use.
Safety Standards
Light curtains must comply with specific standards to ensure their safety and reliability. In the United States, the primary standard governing light curtains is the IEC-61496, parts 1 and 2, which addresses electrical and functional safety aspects of electro-sensitive protective equipment. This standard has been adopted as ANSI/UL 61496, creating a regulatory framework for light curtain manufacturing and deployment. Products that meet this standard should display clear labeling, including the standard designation, certification number, and certifying body. It is important to note that some manufacturers may incorrectly claim certification to draft standards, such as prEN 50100-1 & 2, which are not equivalent to the established IEC-61496 standards.
Compliance Evaluation
When selecting and installing light curtains, it is crucial to evaluate specific machine requirements. Factors such as the operational speed, size of the area to be covered, and the types of materials processed must be considered. Compliance verification with relevant safety standards, including ISO 13849 and IEC 61496, is necessary to ensure that the installed systems adhere to legal and operational requirements. Engaging safety experts can provide additional guidance in selecting the most suitable light curtain solutions and installation practices.
Safety Governance
Several entities oversee safety regulations applicable to light curtains and related machinery. The Occupational Safety and Health Administration (OSHA) enforces standards to ensure safe working conditions, including regulations that govern mechanical power presses (29 CFR 1910.217) and point of operation safeguarding devices. Additionally, state-specific OSHA plans may have additional requirements for safety compliance, depending on local regulations. The American National Standards Institute (ANSI) develops voluntary consensus standards and coordinates them with international standards, providing a comprehensive framework for machine safety, including light curtain placement.
Minimum Safety Distances
Establishing appropriate safety distances is crucial for the effective operation of light curtains. Safety distance calculations are influenced by various factors, including the stopping time of machinery and the approach speeds of human body parts. Standards such as ISO 13855 and the OSHA guidelines provide methodologies for determining minimum safe distances from hazards, ensuring that light curtains are positioned adequately to prevent accidental access. For example, the basic OSHA formula for minimum safety distance (Ds) considers hand speed and machine stopping time.
By adhering to these compliance requirements and standards, organizations can effectively implement light curtains, enhancing safety in the workplace while meeting regulatory obligations.
Best Practices
When implementing safety light curtains, adhering to best practices is crucial for ensuring both operational efficiency and worker safety. These practices encompass installation, periodic testing, and maintenance procedures.
Installation Guidelines
Assess Machine Requirements: Prior to installation, evaluate the specific requirements of the machinery, including the size of the area to be covered and the speed of operations. Consideration should also be given to the types of materials being processed. Calculate Safety Distances: It is essential to calculate safety distances based on factors such as an individual’s approach speed, the machine’s stopping time, and the necessary response times of the safeguarding device. This calculation helps to prevent accidents by ensuring the light curtain is placed at an appropriate distance from hazardous areas. Consider Environmental Conditions: The installation site should be assessed for environmental factors like temperature, humidity, and exposure to dust and moisture. These conditions can affect the light curtain’s functionality and should be taken into account to maintain optimal performance. Avoid Interference: When positioning light curtains, avoid placing them near strong direct light sources or high-power electrical devices that may cause electromagnetic interference. Utilizing light shields or adjusting lighting conditions may be necessary to enhance the effectiveness of the safety system.
Periodic Testing
Regular testing of the safety system is a key component of best practices. It is recommended to perform tests at the start of each shift, during job changes, or when there is a change in personnel. These tests should verify that the light curtain is functioning correctly and that the press stops appropriately when the curtain is interrupted. Manufacturers typically provide guidance on conducting these tests, ensuring they encompass the entire safety system rather than focusing solely on the light curtain itself.
Maintenance Practices
Establishing a regular maintenance schedule is critical for long-term reliability and safety. This schedule should follow the manufacturer’s guidelines and consider the operating environment. Regular Inspections: Inspect the installation angles, transmission distances, and positions of the light curtains frequently to ensure optimal working conditions. Keep transmitters and receivers clean to prevent dust or oil stains from obstructing the infrared light transmission. Documentation: Maintain detailed records of inspections, cleaning, and any component replacements. These records can assist in troubleshooting and planning future upgrades. Prompt Attention to Issues: If complex faults arise, it is advisable to contact professional technicians or the manufacturer’s service center promptly to ensure safe and effective maintenance actions are taken. By following these best practices, organizations can significantly enhance the safety and effectiveness of their operations while complying with regulatory standards.
Real-World Applications
Safety light curtains play a crucial role in various industrial sectors by enhancing both safety and efficiency in operational processes. They are particularly significant in environments where machinery operates closely with human workers, such as in the packaging, automotive, and food and beverage industries.
Packaging Industry

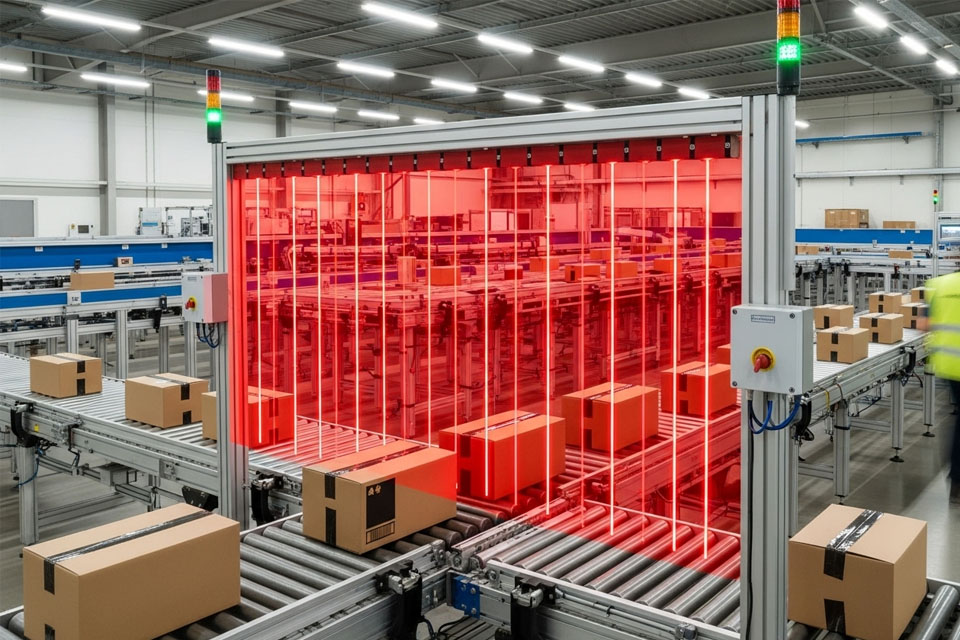

In the packaging sector, safety light curtains, such as the deTec4, are employed not only to ensure the safety of personnel but also to detect unclosed parcels. This dual functionality allows for effective differentiation between people and materials while simultaneously monitoring the integrity of packages on conveyor systems. The deTec4 safety light curtain can achieve a resolution of 14 to 30 millimeters, providing sufficient sensitivity for detecting open tabs and height variations in parcels.
Automotive Manufacturing
In automotive assembly lines, safety light curtains are instrumental in monitoring high-risk processes, ensuring worker safety, and enhancing production efficiency. By utilizing safety light curtains, manufacturers can halt or adjust machine operations in response to the presence of personnel in hazardous zones, thereby minimizing the risk of accidents while maintaining productivity.
Food and Beverage Sector
Within the food and beverage industry, safety light curtains help monitor production line equipment to prevent food contamination and waste. Their ability to detect the presence of objects and workers allows for a safer working environment, ensuring compliance with health and safety standards while optimizing workflow efficiency.
Logistics and Warehousing
Safety light curtains are also essential in logistics and warehousing applications, where they facilitate the safe navigation of automated guided vehicles (AGVs). By detecting obstacles and ensuring safe transportation of goods, safety light curtains contribute to the overall efficiency of material handling operations.
General Industrial Use
Beyond specific industries, safety light curtains are widely utilized across mechanical manufacturing and chemical production sectors to monitor equipment operation and safeguard workers from potential hazards. They are integral to maintaining smooth production processes while complying with regulatory safety standards, such as those set by OSHA.
