| Description |

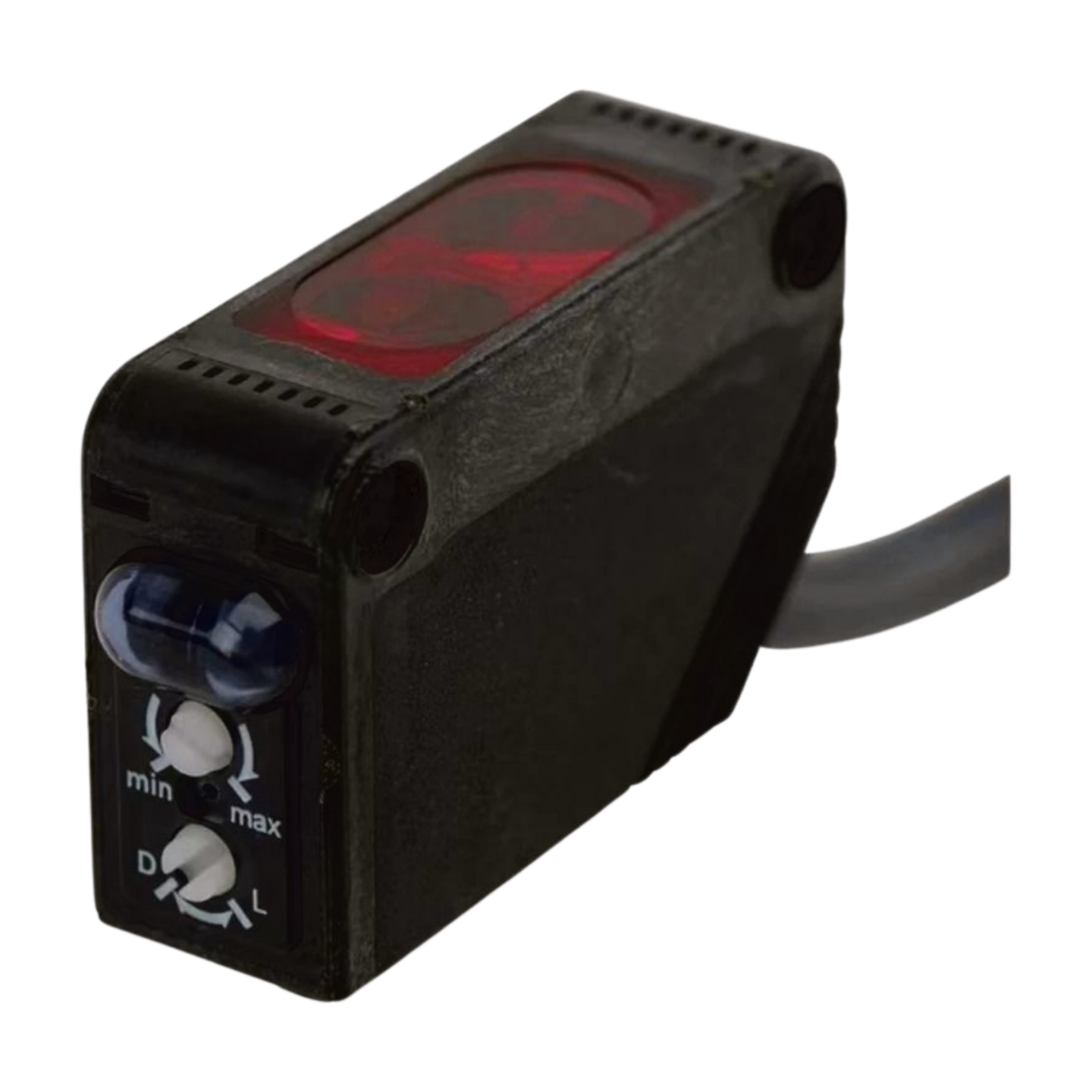

Laser Photoelectric Sensor |
| Use |
positioning/Transparency detection |
| Mounting Type |
Polarized reflection |
| Model Number |
Square/Transparency detection |
| Features |
Square |
| Theory |
Polarized reflection |
| Output |
NPN PNP NO+NC |
| Viewing Angle |
3° – 30° |
| Response Time |
1ms |
| Voltage – Supply |
10-30VDC |
| Wavelength |
940nm/600nm/ |
| active area |
0-30m |
| Dark Count Rate |
10Hz – 100Hz |
| Supply voltage |
10…30 VDC, Ripple<10%Vp-p |
| Certificate |
CE |
| Load current |
≤100mA |
| Voltage drop |
≤1.5V |
| Connection |
with 2m PVC Cable 4 pin |
| Protection degree |
IP67 |
| Response time |
<2ms |
| Detection type |
Polarized reflection |
| circuit protection |
Reverse polarity protection, overcurrent protection |
| overvoltage protection |
yes |
