Summary
Light curtains and standard photoelectric sensors are critical components in industrial automation and safety systems, utilized to protect personnel from hazardous machinery and enhance operational efficiency. Light curtains consist of multiple beams of infrared light that create a protective field; when an object interrupts any beam, the device triggers an emergency stop signal to halt machinery. This functionality allows for rapid detection of potential hazards, making light curtains vital in high-risk environments. In contrast, standard photoelectric sensors operate on a simpler principle, typically involving a single beam to detect larger objects but lacking the advanced safety features and fail-safes provided by light curtains.
The significance of light curtains arises from their ability to significantly reduce workplace accidents by safeguarding against injuries associated with moving machinery. These devices are classified according to international standards, such as IEC 61496, with Type 4 light curtains offering the highest safety performance levels suitable for demanding applications. Their adaptability in various settings—from machine guarding to quality inspection—demonstrates their essential role in modern industrial practices.
Despite their advantages, the adoption of light curtains can be hindered by high initial costs and integration challenges, particularly for smaller enterprises. Furthermore, competition from alternative safety technologies may limit their market penetration, even as industries increasingly prioritize safety and compliance with stringent regulations. Notably, the ongoing growth of automation in sectors such as manufacturing and robotics continues to drive demand for enhanced safety solutions, underscoring the relevance of light curtains in contemporary industrial applications.
Table of Contents
Technical Specifications
Safety Light Curtains
Safety light curtains are advanced devices designed to protect personnel from hazardous machinery by creating a protective field using multiple beams of infrared light. When any of these beams are interrupted, the light curtain sends a signal to the machine’s emergency stop circuit. The design of safety light curtains can vary significantly in terms of resolution, which is defined by the spacing between the beams. Typically, these beams are positioned 14 to 90 mm apart, allowing the light curtains to detect objects as small as fingers, hands, or larger body parts, depending on their specific resolution capabilities.
Types and Standards
Safety light curtains are classified into different types, primarily according to the IEC 61496 standards. Type 2 and Type 4 devices differ in their safety integrity levels and applications; Type 4 devices, for instance, offer higher performance and are often required for applications demanding a Safety Integrity Level (SIL) of 3 or Performance Level (PL) e. The operational specifications of these devices must align with established standards such as EN ISO 13849 for PL and IEC 61508 for SIL, ensuring that they meet the necessary safety requirements for various applications.
Protective Field Height and Scanning Range
The protective field height and scanning range of safety light curtains are crucial for determining their suitability for a specific application. The protective field height is influenced by the resolution of the device; a higher resolution allows for more precise detection of smaller objects, while the scanning range can vary based on the type of device used (fixed, selectable, or auto-adjusting). It is essential to select a device with an appropriate range to avoid unsafe reflections or missed detections in applications involving varying distances.
Standard Photoelectric Sensors
Standard photoelectric sensors operate on a simpler principle than safety light curtains. These sensors typically consist of a transmitter and a receiver that work together to detect the presence of an object by measuring interruptions in a single beam of light. They are suitable for general object detection but do not provide the same level of safety features as light curtains, such as the ability to detect small objects or provide fail-safe mechanisms in hazardous environments.
Terminology and Functionality
Standard photoelectric sensors, unlike safety light curtains, generally use a single beam, making them less capable of providing comprehensive protection. They can be used for various applications, such as counting objects or detecting larger items passing through a designated area. However, they lack the multi-beam setup and complex safety functions that characterize safety light curtains, which are specifically designed to safeguard against potential injuries in industrial settings.
Applications
Light curtains are widely utilized in various industrial applications due to their ability to enhance safety and efficiency in automated environments. They serve as critical safety devices that prevent accidents by detecting the presence of personnel in hazardous areas and can also be integrated into broader automation systems for improved functionality.
Industrial Automation

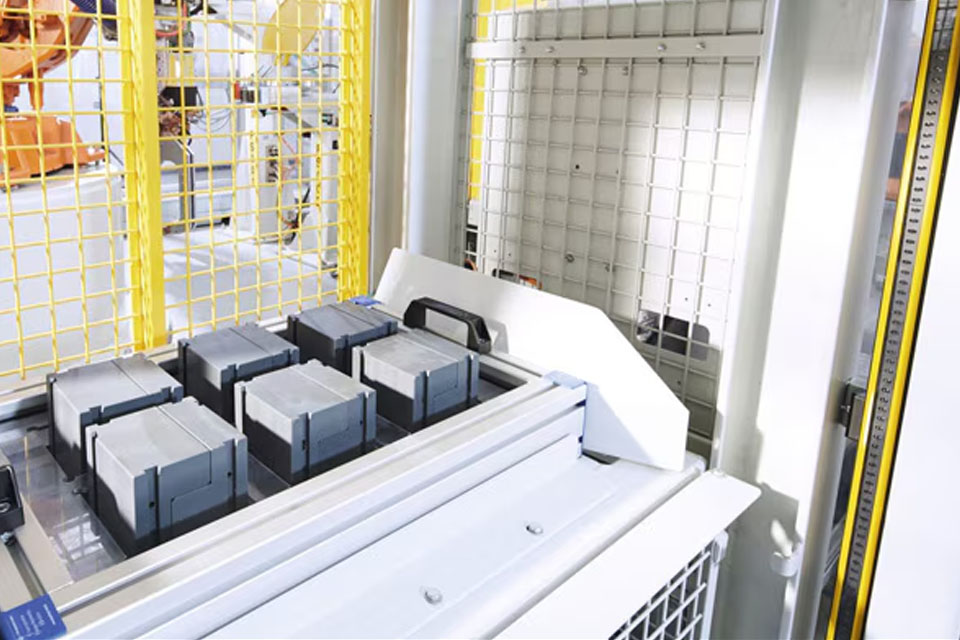

One of the primary applications of light curtains is in the realm of industrial automation. They are frequently employed in conjunction with robotic systems to create virtual safety barriers that monitor the workspace around robots. When an object breaches the safety curtain, the system is programmed to halt the robot’s operation, thereby preventing potential injuries to workers nearby. This application is particularly useful in manufacturing settings where human-robot collaboration is necessary, allowing for a more flexible workspace without the need for physical barriers.
Machine Guarding
Light curtains are integral components in machine guarding, especially in press machines where they can detect fingers or hands during the loading and unloading of workpieces. Their rapid response times make them suitable for environments with short cycle times, ensuring that operators are protected from potential accidents associated with moving machinery. Moreover, light curtains can be strategically placed at the openings of safety guards on industrial robots, enabling efficient workpiece handling without needing to open and close safety doors, thereby streamlining operations.
Quality Inspection and Measurement
In addition to safety functions, modern light curtains also provide capabilities for quality inspection and measurement. For instance, some models, such as the deTec4 safety light curtain from SICK, utilize IO-Link technology to transmit beam data that can be employed for height measurements and quality checks of conveyed products. This dual functionality allows for enhanced monitoring of production processes while maintaining safety standards.
Environmental Control
Light curtains are also instrumental in controlling environmental conditions in specific applications, such as greenhouses, where they can be integrated into systems designed to monitor and optimize growth conditions. By facilitating real-time data acquisition and processing, light curtains contribute to a more intelligent and responsive environment for plant cultivation.
Advantages and Disadvantages
Advantages of Light Curtains
Enhanced Worker Safety
Light curtains serve as a non-contact protective measure, significantly reducing the risk of injuries associated with moving machinery. By immediately stopping operations when the light beam is interrupted, they effectively prevent accidents before they occur.
Increased Productivity
The implementation of light curtains allows for continuous, non-intrusive monitoring of hazardous areas, enabling smoother workflow and minimizing downtime. This increased productivity can stem from reduced need for operator intervention during machine operation.
Flexibility and Versatility
Light curtains can be adapted to various manufacturing contexts, featuring customizable settings such as blanking and muting to meet specific operational requirements. This adaptability enhances their effectiveness across different machinery and tasks.
Compliance with Safety Standards
Light curtains are designed to meet stringent safety regulations, ensuring compliance with industry standards such as OSHA and ANSI. Their deployment in hazardous environments can significantly contribute to workplace safety and regulatory adherence.
Disadvantages of Light Curtains
High Initial Costs
One of the most significant barriers to the widespread adoption of light curtains is their high initial investment, which includes costs for purchase, installation, and maintenance. This can be particularly prohibitive for smaller businesses or operations in developing regions.
Integration Challenges
Integrating light curtain systems into existing industrial setups may pose complications. Ensuring seamless operation alongside current machinery can require substantial effort and expertise, creating potential disruptions during the transition phase.
Competition from Alternative Technologies
Light curtains face competition from other safety technologies that may offer lower costs or simpler installation processes. This competitive landscape can limit their market penetration and growth despite their benefits.
Limited Application in Specific Environments
While light curtains are designed for high reliability, their effectiveness can be compromised in extremely challenging environments, such as those with excessive contamination or extreme conditions. In such cases, alternative safety solutions might be more appropriate.
Safety Standards and Regulations
Safety light curtains are critical components in industrial safety systems, designed to protect personnel working near hazardous machinery. Their design and implementation must comply with a range of safety standards and regulations to ensure reliability and effectiveness in minimizing risks associated with machine operations.
Key Regulations
The Occupational Safety and Health Administration (OSHA) plays a significant role in regulating workplace safety. The primary regulation governing mechanical power presses is OSHA standard 1910.217, which outlines essential principles for the construction and safeguarding of such equipment. Although this regulation has remained relatively unchanged over the years, it is still enforceable law and does not apply to direct-drive servo presses. Additionally, as of January 2019, 22 states have their own safety and health programs, which are approved and monitored by OSHA, necessitating that companies adhere to their state’s specific regulations.
Functional Safety Standards
Multiple international standards guide the implementation of safety light curtains, ensuring they meet essential safety integrity levels:
- IEC 61508 is the cornerstone standard for functional safety concerning electric and programmable electronic devices, defining requirements for design, operation, and maintenance to achieve Safety Integrity Levels (SIL).
- ISO 13849-1 specifies requirements for Performance Level (PL) for machinery, further enhancing safety protocols in manufacturing environments.
- IEC 62061 focuses on the Safety Integrity Level claim limits for both electrical and non-electrical machinery, including hydraulic and pneumatic systems.
- IEC 61496-1 and -2 detail the requirements specifically for photoelectric devices, such as light curtains and grids, which are integral to safeguarding operations.
Safety Categories and Types of Light Curtains
Safety light curtains are categorized based on their level of risk mitigation. Light curtains must comply with established standards to be classified correctly. For instance, the most reliable light curtains are classified as Type 4, which is recognized for offering the highest safety performance. These devices typically incorporate self-diagnosis functions to detect faults and ensure continuous safe operation. In contrast, standard photoelectric sensors may not offer the same level of reliability and safety compliance, underscoring the importance of selecting the appropriate safety device based on operational needs.
Additional Considerations
When choosing safety light curtains, it is essential to consider factors such as environmental resistance, reliability under harsh conditions, and the manufacturer’s reputation for support and service. Effective safety measures should also encompass operator training and the use of physical barriers in conjunction with safety light devices, creating a comprehensive safety strategy that reduces risks to a tolerable level.
Market Trends
The market for Single Beam Safety Light Curtains is experiencing significant growth, fueled by a variety of factors including increased automation, stringent safety regulations, and a rising demand for enhanced industrial safety solutions. As industries adopt advanced technologies and prioritize worker safety, the Single Beam Safety Light Curtain market is expected to expand in several key sectors, notably manufacturing, automotive, and robotics.
Key Growth Drivers
Several factors are driving the growth of this market. The rise of industrial automation and smart factory initiatives is a primary catalyst, with businesses seeking to improve operational efficiency and workplace safety. Governments globally are also implementing stricter safety standards, which further boosts demand for safety light curtain systems. The ongoing trend toward ensuring safety and reducing workplace injuries is a strong motivator for industries to invest in reliable safety solutions, thereby propelling market expansion.
Challenges in the Market
Despite its promising outlook, the Single Beam Safety Light Curtain market faces challenges, primarily related to high initial costs associated with these systems. Small businesses, particularly in developing regions, may find the investment required for installation and maintenance prohibitive. Additionally, the complexity of integrating these safety systems into existing operations can present difficulties, further hindering adoption rates.
Regional Insights
Geographically, the Asia-Pacific region is emerging as a significant growth area due to rapid industrialization and rising disposable incomes. Meanwhile, North America and Europe continue to lead in market maturity and technological adoption. Latin America, Africa, and the Middle East are also recognized for their potential growth opportunities, particularly as infrastructure develops and investments increase in these regions.
Future Outlook
The future of the Single Beam Safety Light Curtain market appears positive, bolstered by continuous technological advancements, increased regulatory support, and a growing emphasis on industrial safety investments. Emerging economies are likely to offer further growth prospects as their industrial sectors expand and modernize. The integration of innovative technologies, such as Al and loT, is expected to enhance operational efficiency and competitive positioning within the market, indicating a dynamic and evolving landscape for safety solutions.
