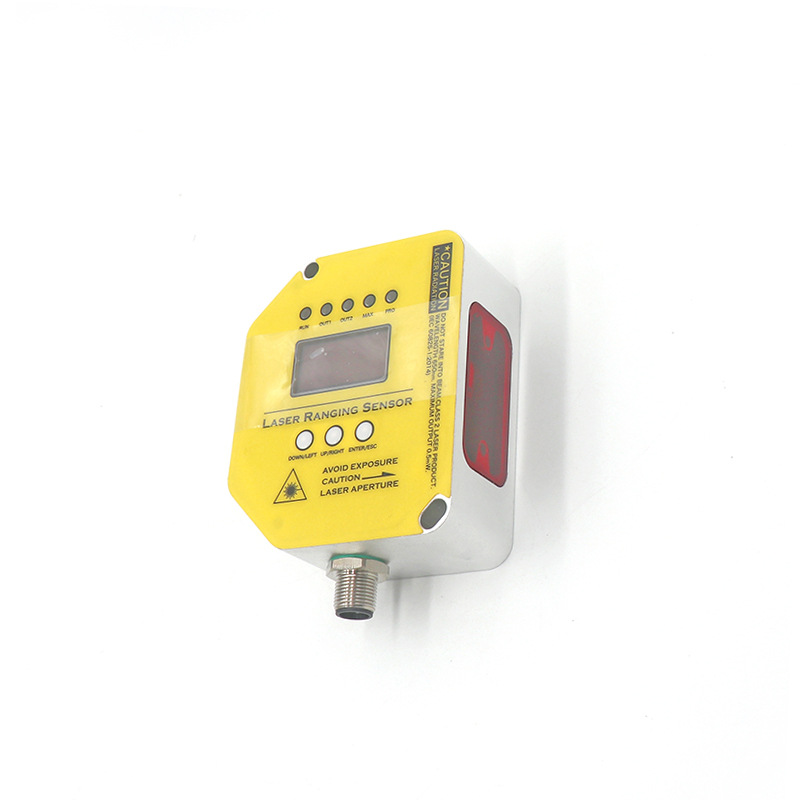

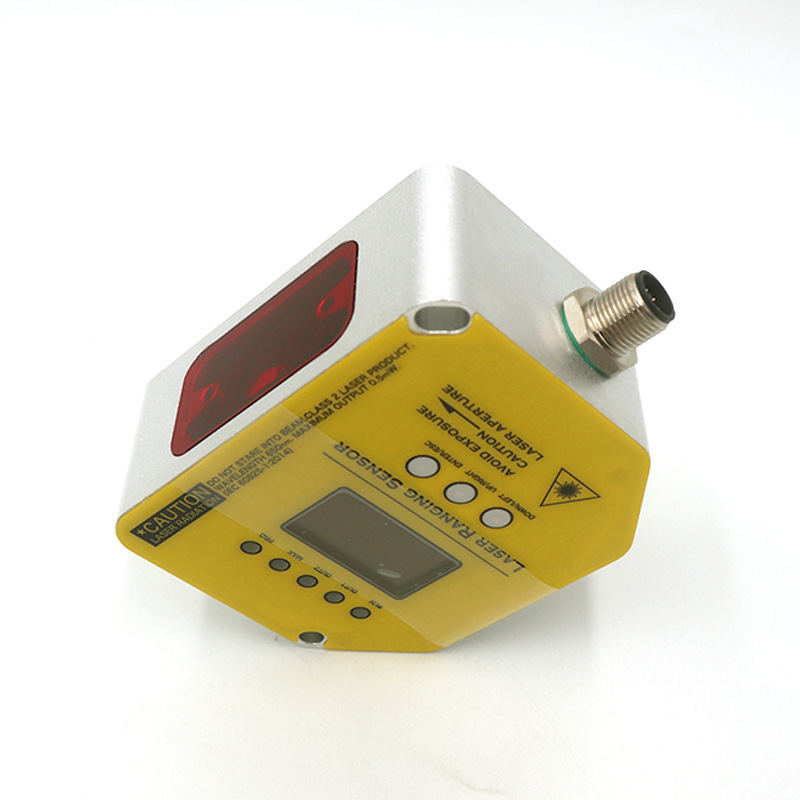

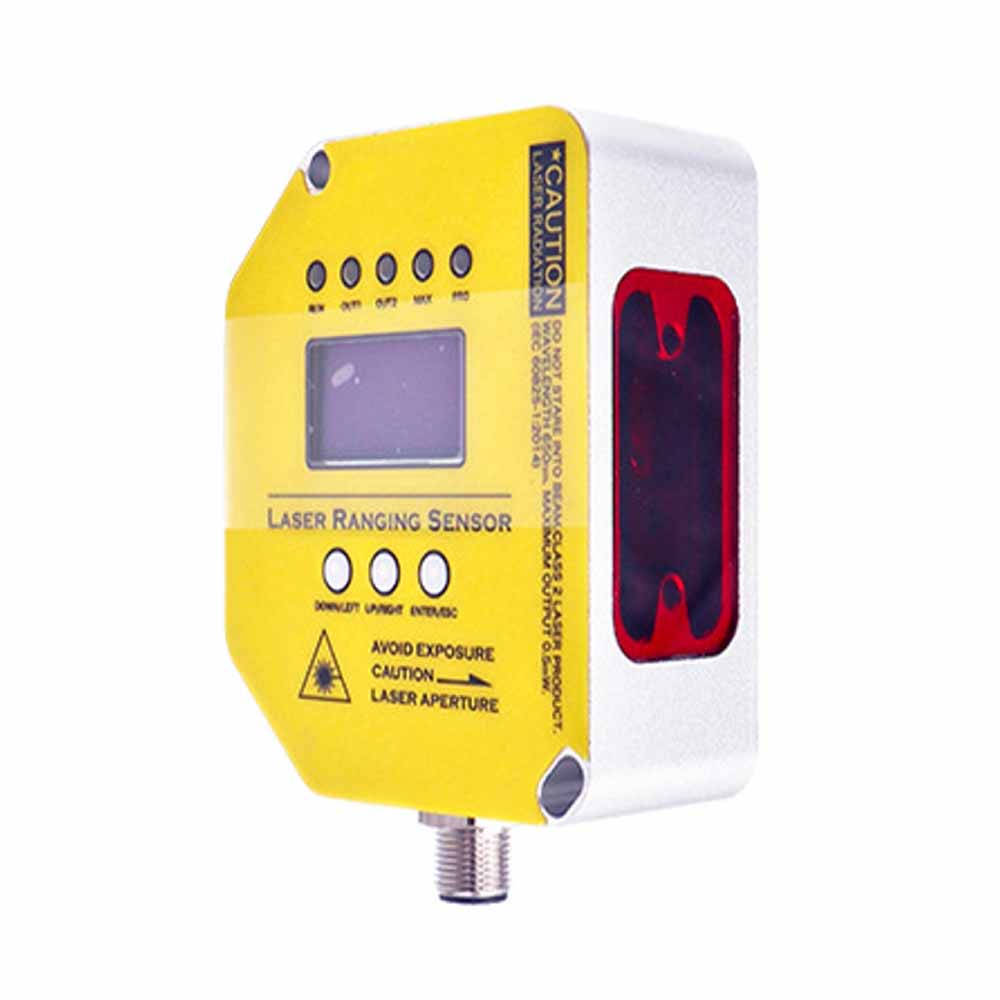

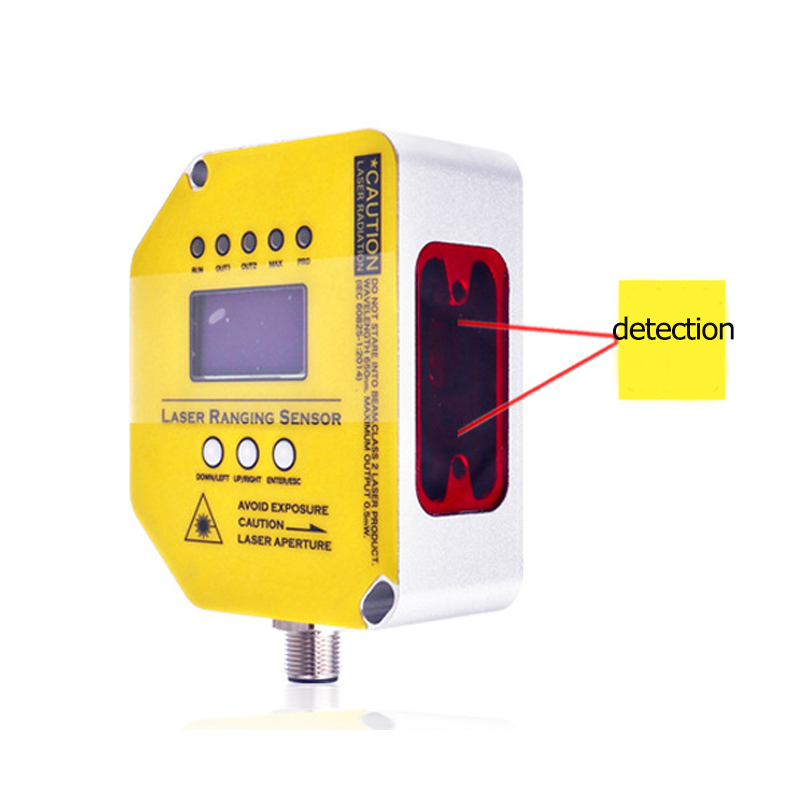

Photoelectric distance sensors

Description

Supply voltage		DC 10V-30V
Residual ripple		≤ 5 V
Power consumption		≤ 2.1W
Initialization time		≤ 250ms
Preheating time		≤ 10s
Shell material		Aluminum alloy/Plexiglass
Connection type		M12 waterproof connector, lead wire
Display		5-digit digital tube, 5 X LED
Weight		360g
nclosure protection class		IP65
Protection class		III
Measuring range		0-5M, 0-10M, 0-15M, 0-20M, 0-30M, 50M, 80M, 100M, 150M, 200M
Measuring objects		Natural objects
Resolution		1mm
Accuracy		1.5mm+D0.5%
Frequency		5HZ, 10Hz, 20HZ, 30Hz
Output time		≥ 4 ms
Light source		red laser
Laser Class		1 (IEC 60825-1:2014 EN 60825-1:2014)
Average laser service life (at 25°C):100000 h
Typical Photoelectric Dimensions Distance:15 mm x 15 mm (10 m)
output		digital output：PNP/NPN（Output current:≤100 mA)
		Analog output:Voltage/current output(0V-10V/4mA-20mA,≤300Ω)

Product FAQ

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Safety light curtains, safety laser scanners, safety switches, flow sensor and other sensors.

Why should you buy from us not from other suppliers?

As a professional personal care device supplier, we have rich experiences in product development & design, quality control & inspection.

What services can we provide?

Accepted Delivery Terms: FOB, EXW, DAP, CIF;

Accepted Payment Currency: USD, EUR, RMB, ETC.

Accepted Payment Type: T/T, Credit Card, PayPal, Western Union, Cash.

What is the MOQ?

5 pair order is also accepted.

Do you  customize logo, color, and label of product?

Of course, we support ODM service, can customize logo, color etc.

Do you have certification?

Factory pass ISO9001:2015, product with EU TYPE 4, CE, FCC, CCC etc. certification.

How long will you take once a order placing?

All product is mature, small order is finished in 5 work days; big order around 10-15 days.

Can your factory print our brand on the product?

Our factory can laser print customer’s logo on the product with the permission from customers. Customers need to provide us a logo usage authorization letter to allow us to print customer’s logo on the products.

Can you do customized safety light curtains?

Of course, We can make customized products for you.
