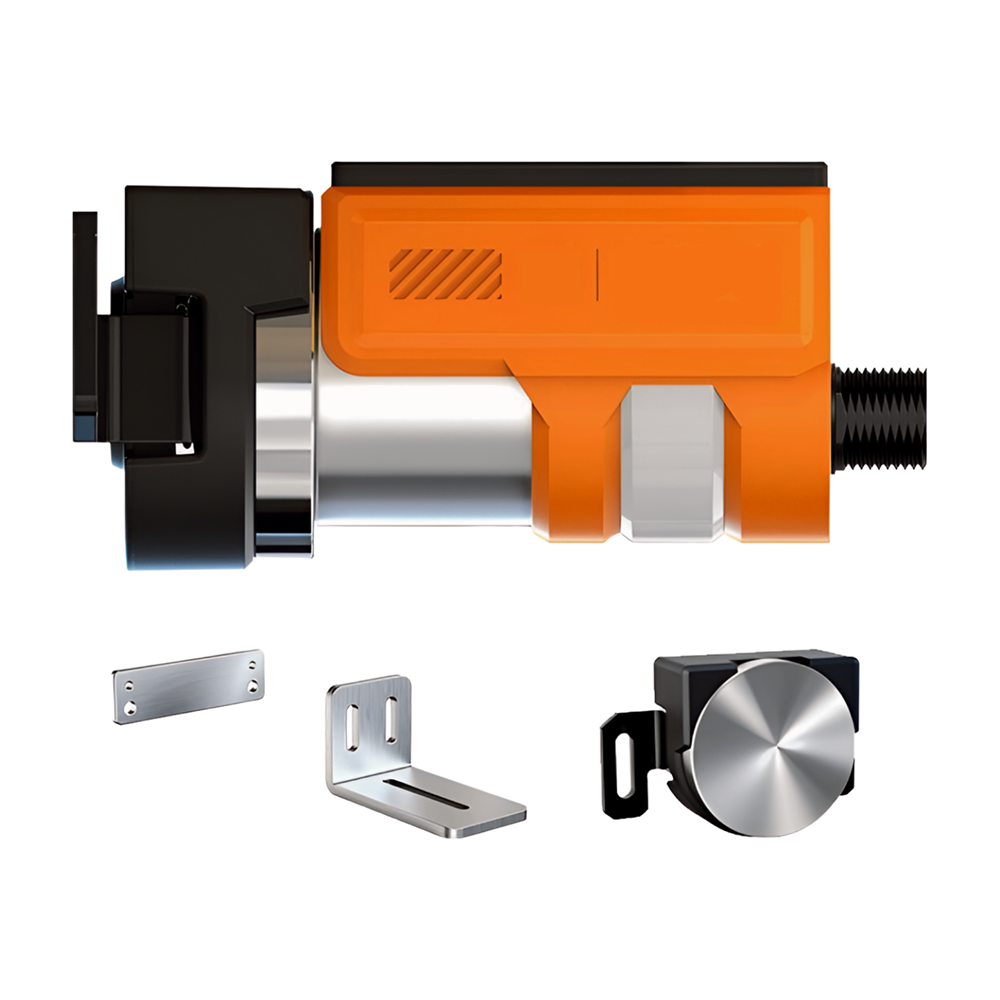

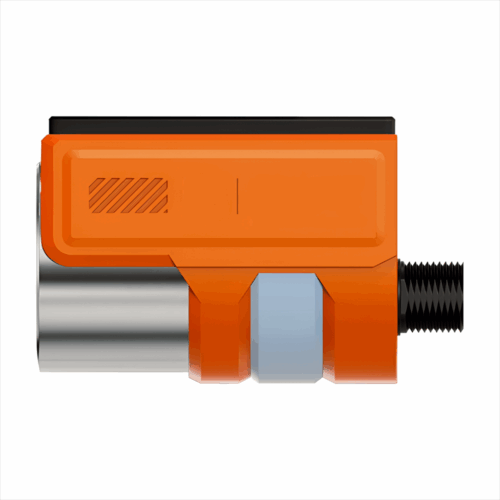

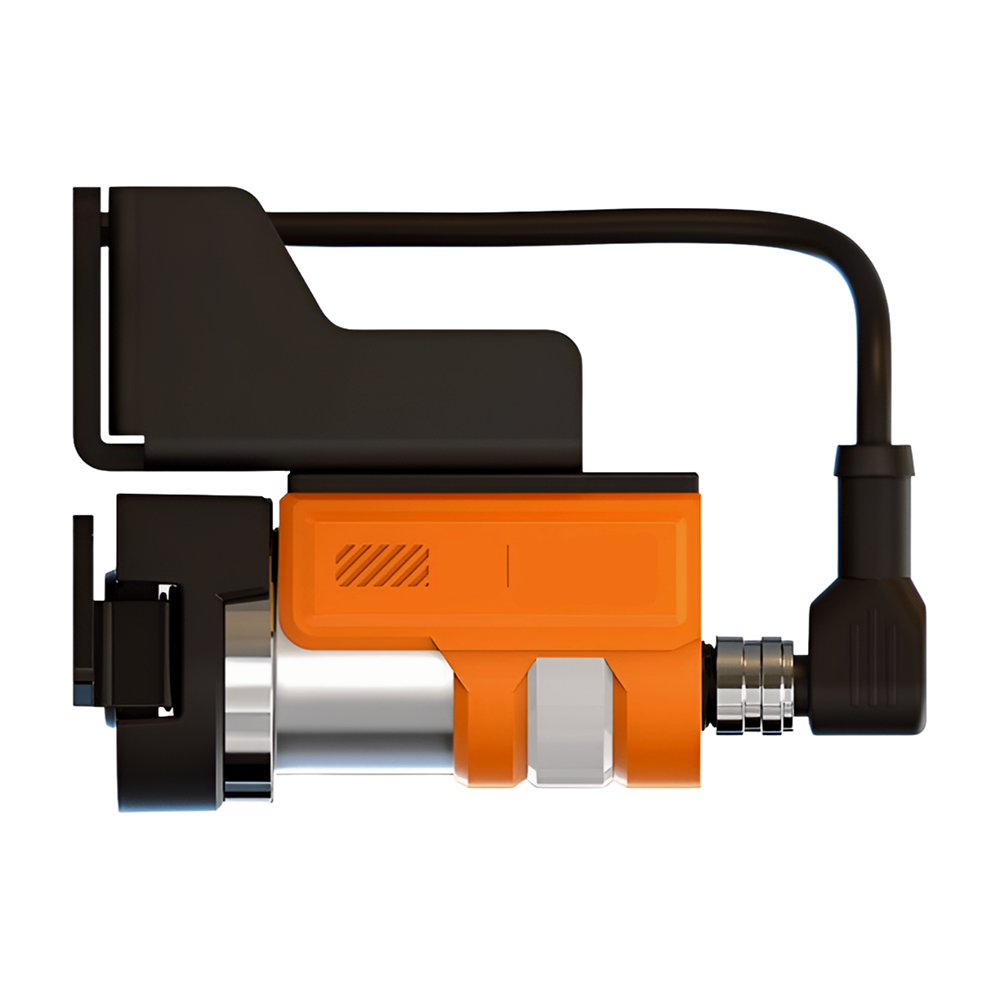

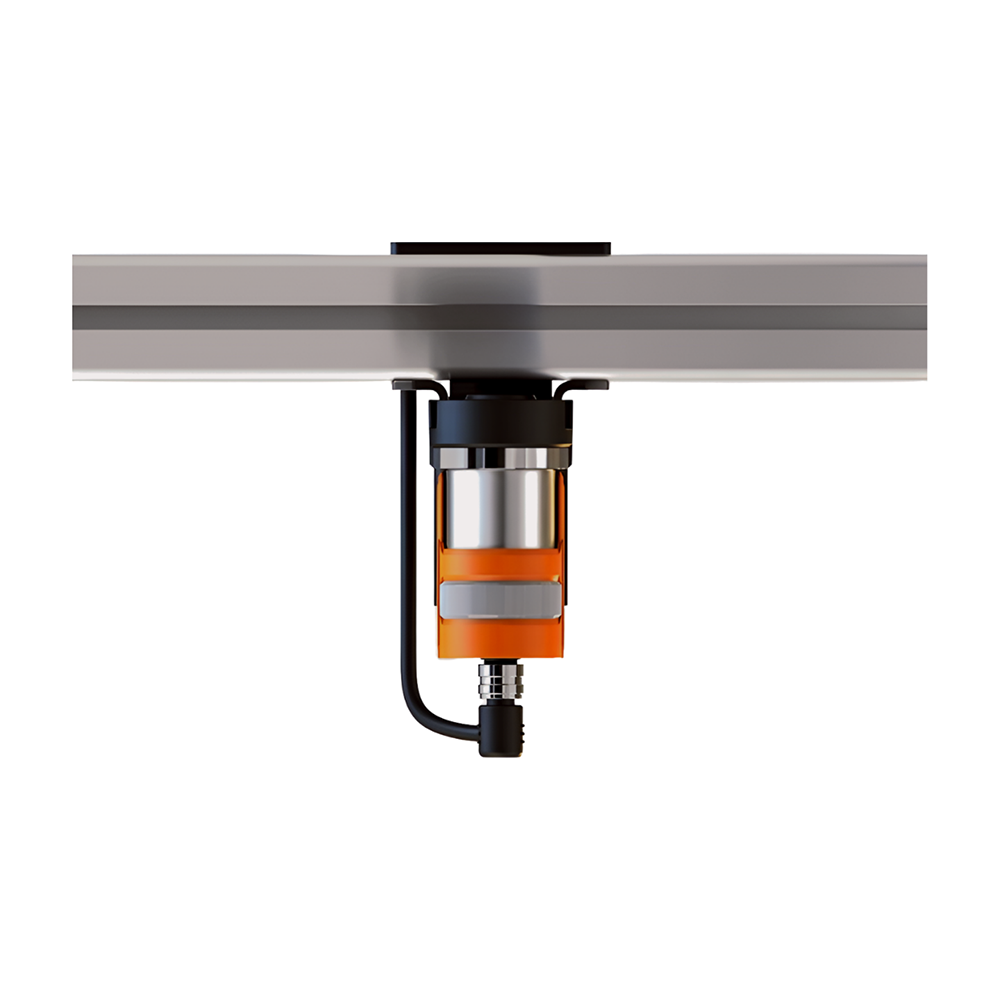

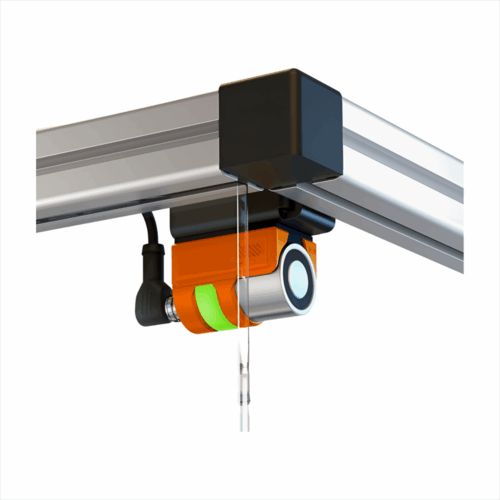

safety interlock switches-3
| Product | Safety Interlock Switch | ||
| Working distance |
Sao(Off-On) | 4mm | |
| Sar(On-Off) | 4mm | ||
| Response time |
Lock→release | 200ms | |
| Release→lock | 200ms | ||
| Detect→non-detect | 20ms+2ms*（cascading amount-1） | ||
| Non-detect →detect | 300ms+25ms*（cascading amount-1） | ||
| Control output |
Output method | Transistor output*2 | |
| Max. load current | 150mA | ||
| Residual voltage (during ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| OFF stage voltage | 2.0V max. (5m cable) 3V (31m cable) | ||
| Leakage current | 0.5mA max. | ||
| Max. capacitive load | 4uF | ||
| Load wiring resistance | 2.5Ω max. | ||
| AUX output (Not safety output) |
Output | Transistor | |
| Max. load current | 50mA | ||
| Residual voltage (when ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| External input (Short circuit current) |
Safety input | Approx. 1.5mA x 2 | |
| Lock control input (OSSD switching input) |
Approx. 5mA | ||
| Reset/ EDM input | Approx. 5mA (only for advanced function) | ||
| EDM option input | Approx. 2.5mA (only for advanced function) | ||
| Power | Power supply | 24VDC±10% (ripple P-P 10% Class 2) | |
| Power consumption | ＜5W | ||
| Circuit protection | Reverse current protection, short-circuit protection and surge protection for each output |
||
| Environmental resistance |
Enclosure rating | IP67 | |
| Ambient temperature | -10℃~+55℃（No freezing） | ||
| Storage temperature | -25℃~+70℃（No freezing） | ||
| Operating relative humidity | 5% to 95%RH | ||
| Storage relative humidity | 5% to 95%RH | ||
| Vibration resistance | 10 to 55Hz, double amplitude 2.0mm, 5 minutes in each of tine X, Y, and Z direction (IEC60947-5-3) |
||
| Shock resistance | 30G in X, Y, Z directions 6 times each axis (IEC60947-5-3) | ||
| Applicable standards (safety) | EN ISO13849-1:2015（PL e, Category 4）, IEC60947-5-3, EN60947-5-3 | ||
