| Product |

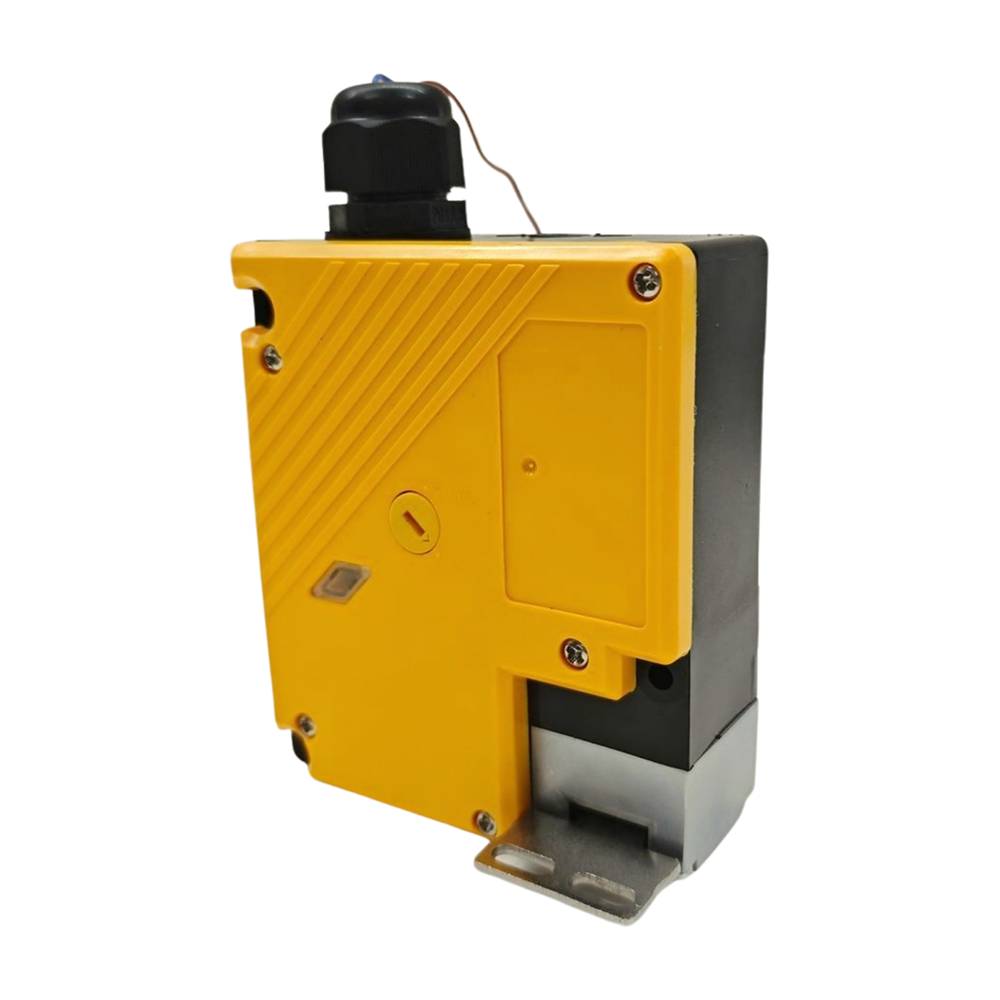

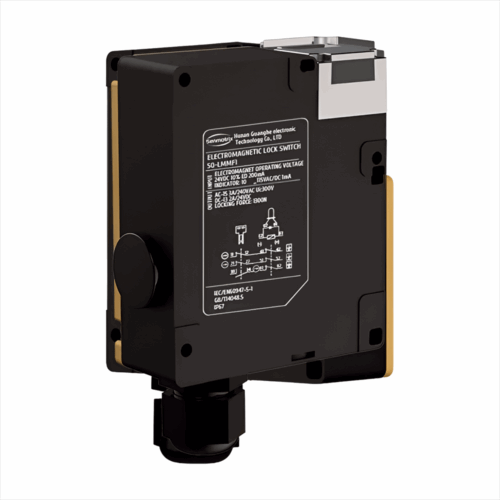

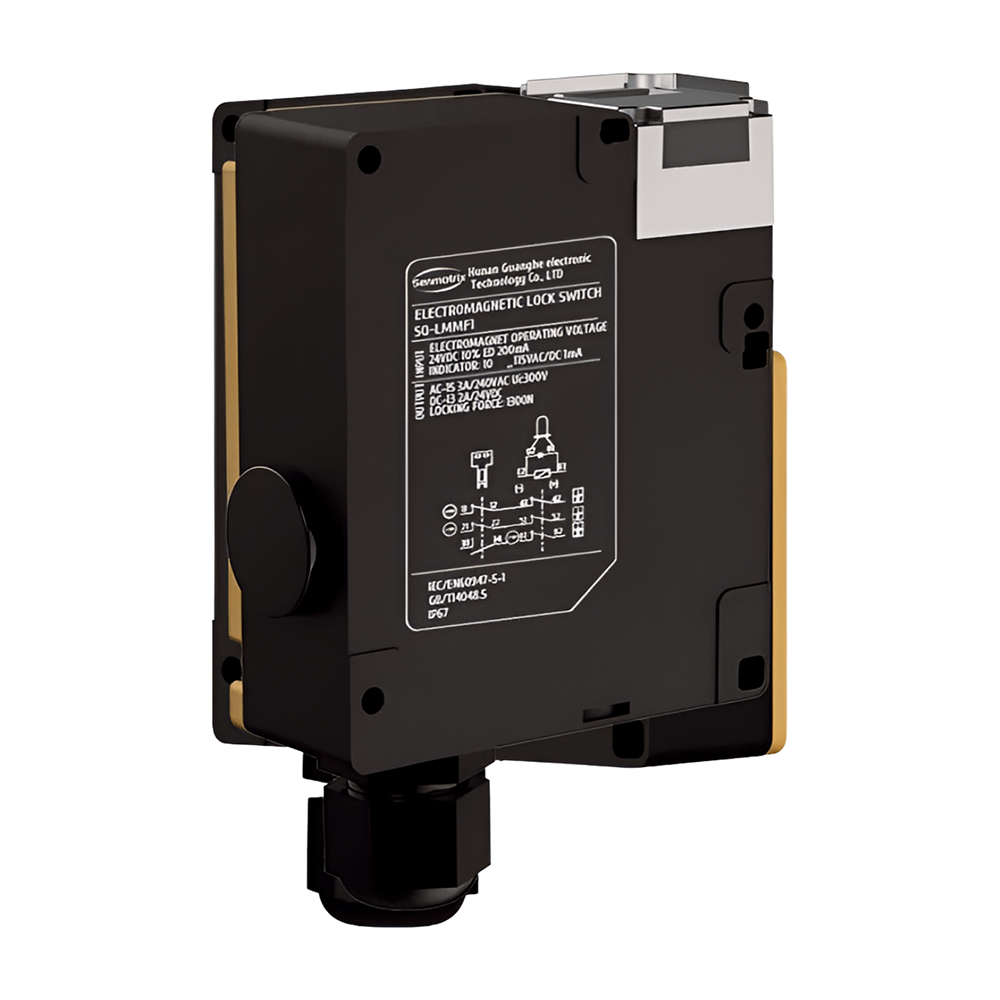

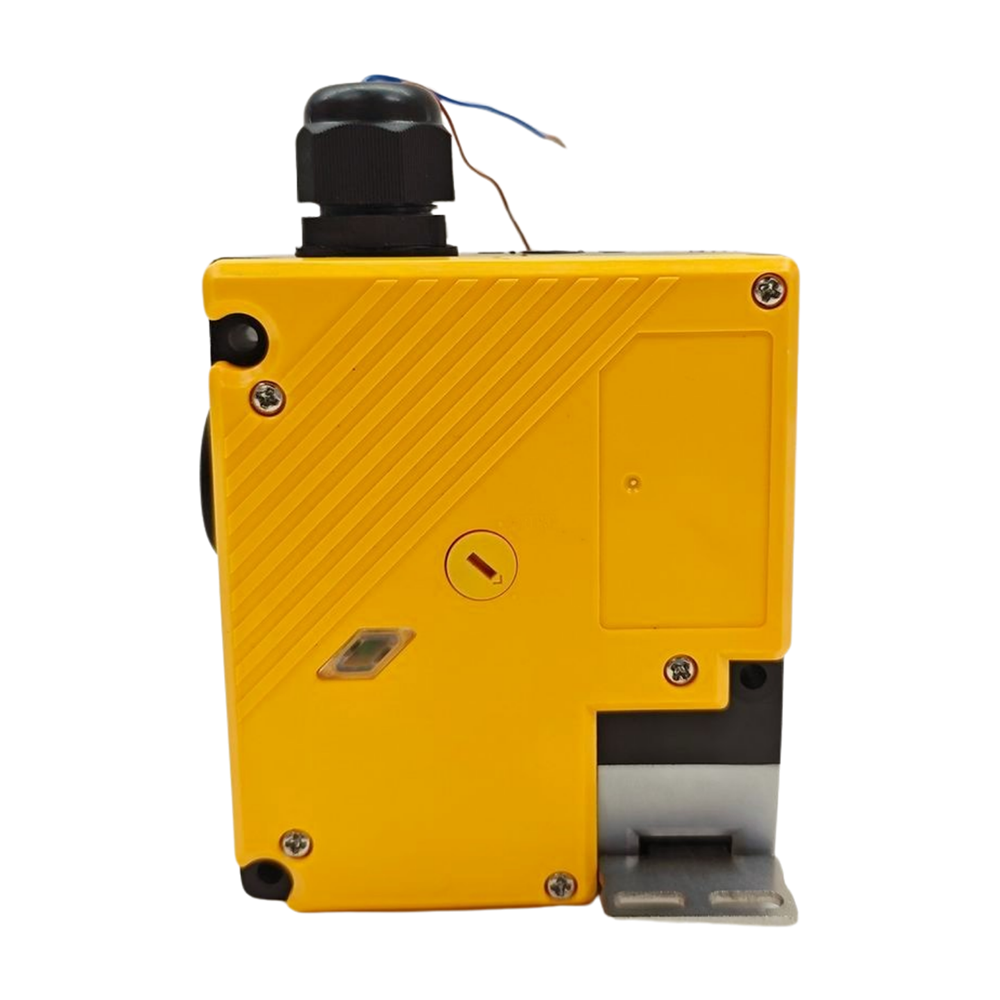

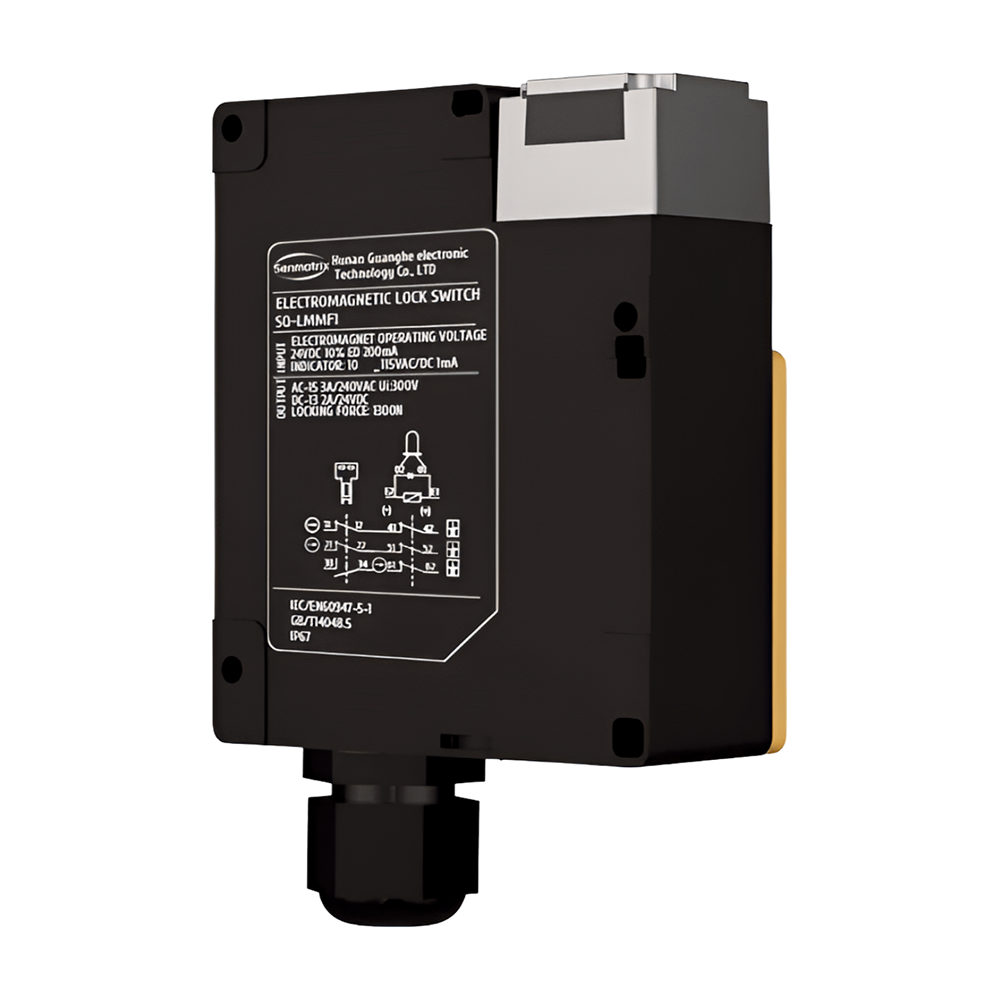

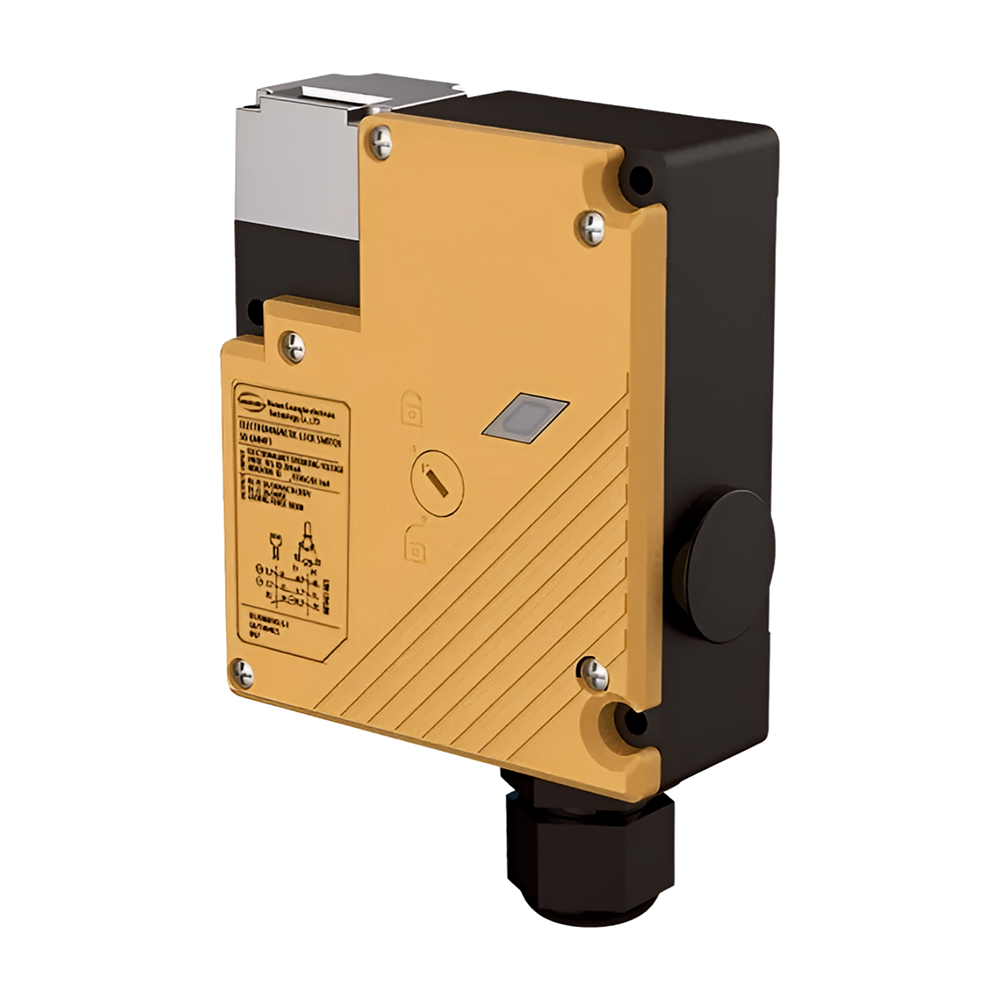

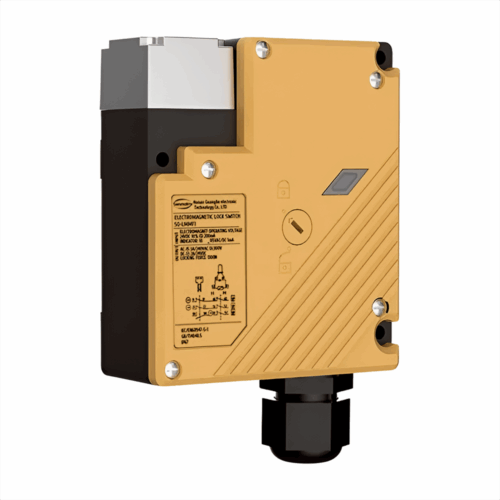

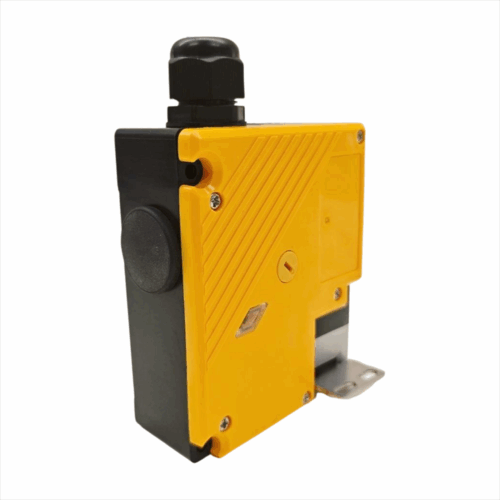

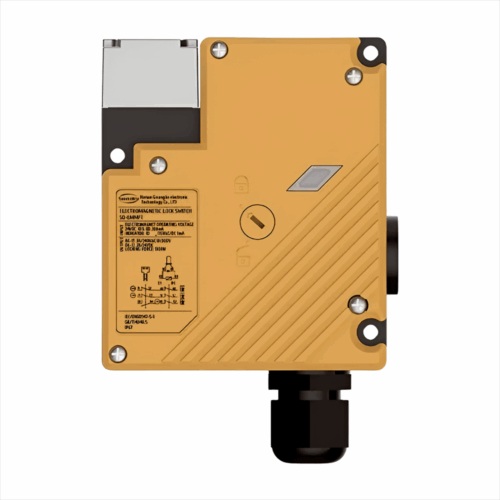

Safety Door Switch ER-K6 |
| Electromagnetic tube |
|
| Rated operating voltage |
DC24V |
| Power |
4.8W |
| Rated current |
Approximate 200mA |
| Insulation |
Class B (130°C) |
| Protection rate |
IP67 |
| LED indicator |
|
| Rated operating voltage |
DC24V |
| Rated current |
Approximate 1mA |
| Luminous color (LED) |
Green |
| Electrical parameters |
|
| Contact resistance |
< 200 mΩ |
| Nominal discharge current (lth) |
10A |
| Rated insulation voltage (Ui) |
300V |
| Anti-electric shock level |
Class II (Dual Insulation) |
| Pulse withstand voltage (EN60947-5-1) |
2.5KV |
| Insulation resistance |
100MΩ above |
| Short-circuit protection |
10A, 250V requires a quick-break fuse |
| Vibration resistance |
10-55Hz double amplitude 1.5mm |
| Impact resistance |
Durability1000m/s2 |
| Conditional short-circuit current |
100A (EN 60947-5-1) |
| Space of contact |
2×2mmabove |
| Action characteristic |
|
| Direct opening force |
Min. 60N |
| Direct opening travel |
Over 10mm |
| Allowed operating speed |
0.1 m ~ 0.5m/s |
| Allowed operating frequency |
Maximum 30 times/minutes |
| Holding force |
1300N |
| Environment |
|
| Operating environment |
3 (EN60947-5-1) |
| Operating temperature |
-10℃~+55℃ (no freezing) |
| Operating humidity |
< 95%RH |
