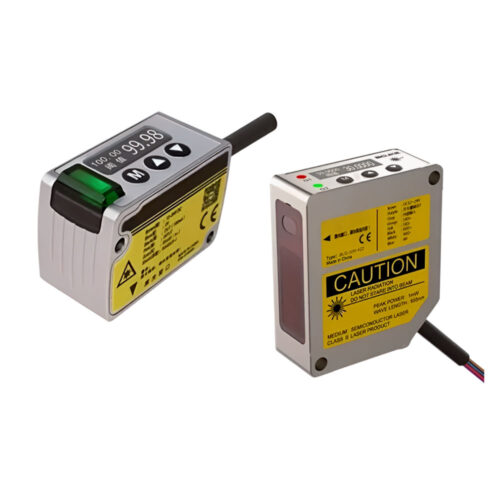

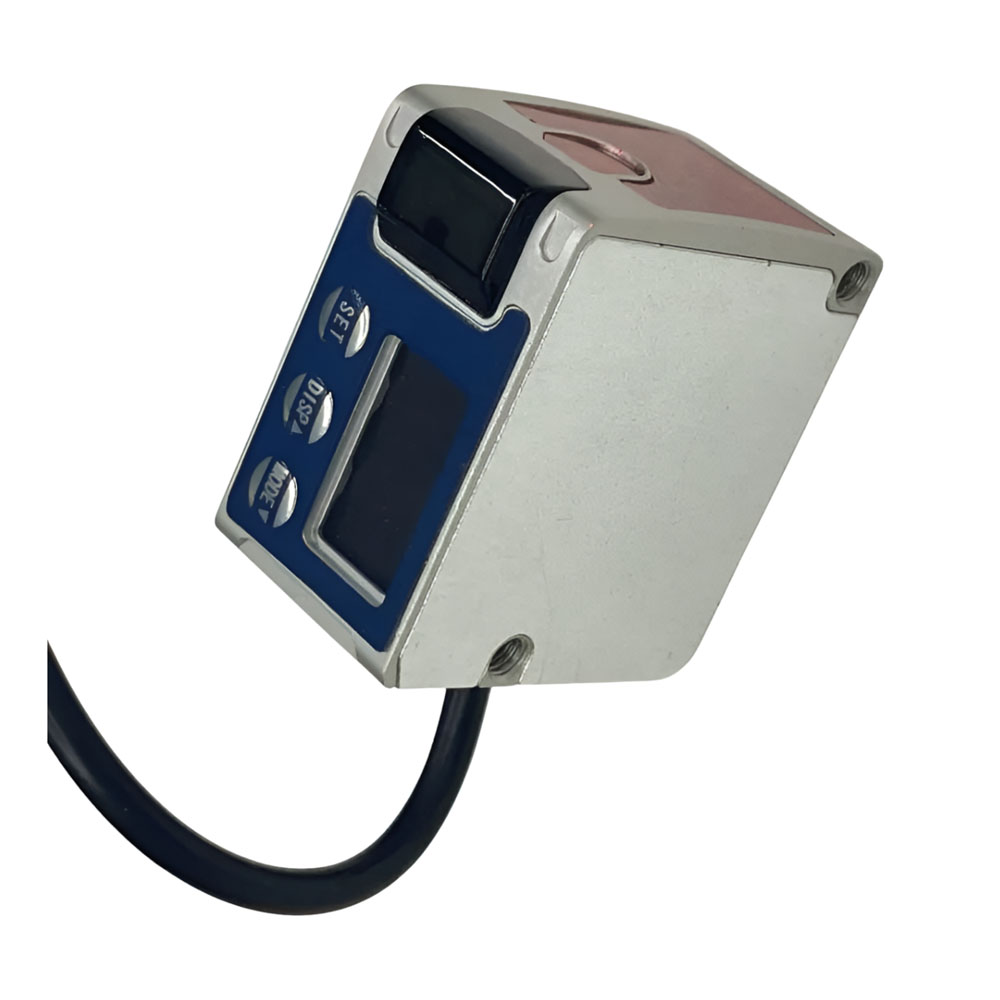

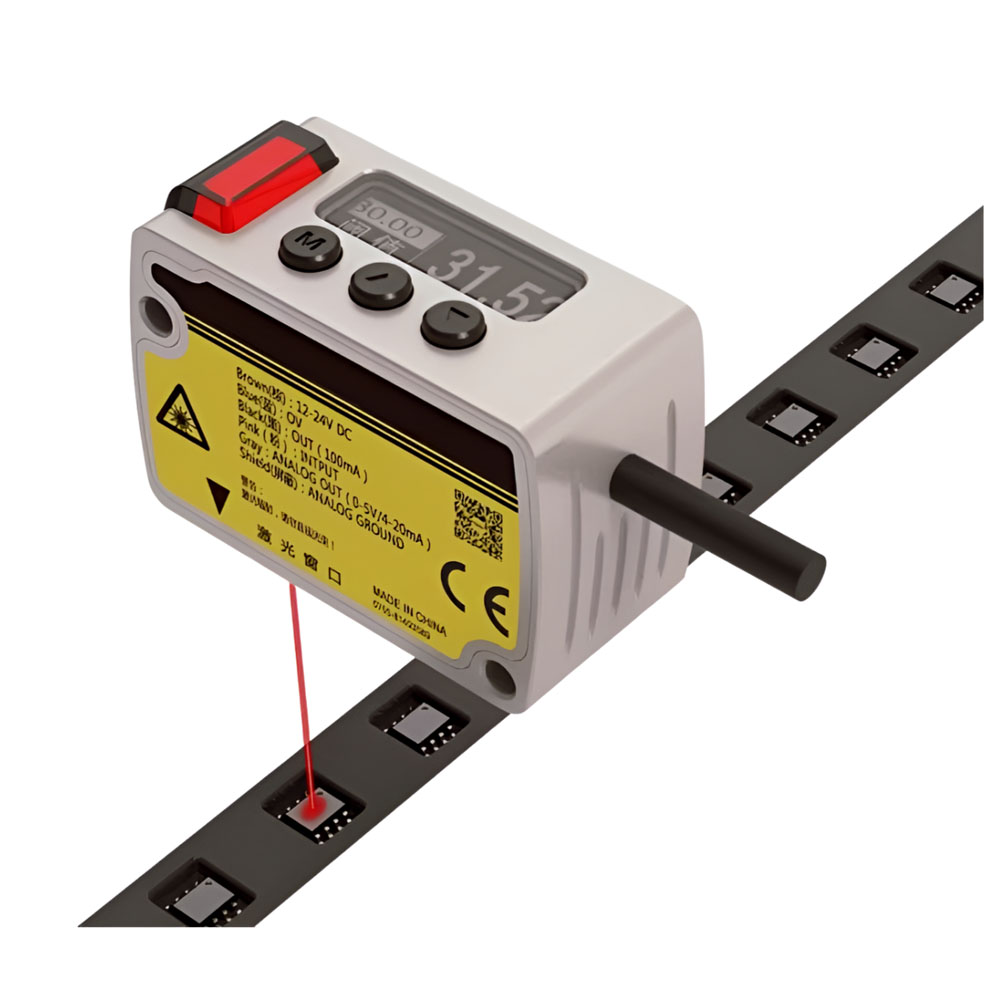

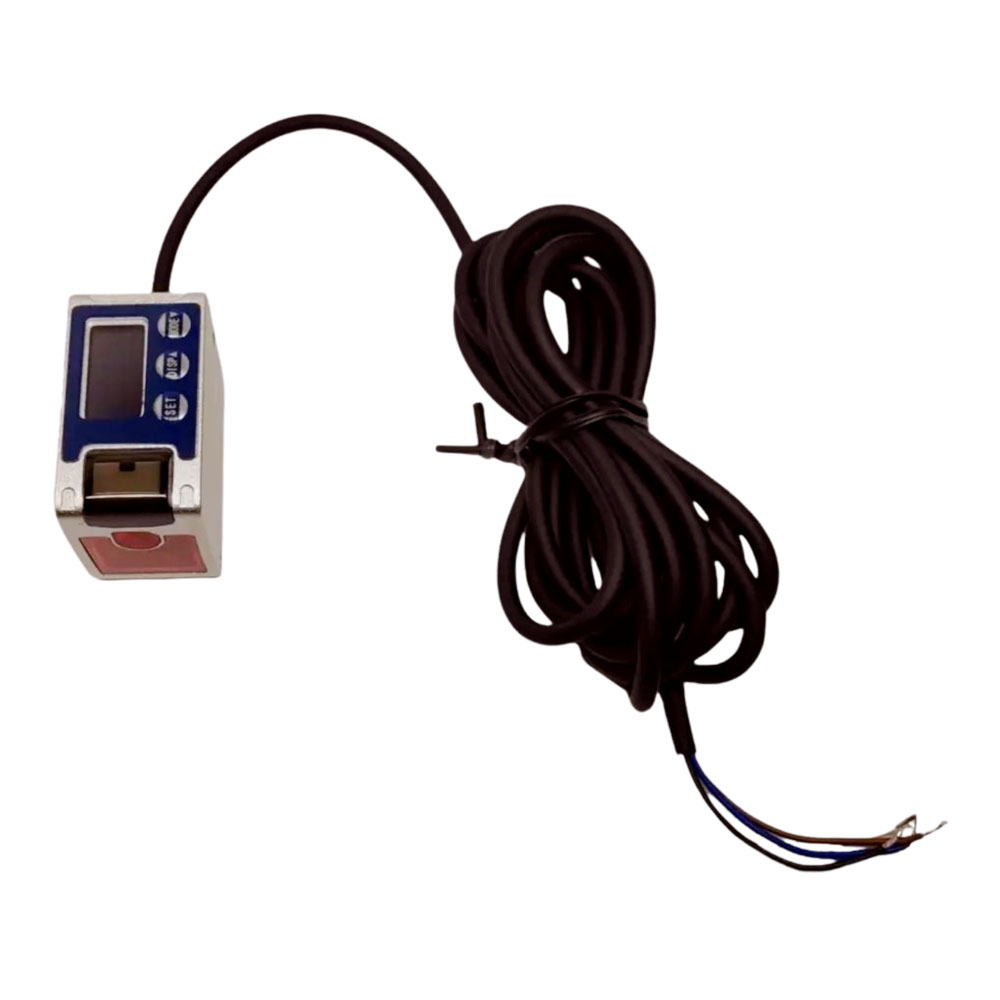

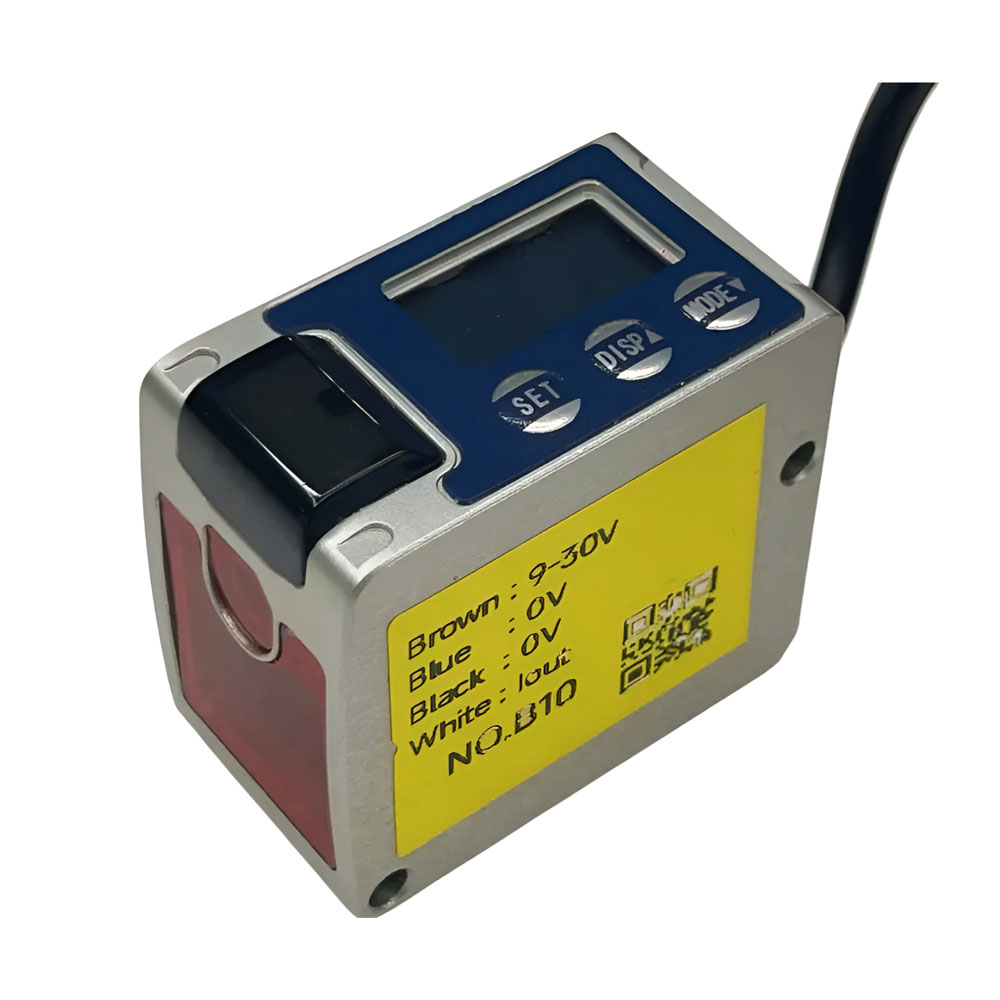

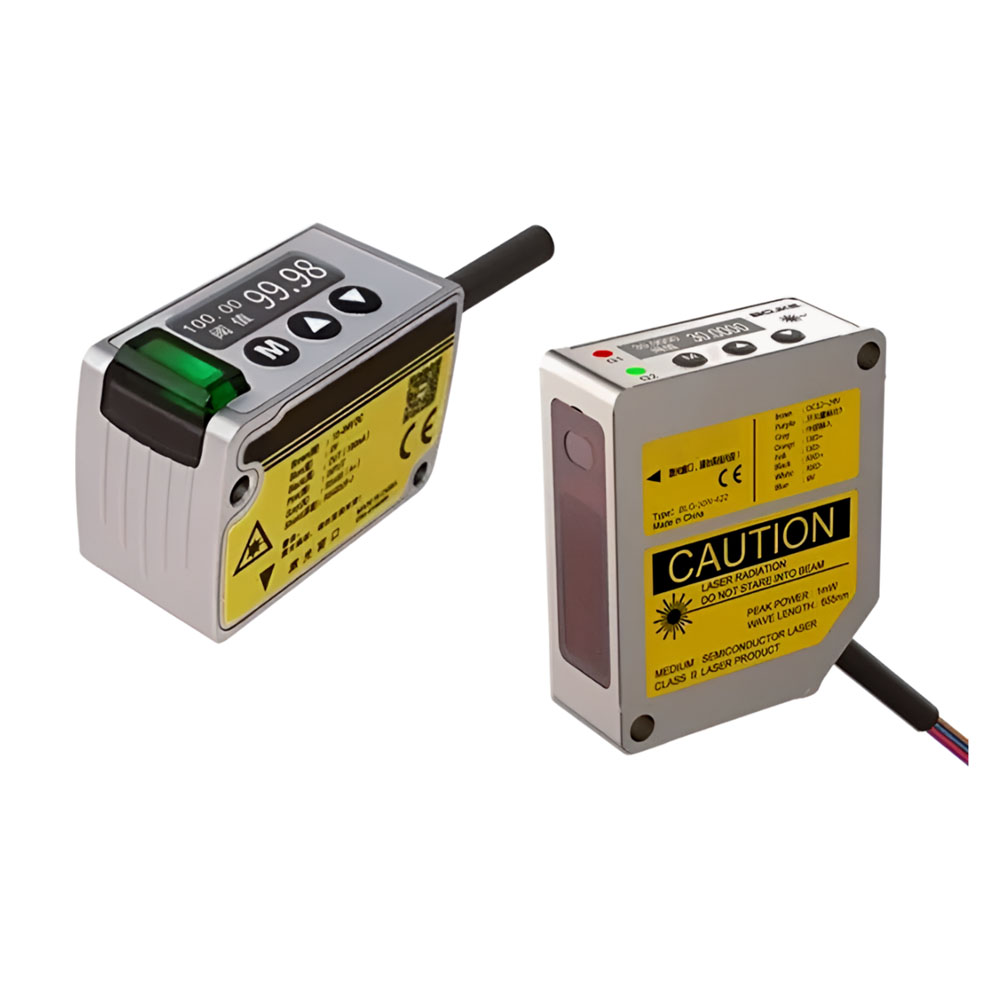

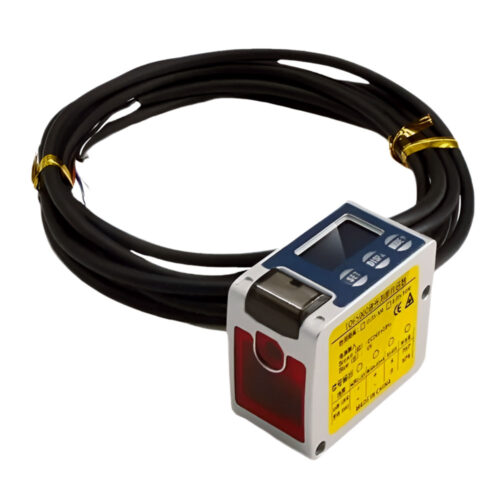

| Laser Displacement Reflection Sensor |
| type: |
TOF1500-2MN |
TOF30003MNP |
TOF5000-5M-I |
| TOF3000-3M-AI |
TOF5000-5M-U |
| TOF3000-3M-AU |
TOF5000-5M-48 |
| TOF5000-5M-NP |
|
| Output Mode: |
Three-wire normally open normally closed NPN |
Three-wire normally open normally closed PNP |
Four-wire N/P normally open normally closed |
| Detection distance: |
0.03-2m |
0.05-3m |
0.03-5m |
| Supply voltage: |
12V ~ 24VDC ± 10% Ripple P-P10 % |
| Current consumption: |
40mA or less (power supply voltage 24V DC), |
| 60mA or less (power supply voltage 12V DC) |
| Output Type: |
NPN/PNP |
| Mounting Type |
Fixed installation |
| Description |
Laser distance sensor |
| Theory |
Laser Distance Measurement |
| Output |
PNP/NPN/TTL serial port |
| Viewing Angle |
3° – 30° |
| Response Time |
1 ms |
| Voltage – Supply |
12-24V DC±10% |
| Wavelength |
655nm |
| active area |
0-30m |
| Dark Count Rate |
Ranging frequency 1000hz |
| Discrete Output Type |
DPL-030 |
| Measuring Distance |
30mm |
| Measuring Range |
±5mm |
| Repeat Precision |
10μm |
| Light Source |
Red Semiconductor Laser, Wavelength655nm |
| Response Time |
1ms |
| Discrete Output |
NPN/PNP Open Collector Switching |
| Protection Rating |
IP67 |
| Operating Temperature |
-10℃-50℃ |
| Vibration Resistance |
10-55Hz |
| Single package size |
20X30X35 cm |
