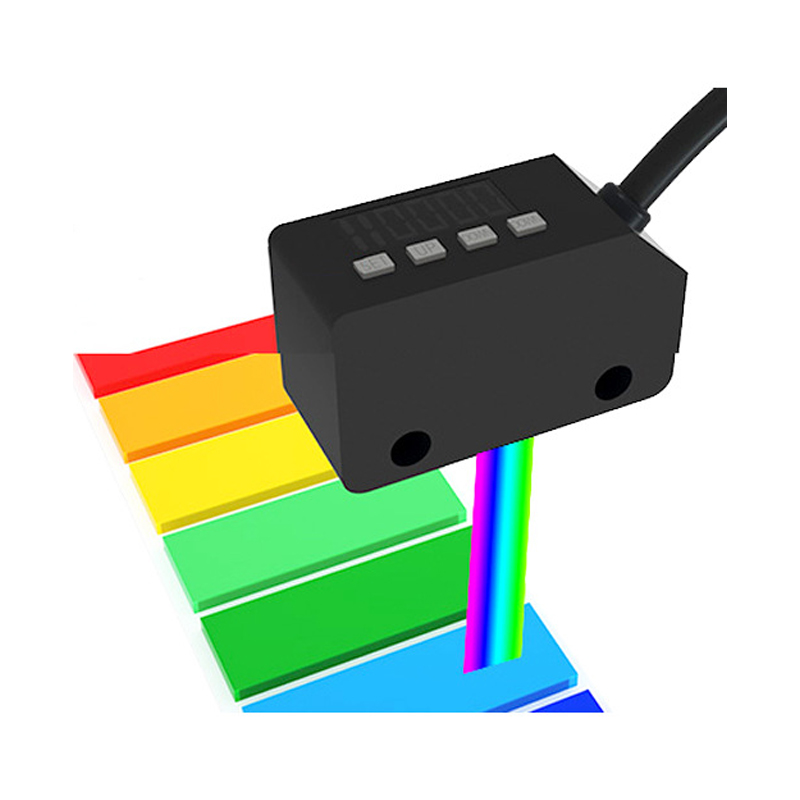

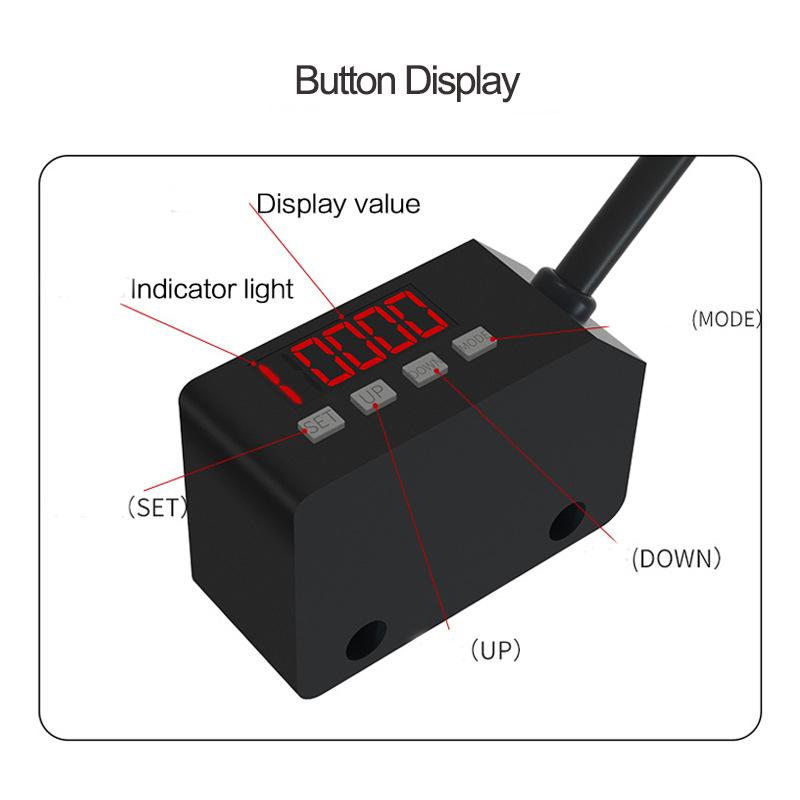

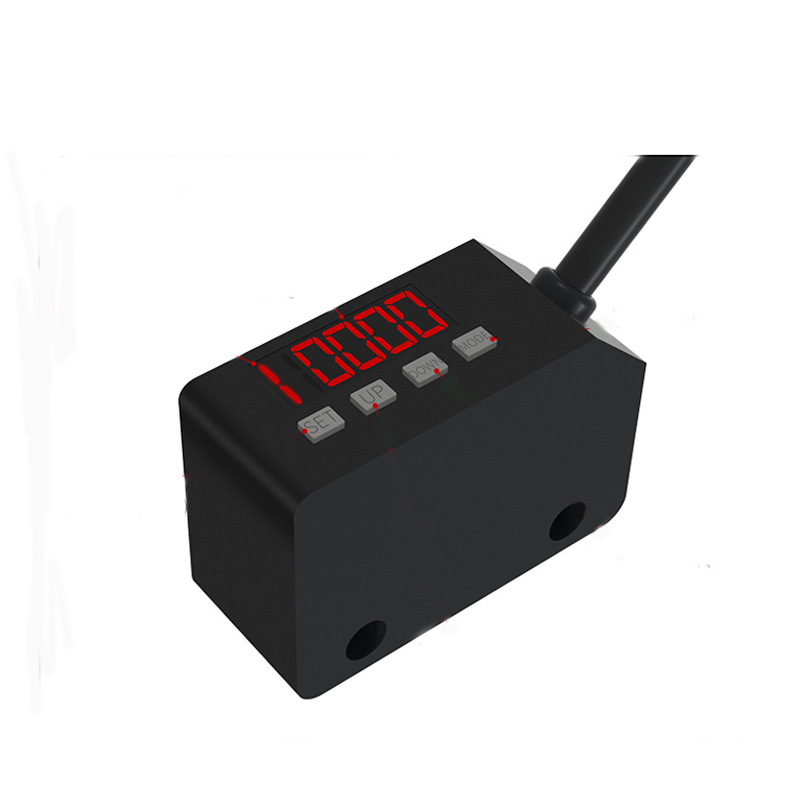

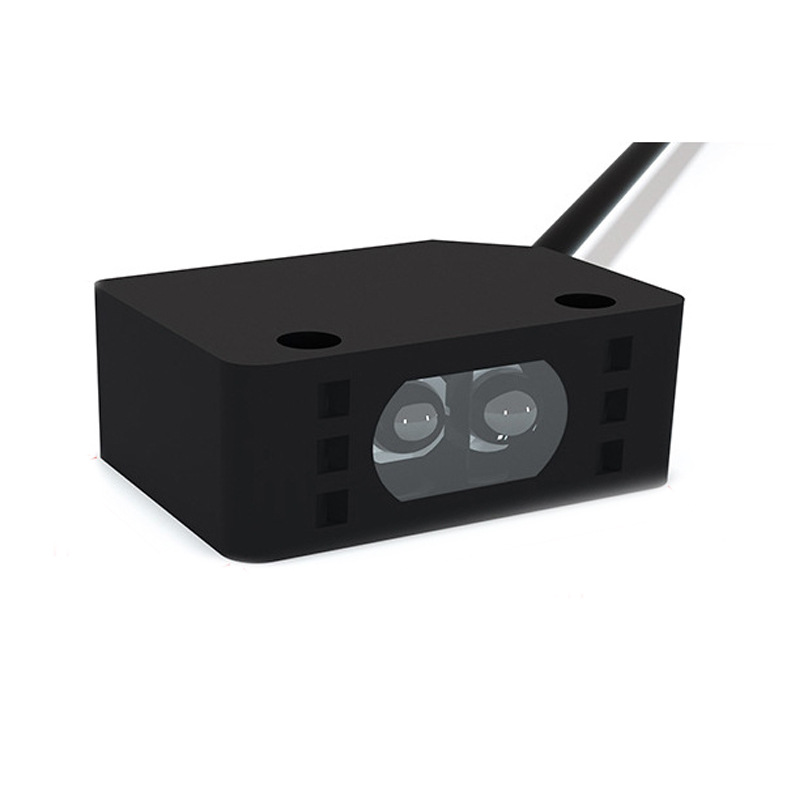

The TCS Color Sensor precisely identifies product colors, detecting even tiny variations. It features a digital display, a fast 1ms response time, and supports up to 8 channels for multi-color sorting. Its rugged IP67 rating ensures reliable performance in industrial environments.
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.
| Use | Color Mark Sensor |
| Mounting Type | Auto positioning, color recognition, etc. |
| Description | Color Mark Sensor |
| Type | Photoelectric Sensor |
| Features | Color Sensor |
| Output | PNP/NPN NO/NC |
| Consumption Current | <35mA |
| Response Time | 50US |
| Voltage – Supply | DC12-24V |
| Wavelength | LED three-color light |
| Output mode | NPN output |
| Type | one output port, wire lead-out type |
| Light source | 4-element light-emitting diode, LED three-color light |
| Ambient temperature | -10+55℃, no freezing |
| Ambient Humidity | 35%~88%RH |
| Output selection | LIGHT-ON/DARK-ON (switch selection) |
| Sensing distance | 18±2mm |
| Power supply | 12 to 24VDC ±10% |

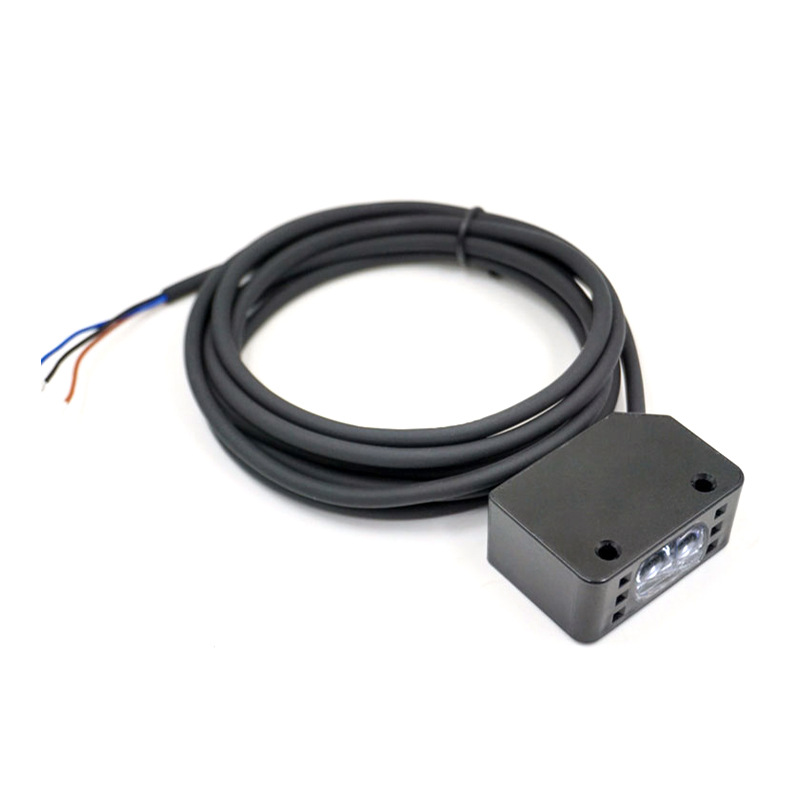

| Connection | 2m Cable |
| Power consumption | Standard mode: maximum 300MW Maximum voltage: 24V |
| Vibration resistance | 10 to 55HZ |
