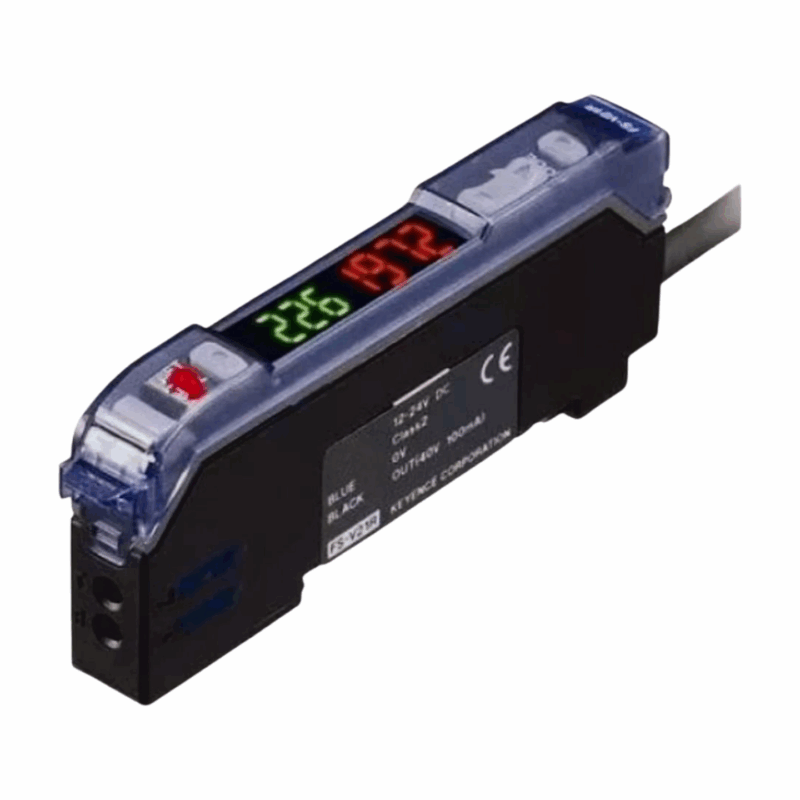

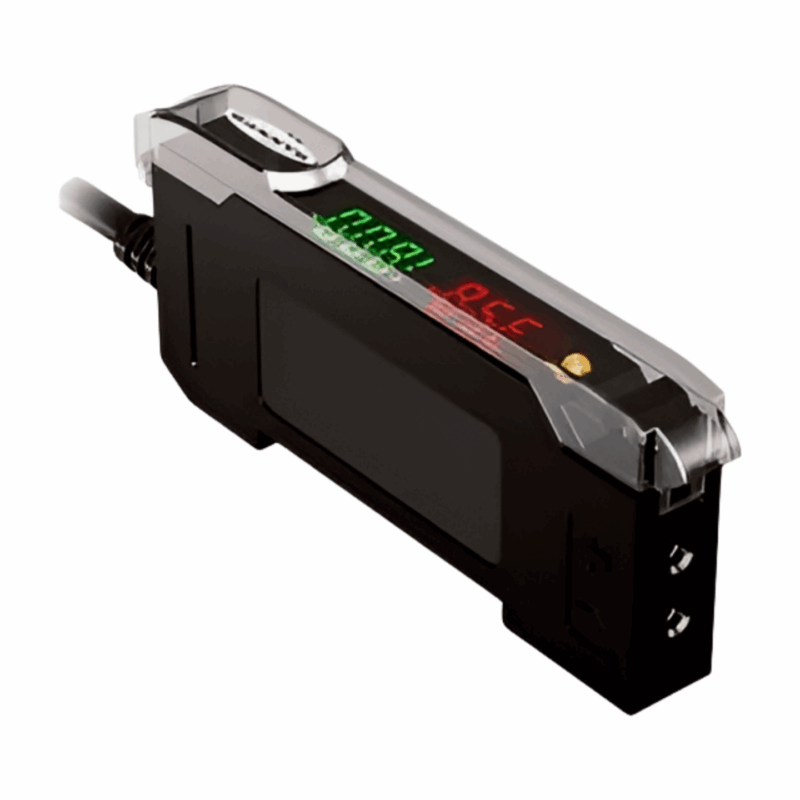

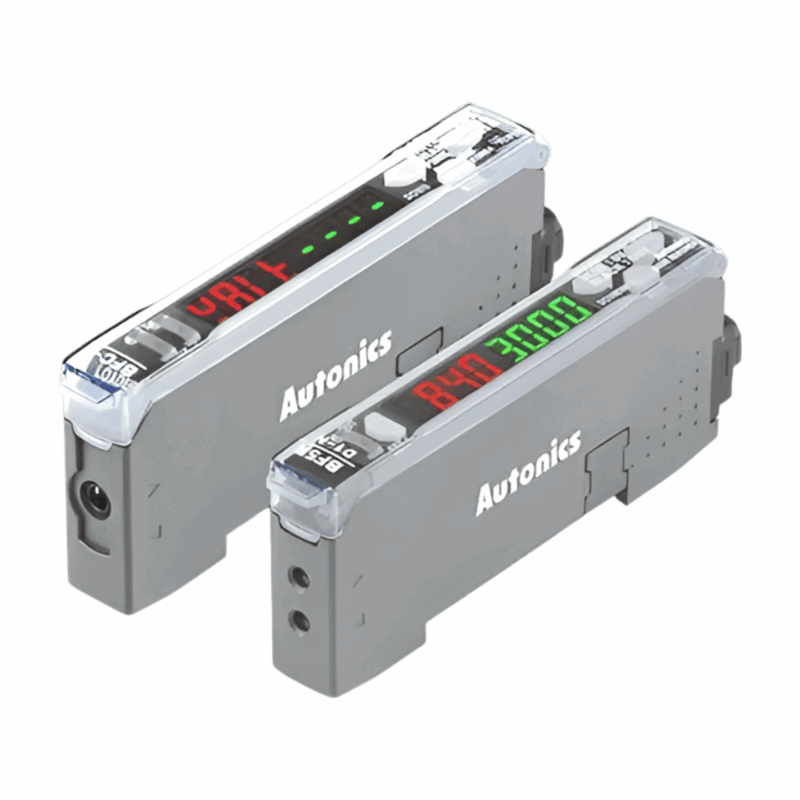

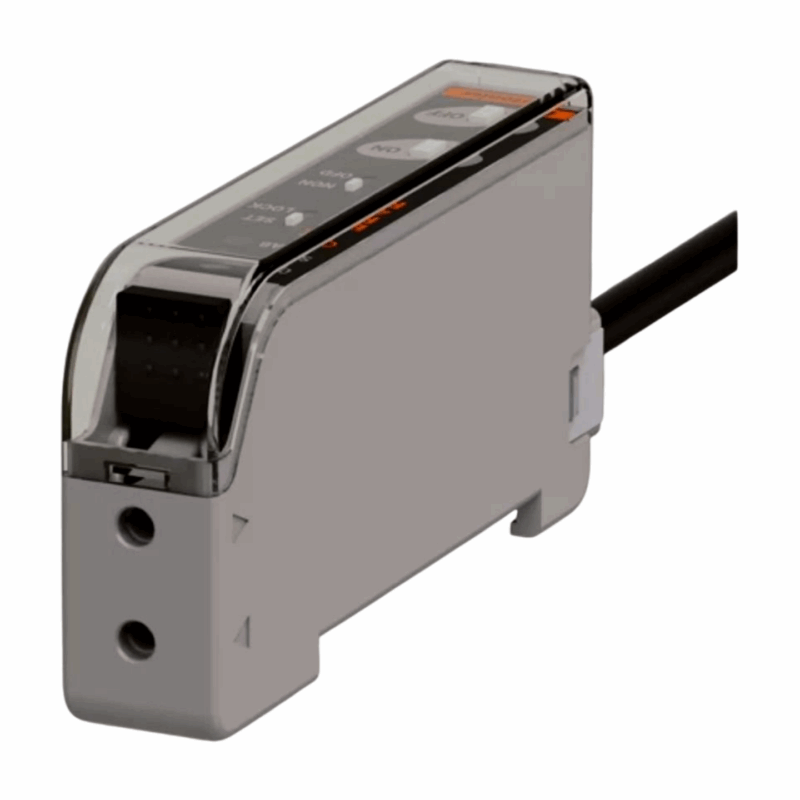

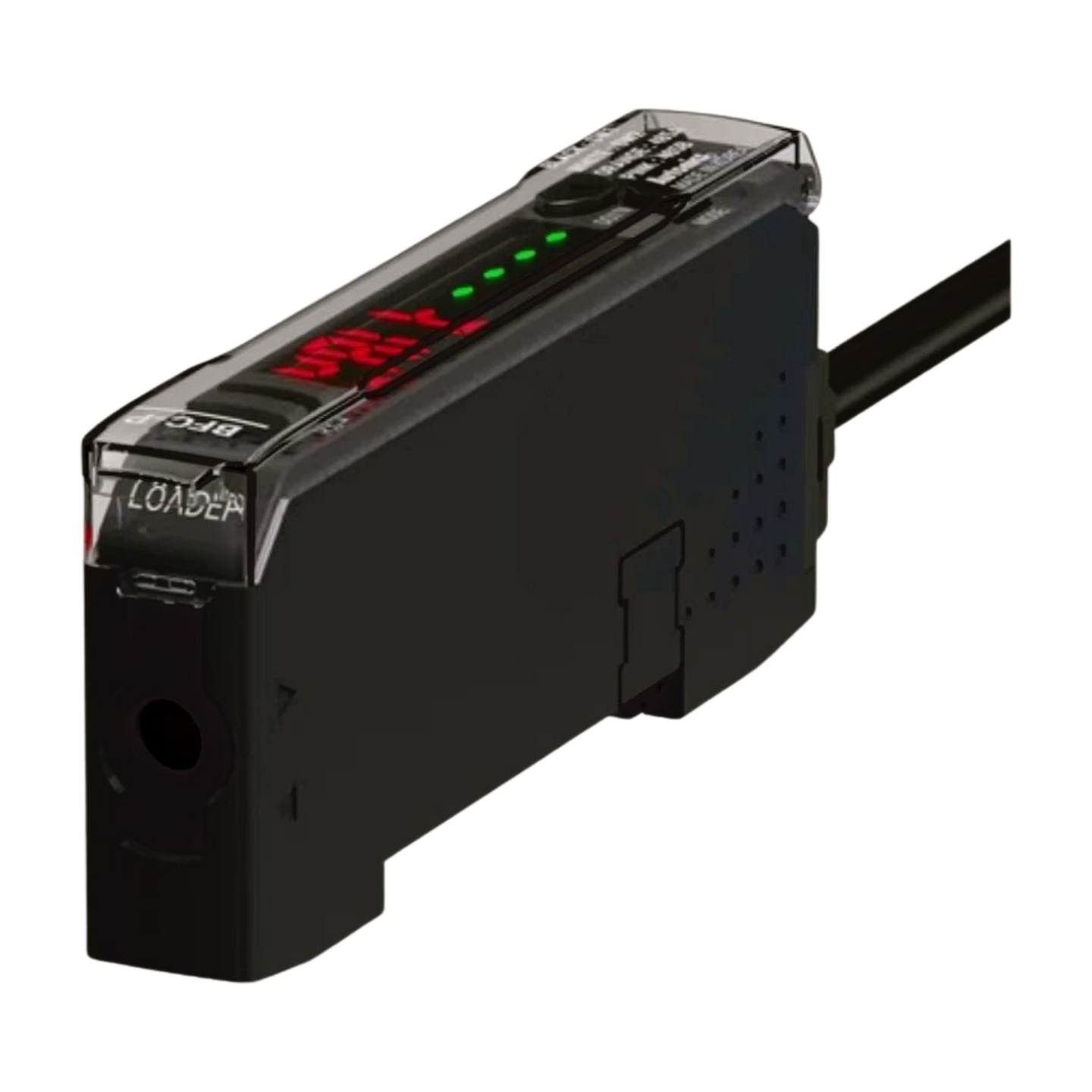

This page features a comprehensive range of fiber optic sensors designed for detecting tiny or hard-to-reach objects. These sensors use flexible fiber optic cables to transmit light, making them ideal for confined spaces, high-temperature environments, and applications requiring high precision and immunity to electrical interference.
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.
| Description | Fiber optics sensor |
| Mounting Type | Can guide installation |
| Type | Fiber optics sensor |
| Features | Testing products |
| Model | NPN PNP |
| light source | 4-element LED Body |
| Voltage – Supply | DC 12~24V ±10% |
| Connection | 1 output port, wire lead type, wire length 2m |
| Light source | Red LED (660nm) |
| Response frequency | 32Hz~20000Hz |
| Reaction time | P-0 25us P-l 50us P-2 200μs P-3 400 us |
| Dielectric strength | 1000V AC at 50/60Hz for 1 min |
| Output Selection | LIGHT-ON/DARK-ON (short press MODE to select) |
| Display Indicator | Operation indicator: Red LED, dual digital monitor |
| Detection method | Light intensity |
| Material | Polycarbonate |
