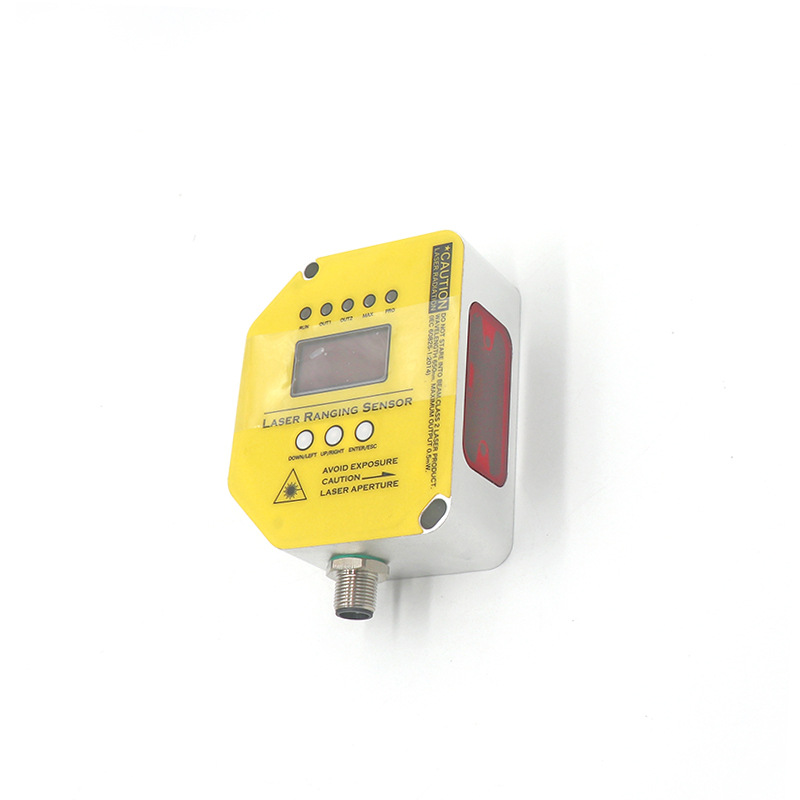

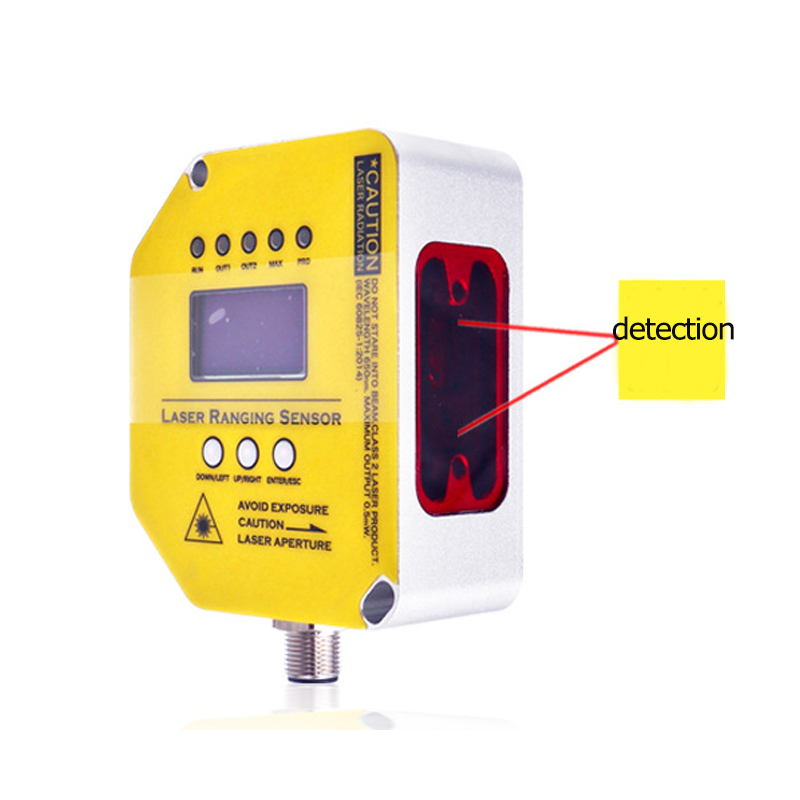

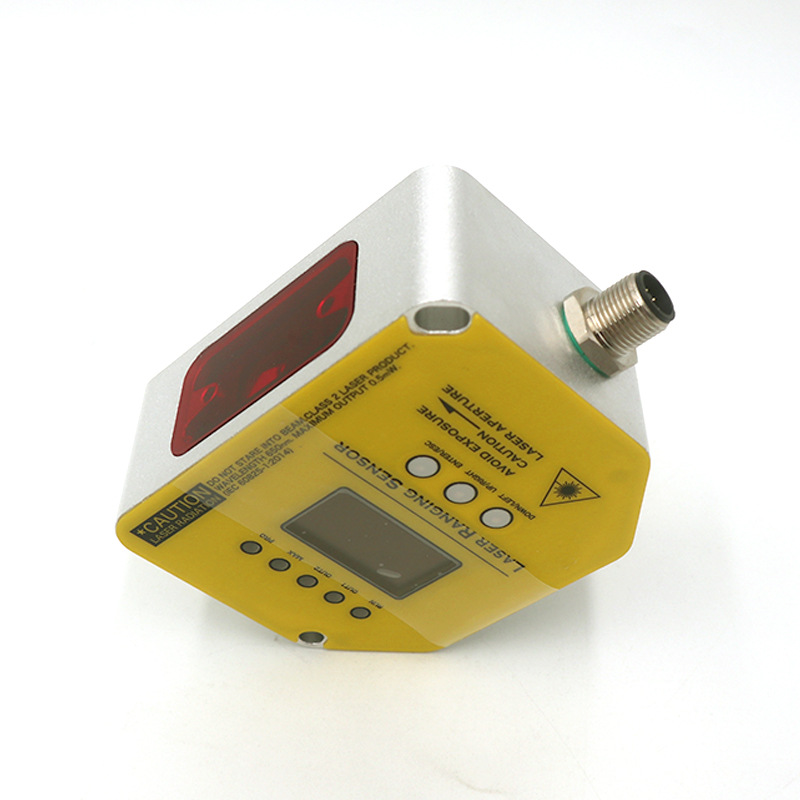

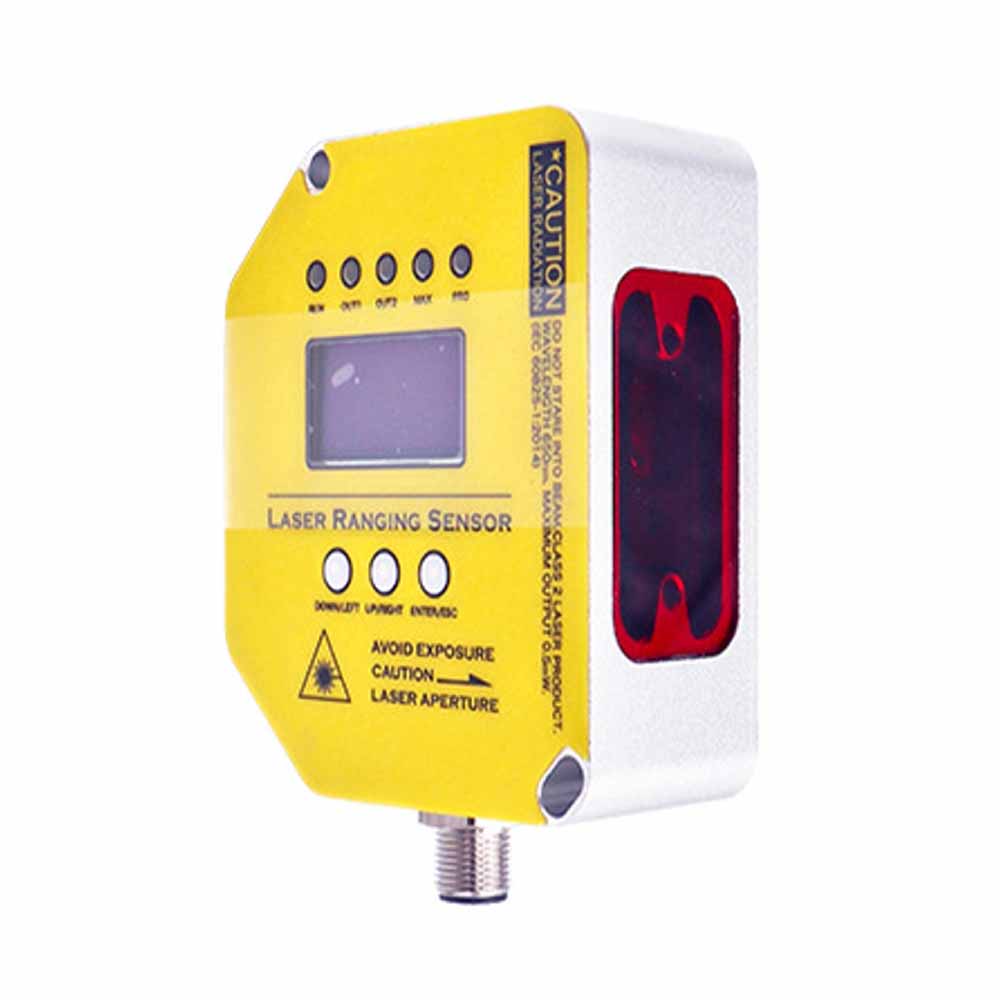

The Light Curtains’ photoelectric distance sensors offer precise, non-contact measurement for industrial automation. Using infrared laser technology, they provide high accuracy for object detection, positioning, and level control in demanding environments.
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.
| Supply voltage | DC 10V-30V | |||
| Residual ripple | ≤ 5 V | |||
| Power consumption | ≤ 2.1W | |||
| Initialization time | ≤ 250ms | |||
| Preheating time | ≤ 10s | |||
| Shell material | Aluminum alloy/Plexiglass | |||
| Connection type | M12 waterproof connector, lead wire | |||
| Display | 5-digit digital tube, 5 X LED | |||
| Weight | 360g | |||
| nclosure protection class | IP65 | |||
| Protection class | III | |||
| Measuring range | 0-5M, 0-10M, 0-15M, 0-20M, 0-30M, 50M, 80M, 100M, 150M, 200M | |||
| Measuring objects | Natural objects | |||
| Resolution | 1mm | |||
| Accuracy | 1.5mm+D0.5% | |||
| Frequency | 5HZ, 10Hz, 20HZ, 30Hz | |||
| Output time | ≥ 4 ms | |||
| Light source | red laser | |||
| Laser Class | 1 (IEC 60825-1:2014 EN 60825-1:2014) | |||
| Average laser service life (at 25°C):100000 h | ||||
| Typical Photoelectric Dimensions Distance:15 mm x 15 mm (10 m) | ||||
| output | digital output：PNP/NPN（Output current:≤100 mA) | |||
| Analog output:Voltage/current output(0V-10V/4mA-20mA,≤300Ω) | ||||
