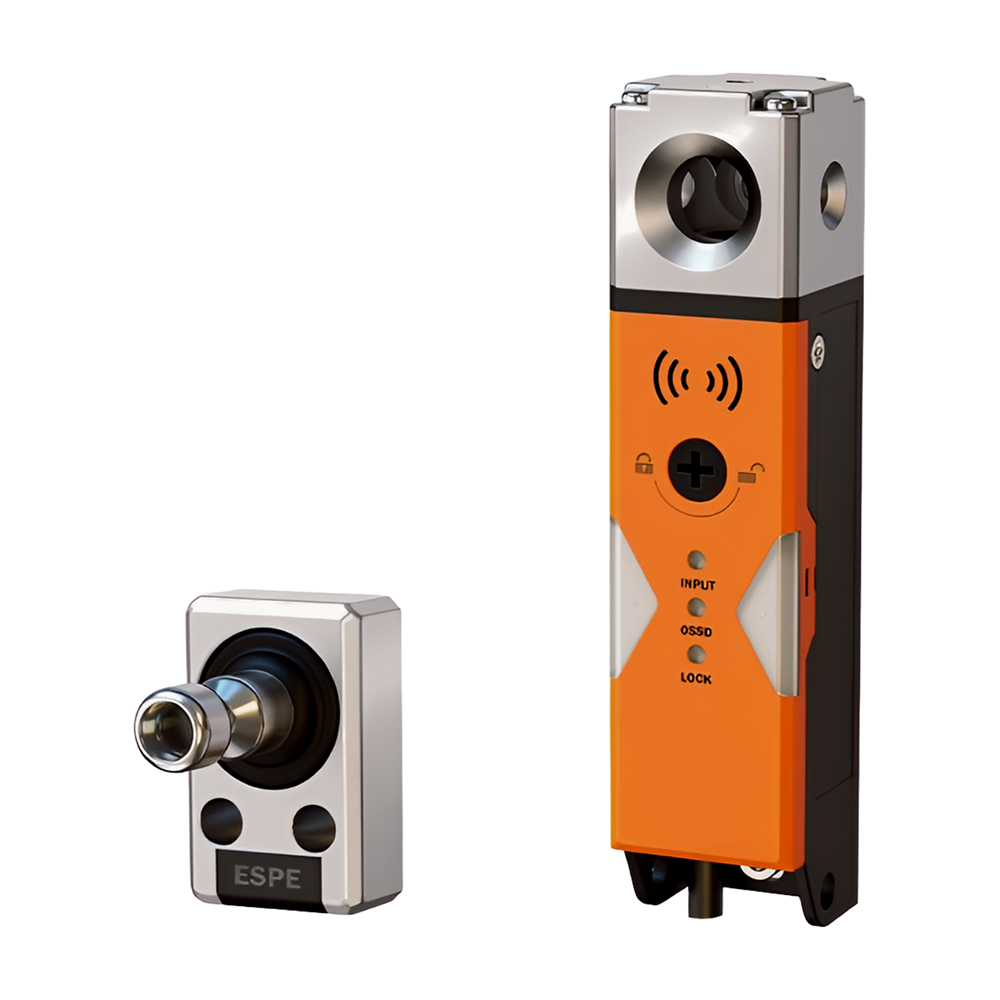

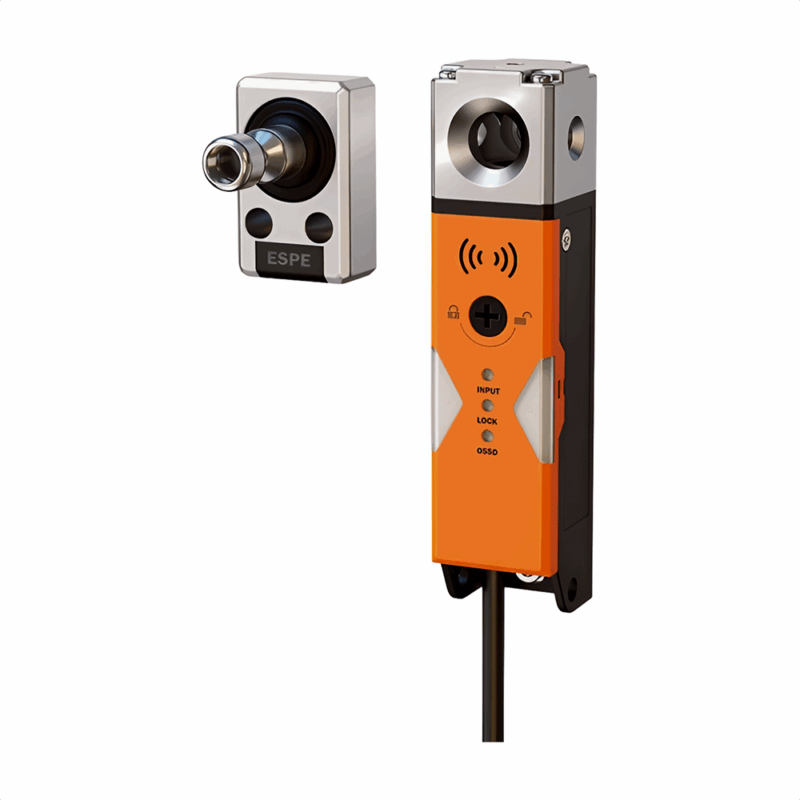

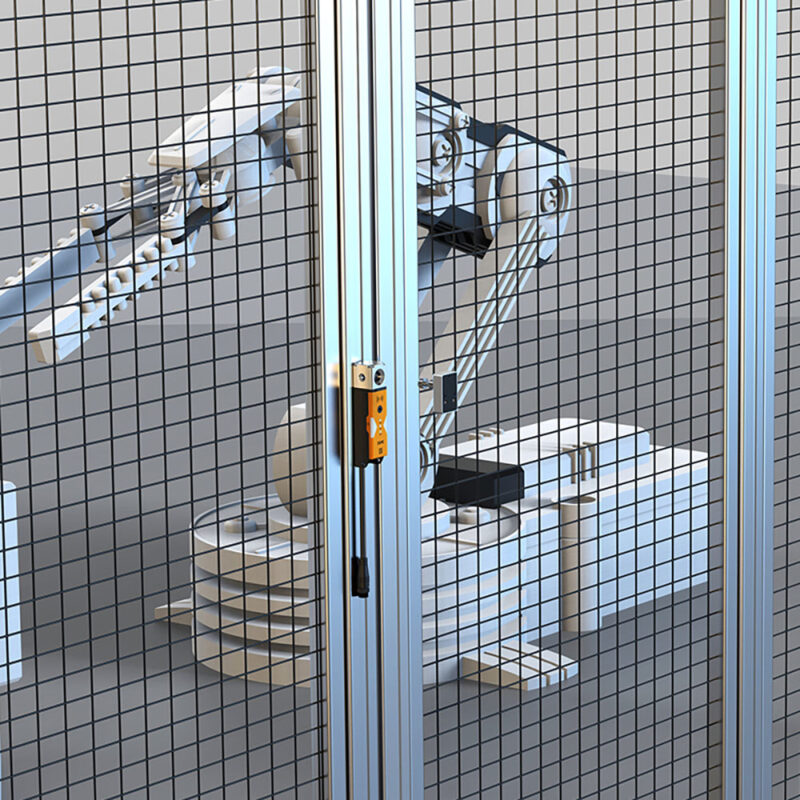

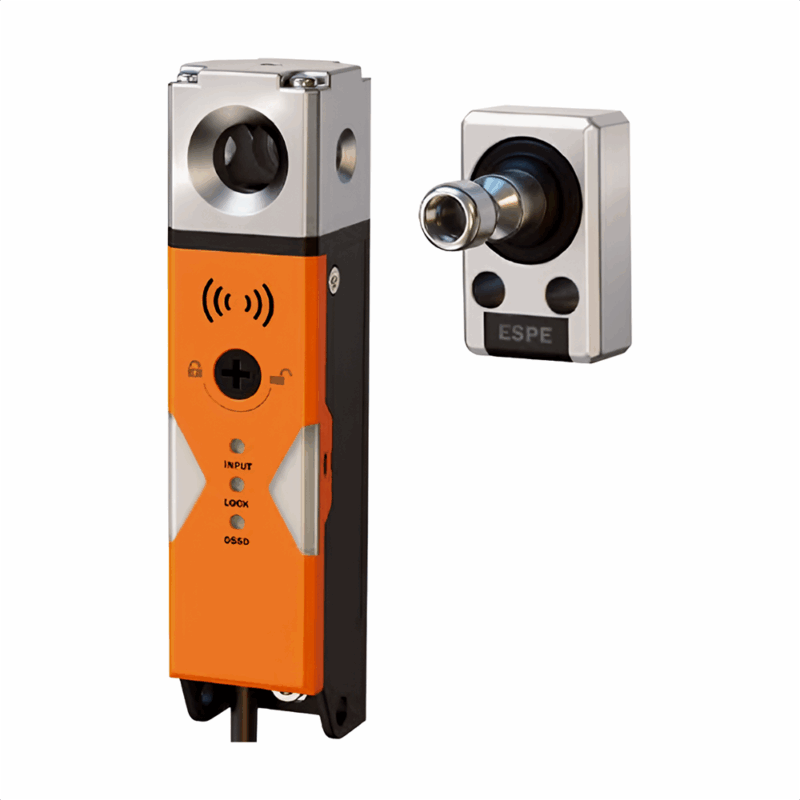

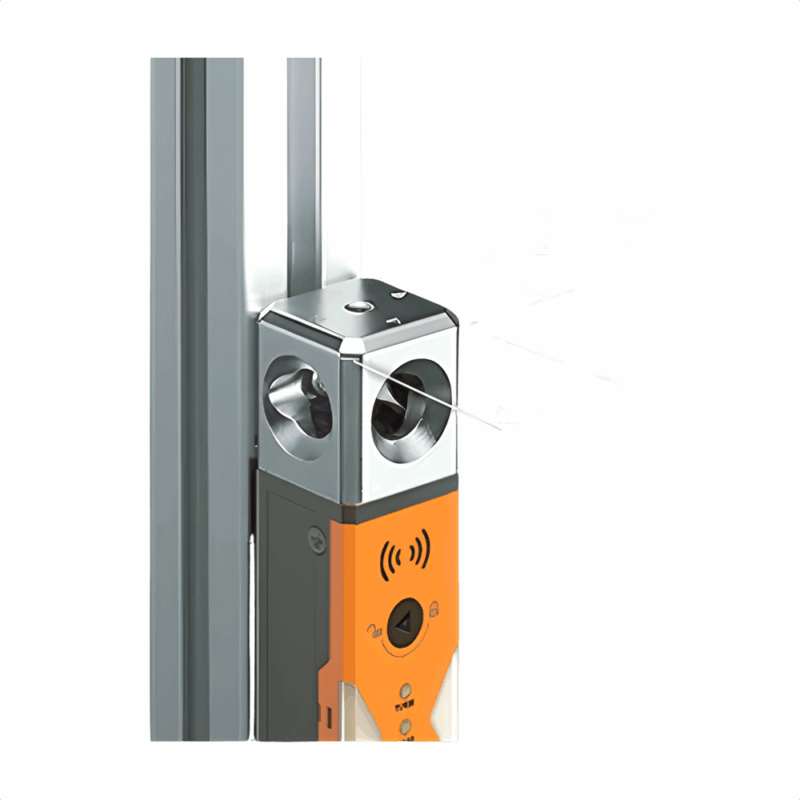

The Safety Interlock Switch is a critical device for machine guarding. It prevents machine operation unless a safety gate or guard is securely closed. If the guard is opened, the switch sends an immediate stop signal, preventing access to hazardous areas and ensuring operator safety.
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.
| Product | High Performance Safety Interlock Switch | ||
| Safety output | NPN*2/PNP*2 | ||
| Response time | Locking→Unlocking | <100ms(Independent working) | |
| Unlocking → Locking | <300ms(Independent working) | ||
| Locking | Lock holding force Fzh | ≥2000N | |
| Lock bolt insertion deviation | ≤2mm | ||
| Mechanical endurance | >1 million times (Door operating speed1m/s) | ||
| Operating frequency | 1Hz | ||
| Minimum radius of the revolving door | ≥250mm | ||
| Manual unlocking | Front. Rear | ||
| Cascade linking | Maximum 20 sets | ||
| Control output | Output method | Transistor output*2 | |
| Max. load current | 150mA | ||
| Residual voltage (during ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| OFF stage voltage | 2.0V max. (5m cable) 3V (31m cable) | ||
| Leakage current | 0.5mA max. | ||
| Max. capacitive load | 4uF | ||
| Load wiring resistance | 2.5Ω max. | ||
| AUX output (Not safety output) | Output | Transistor | |
| Max. load current | 50mA | ||
| Residual voltage (when ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| External input (Short circuit current) | Safety input | Approx. 1.5mA x 2 | |
| Lock control input (OSSD switching input) | Approx. 5mA | ||
| Reset/ EDM input | Approx. 5mA (only for advanced function) | ||
| EDM option input | Approx. 2.5mA (only for advanced function) | ||
| Power | Power supply | 24VDC±10% (ripple P-P 10% Class 2) | |
| Power consumption | ＜5W | ||
| Circuit protection | Reverse current protection, short-circuit protection and surge protection for each output | ||
| Environmental resistance | Enclosure rating | IP67 | |
| Ambient temperature | -10℃~+55℃（No freezing） | ||
| Storage temperature | -25℃~+70℃（No freezing） | ||
| Operating relative humidity | 5% to 95%RH | ||
| Storage relative humidity | 5% to 95%RH | ||
| Vibration resistance | 10 to 55Hz, double amplitude 2.0mm, 5 minutes in each of tine X, Y, and Z direction (IEC60947-5-3) | ||
| Shock resistance | 30G in X, Y, Z directions 6 times each axis (IEC60947-5-3) | ||
| Material | Nylon/ Zinc alloy/ Stainless steel <300ms (Independent working) | ||
