This advanced safety scanner provides reliable area monitoring and access control for industrial environments. Using laser scanning technology, it creates invisible protective fields to detect personnel or objects, automatically halting machinery to prevent accidents and ensure workplace safety.
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.

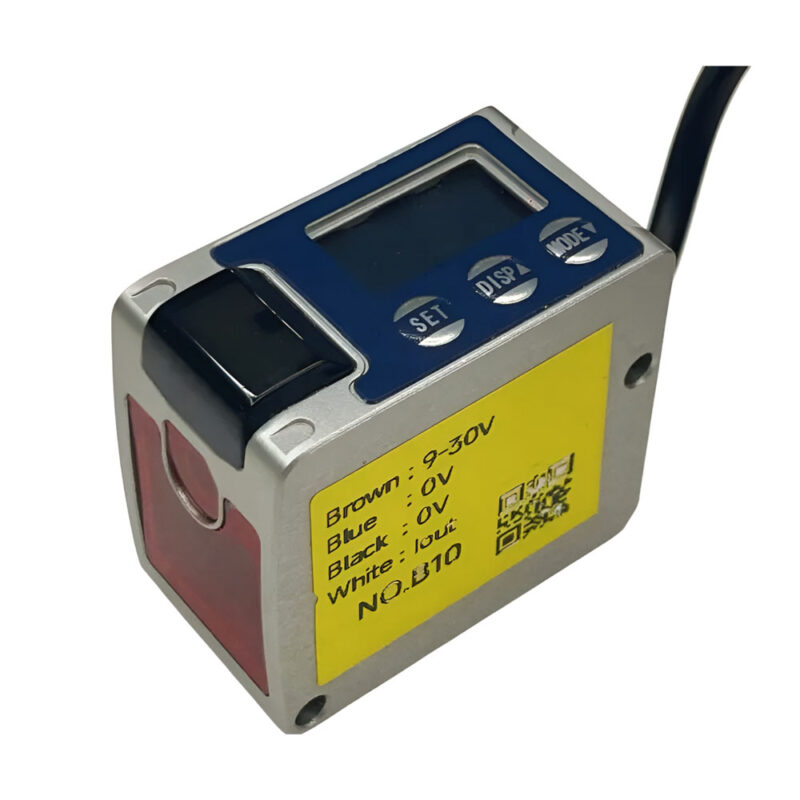

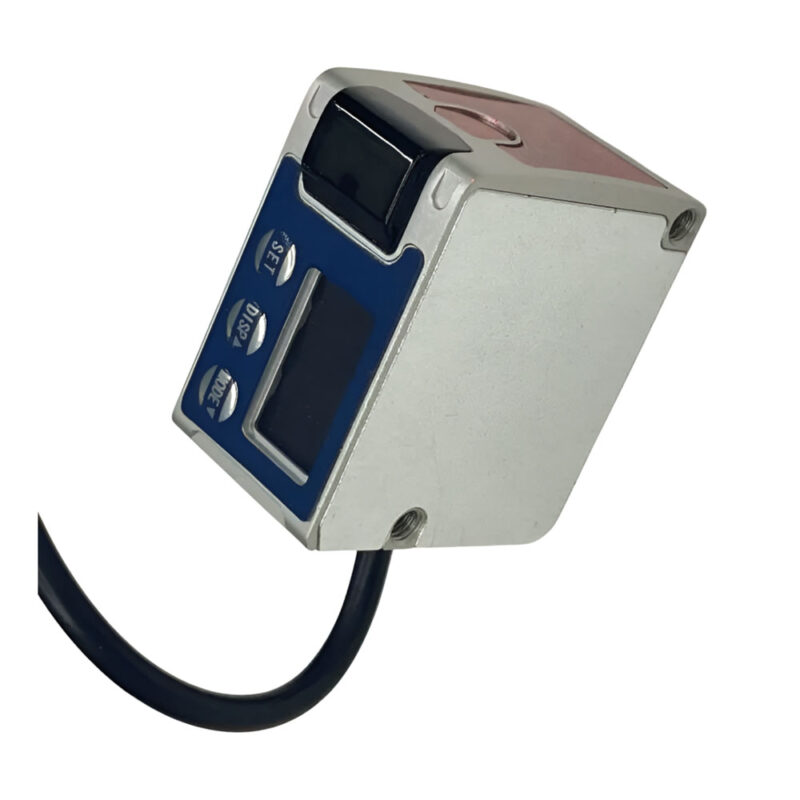

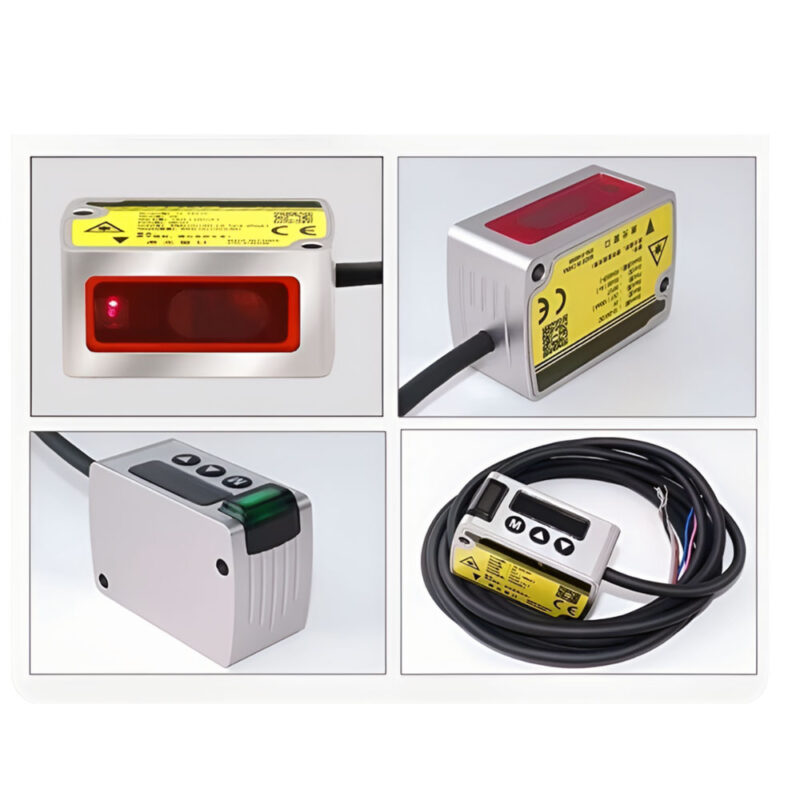

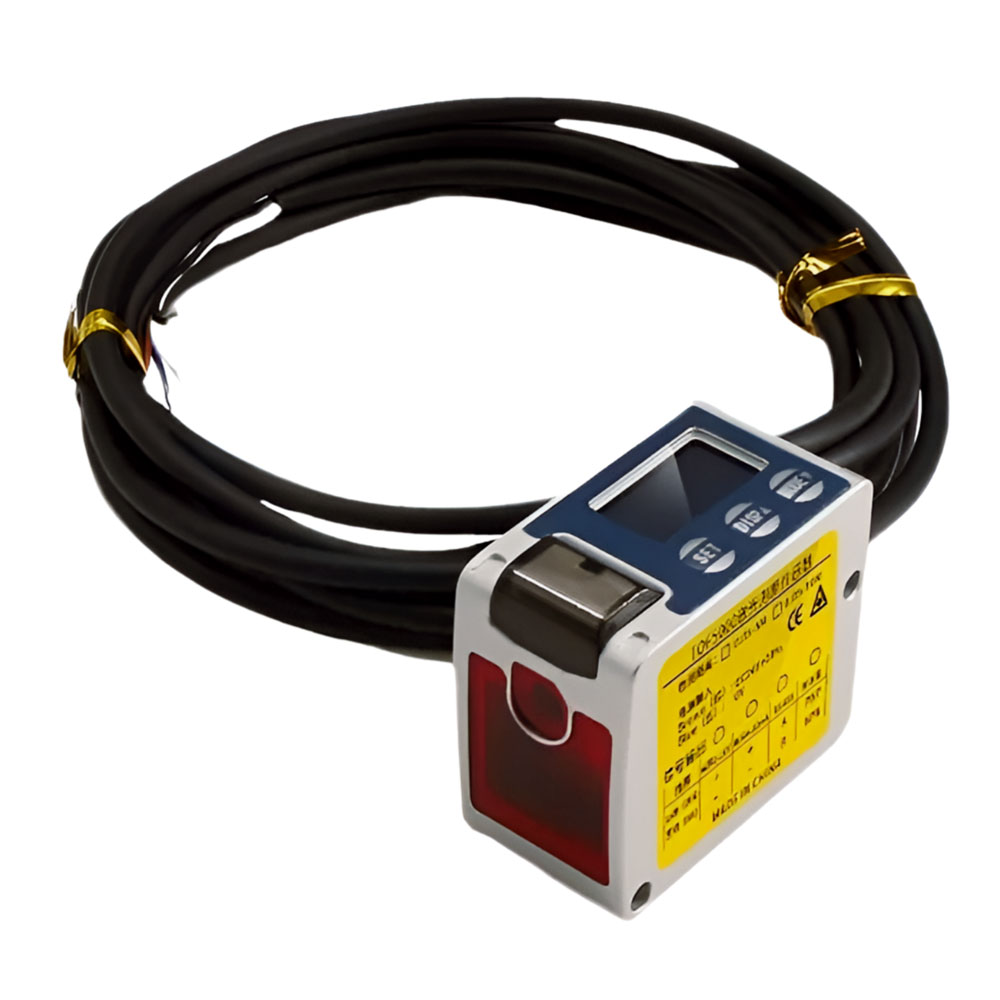

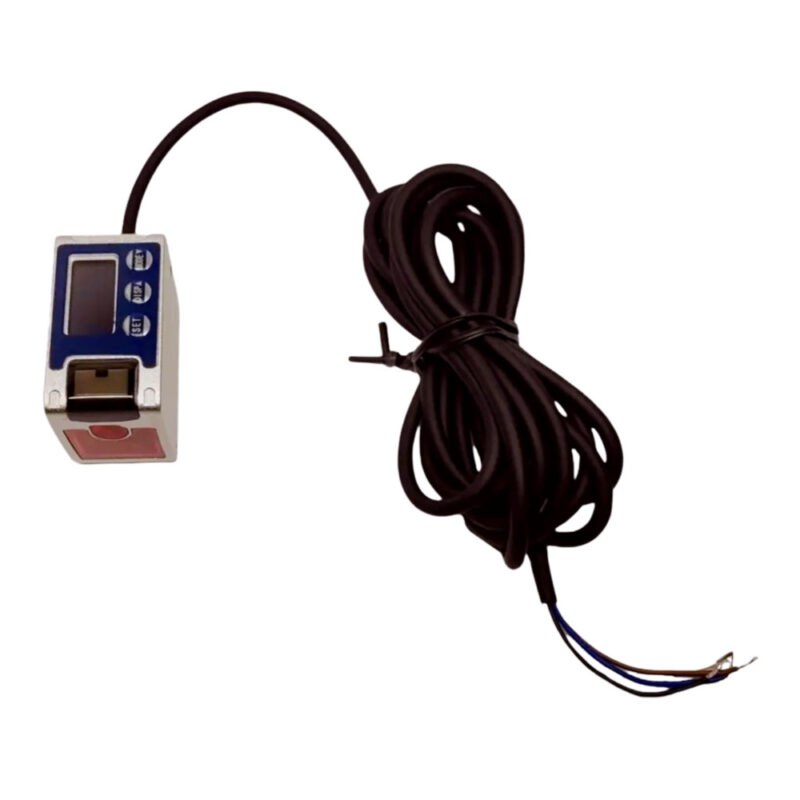

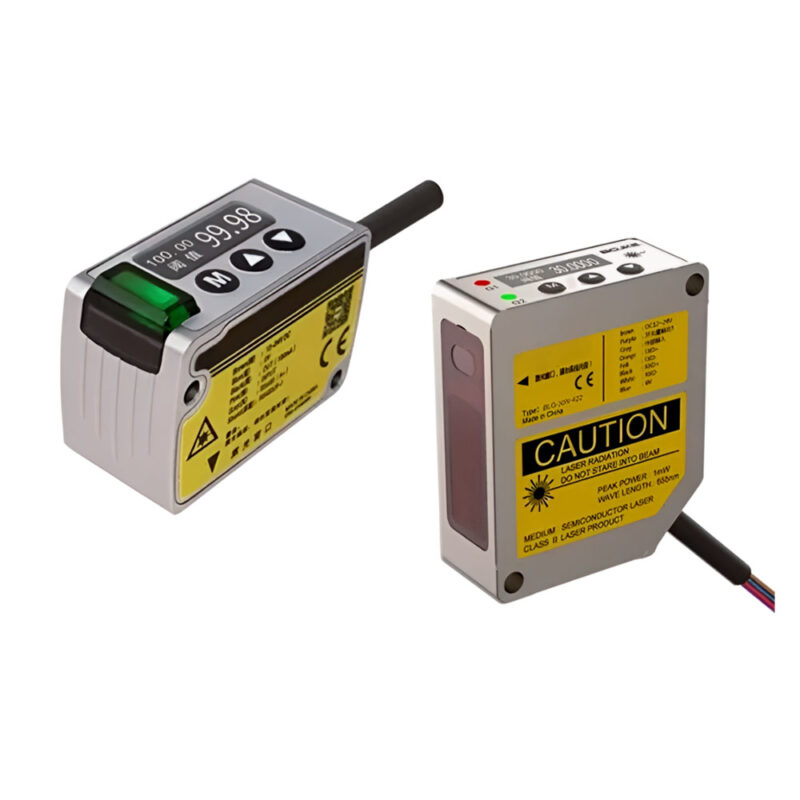

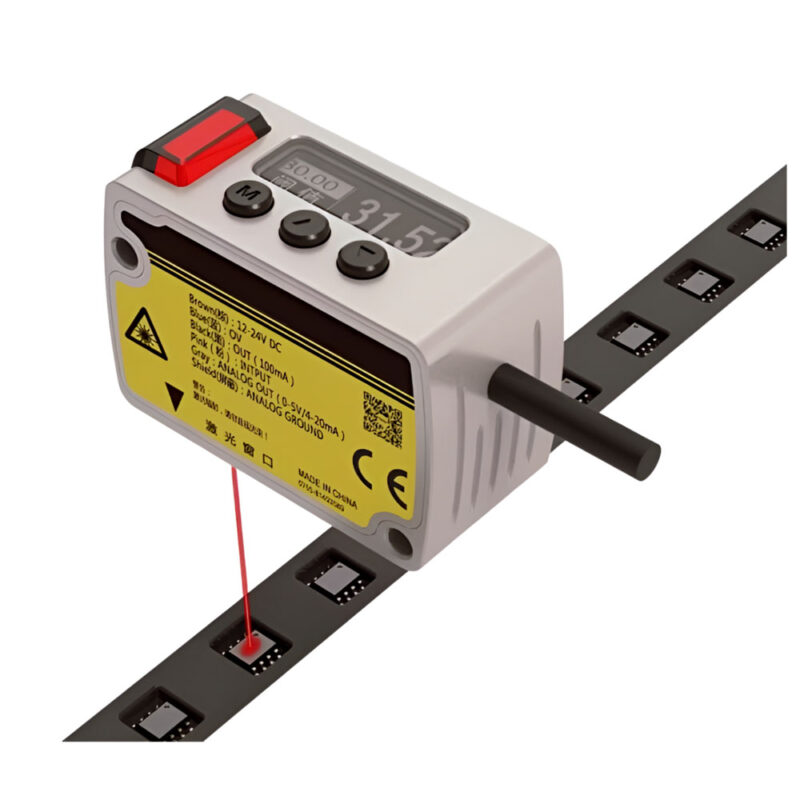

| Laser Displacement Reflection Sensor | |||
| type: | TOF1500-2MN | TOF30003MNP | TOF5000-5M-I |
| TOF3000-3M-AI | TOF5000-5M-U | ||
| TOF3000-3M-AU | TOF5000-5M-48 | ||
| TOF5000-5M-NP | |||
| Output Mode: | Three-wire normally open normally closed NPN | Three-wire normally open normally closed PNP | Four-wire N/P normally open normally closed |
| Detection distance: | 0.03-2m | 0.05-3m | 0.03-5m |
| Supply voltage: | 12V ~ 24VDC ± 10% Ripple P-P10 % | ||
| Current consumption: | 40mA or less (power supply voltage 24V DC), | ||
| 60mA or less (power supply voltage 12V DC) | |||
| Output Type: | NPN/PNP | ||
| Mounting Type | Fixed installation | ||
| Description | Laser distance sensor | ||
| Theory | Laser Distance Measurement | ||
| Output | PNP/NPN/TTL serial port | ||
| Viewing Angle | 3° – 30° | ||
| Response Time | 1 ms | ||
| Voltage – Supply | 12-24V DC±10% | ||
| Wavelength | 655nm | ||
| active area | 0-30m | ||
| Dark Count Rate | Ranging frequency 1000hz | ||
| Discrete Output Type | DPL-030 | ||
| Measuring Distance | 30mm | ||
| Measuring Range | ±5mm | ||
| Repeat Precision | 10μm | ||
| Light Source | Red Semiconductor Laser, Wavelength655nm | ||
| Response Time | 1ms | ||
| Discrete Output | NPN/PNP Open Collector Switching | ||
| Protection Rating | IP67 | ||
| Operating Temperature | -10℃-50℃ | ||
| Vibration Resistance | 10-55Hz | ||
| Single package size | 20X30X35 cm | ||
