Summary
The S4B heavy-duty type 4 safety light curtains are advanced safety devices designed for high-performance safeguarding in various industrial applications, such as presses, robotic cells, and automated machinery. Manufactured by Banner Engineering Corp., these light curtains are notable for their robust design, ease of installation, and compliance with critical safety standards, including the Machinery Directive 2006/42/EC. Their innovative features, such as auto-cascading functionality and visual alignment indicators, streamline the setup process, enhancing both efficiency and safety in the workplace.
The S4B series boasts a resolution of 30 mm and operational ranges of up to 12 meters, making them effective for hand detection and other safety applications. The product’s design allows for flexible mounting options that can accommodate various configurations while maintaining alignment accuracy, which is essential for optimal performance. Compliance with safety standards and the integration of proactive maintenance features contribute to the S4B’s reputation as a reliable safeguarding solution in industrial environments.
However, the installation and maintenance of S4B light curtains are subject to certain considerations and regulations. Users must ensure proper alignment, adhere to specified distances between brackets, and perform regular checkouts to maintain compliance with safety protocols. Notably, the system’s susceptibility to external factors, such as light interference and mechanical misalignment, presents ongoing challenges that require diligent attention to troubleshooting and maintenance practices to uphold its safety effectiveness.
Overall, the S4B Heavy-Duty Light Curtains represent a critical component in the landscape of industrial safety technology, facilitating safer machine operation while meeting rigorous industry standards.
Table of Contents
Description of S4B Heavy-Duty Light Curtains
The S4B Heavy-Duty Type 4 Safety Light Curtains are specifically designed for high-performance safeguarding in various industrial environments. They are ideal for applications such as safeguarding presses, robotic cells, and automated machinery, offering reliable safety features, easy integration, and long-term durability.
Key Features
One of the standout features of the S4B series is its auto-cascading functionality, which simplifies wiring and installation by automatically detecting connected units. This capability significantly reduces wiring complexity, making setup more efficient and less prone to errors.
Additionally, the S4B light curtains provide visual alignment indicators that assist users in proper installation. The installation is further facilitated by flexible mounting options, including center-mount and end cap brackets, which allow for up to 15 degrees of freedom for emitter and receiver alignment.
Technical Specifications
The S4B series offers a resolution of 30 mm, which is optimal for hand detection. They come in lengths ranging from 300 mm to 1800 mm and have an operational range of up to 12 meters. These specifications ensure effective safeguarding without compromising the safety and efficiency of industrial operations.
Compliance and Standards
Banner Engineering Corp. ensures that the S4B Safety Light Curtains comply with various safety directives and standards, such as the Machinery Directive 2006/42/EC. The products are designed to meet essential health and safety requirements, promoting safe machine operation in accordance with established regulations.
Mounting S4B Light Curtains
The S4B light curtains are designed to offer flexible installation options, allowing for optimal placement on machines to enhance safety. Users can choose between center-mount brackets or end cap brackets, providing up to 15 degrees of freedom for emitter and receiver alignment.
Installation Guidelines
When installing the S4B light curtains, it is critical to ensure that the brackets are placed correctly. The unsupported distance between brackets must be less than 900 mm (35.4 inches) to maintain effectiveness and compliance with safety standards. Proper installation also requires the emitter and receiver to face each other directly, which can be confirmed by ensuring that both sensors are level and aligned with each other.

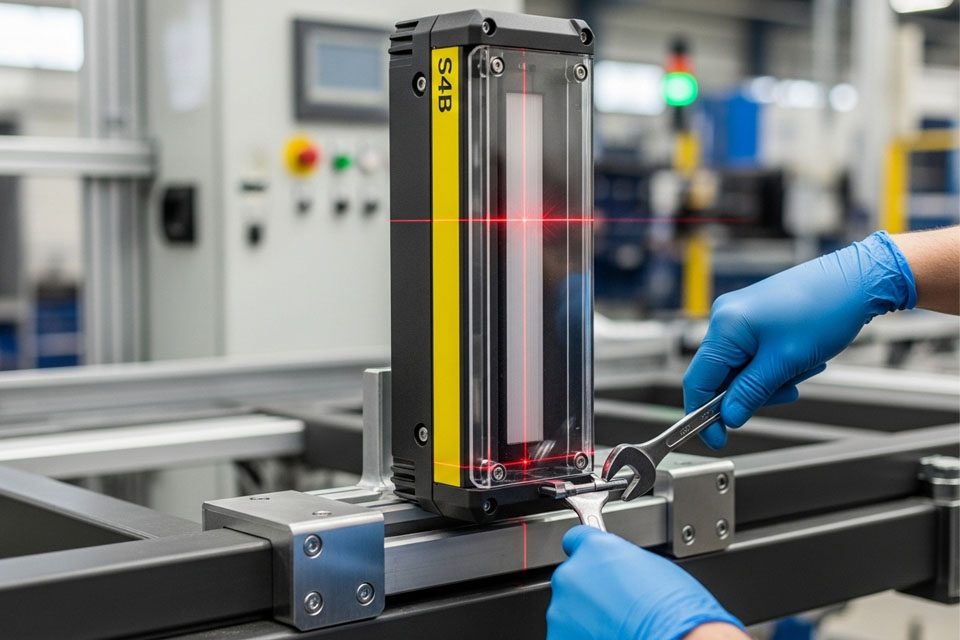

Mounting Procedure
To mount the S4B light curtains, follow these steps:
- Bracket Installation: Secure the side brackets to the desired surface using user-supplied M4 bolts, washers, and nuts, tightening them to 2.15 N·m (19 in lbs) as specified.
- Sensor Placement: Insert each sensor into its respective bracket, ensuring that the front window is facing outward from the opening of the bracket. If necessary, loosen the M4 clamp screws to facilitate sensor placement.
- Alignment: Adjust the sensors until they are facing each other, measuring from a reference plane to confirm that both emitters and receivers are positioned correctly and are level.
Safety Considerations
When mounting the S4B light curtains, it is vital to maintain a minimum distance from any hazards. This distance should be calculated using the supplied formulas to ensure that an individual cannot reach the hazard before the cessation of hazardous motion. Additionally, the installation must prevent individuals from reaching around, under, over, or through the defined area without detection, complying with safety standards like OSHA CFR 1910.217 and ANSI B11.19.
By adhering to these guidelines and considerations, users can effectively mount S4B light curtains, thereby enhancing machine safety and ensuring compliance with relevant safety regulations.
Aligning S4B Light Curtains
Proper alignment of the S4B Heavy-Duty Type 4 Safety Light Curtains is crucial for ensuring optimal performance and safety. The alignment process involves several steps that facilitate the accurate positioning of the emitter and receiver components.
Alignment Procedures
To begin the alignment, users should first mount the light curtains securely using either center-mount brackets or end cap brackets, which allow for up to 15 degrees of freedom for adjustments. Once the light curtains are in place, the onboard alignment zone indicators provide visual guidance to simplify the alignment process.
Initial Adjustments
When aligning the light curtains, it is important to ensure that the light beam between the optical transmitter and receiver is correctly oriented. If any misalignment occurs, adjustments can be made by rotating the emitter or receiver until the indicators confirm that the beams are aligned properly. A red LED on the receiver indicates that one or more beams are not being received, guiding users to make necessary corrections.
Fine-Tuning Alignment
For precise alignment, additional tools such as the LAT-1 Laser Alignment Tool may be utilized. This tool aids in providing a visible reference along the sensor’s optical axis, making it easier to achieve proper alignment. Furthermore, after initial alignment, users should perform a trip-test procedure to validate the detection capability of the light curtain. This involves applying power to the safety light curtain and making any final optical adjustments as needed.
Periodic Checks and Maintenance
Once the alignment is established, it is vital to conduct regular checkouts to maintain the system’s reliability. According to recommendations, daily checkouts should occur at every shift change or whenever significant changes are made to the machine set-up. Additionally, semi-annual checkouts are advised to ensure continued effective operation, with records of the results maintained near the machine or in its technical file.
Troubleshooting
Troubleshooting issues related to the S4B Heavy-Duty Light Curtains is crucial for ensuring optimal performance and safety. Common problems include misalignment, interference, and mechanical faults. Below are some key considerations and solutions for effective troubleshooting.
Common Issues
Light Source Interference
Safety light curtains can be affected by strong direct light sources, such as sunlight or welding arcs. This interference can cause the curtain to mistakenly detect an obstacle. To mitigate this, it’s recommended to adjust the installation position of the light curtain or to employ sunshades that shield it from direct light exposure.
Electromagnetic Interference
Nearby electrical equipment like motors or inverters may generate electromagnetic interference that disrupts signal transmission. Using shielded cables for signal lines and ensuring proper grounding of the shielding can help reduce the impact of such interference.
Obstructions on the Curtain Surface
Dust, oil, or other debris on the surface of the transmitter or receiver can hinder the light beam’s transmission. Regular cleaning with a soft cloth and a suitable cleaning agent, such as anhydrous alcohol, is recommended to maintain clear signal pathways.
Troubleshooting Steps
- Check Alignment: Ensure that the light curtain’s beams are correctly aligned. If the Channel #1 beam is not aligned, status indicators will show a red light, signaling misalignment that needs correction.
- Examine for Interference: Identify any strong light sources or electrical devices that could cause interference. Adjusting the installation angle or position may resolve these issues. Installing protective shields may also be beneficial.
- Review Wiring Connections: Ensure all connections are secure and that there are no damaged cables. Poor connections can lead to power issues or erratic performance.
- Test Stopping Response: Verify that the machine’s stopping response time meets the manufacturer’s specifications, which is essential for safety. Utilize appropriate instruments to measure this response time.
- Conduct Regular Checkouts: Perform routine checks at intervals not exceeding 24 hours during continuous operation, or after machine setup changes and shift changes. Document these checkouts for reference and compliance.
By following these guidelines, users can effectively troubleshoot and maintain the S4B Heavy-Duty Light Curtains, ensuring they perform at maximum effectiveness and uphold safety standards in the workplace.
Maintenance and Care
Proper maintenance and care of the S4B Safety Light Curtain are essential for ensuring its reliable operation and the safety of personnel. Regular maintenance procedures help to reduce downtime and enhance the longevity of the device in demanding industrial settings.
Proactive Maintenance
Implementing proactive maintenance strategies can significantly mitigate potential issues. For instance, the S4B system features weak beam signal alerts that indicate when cleaning is necessary, thereby reducing the likelihood of unexpected failures due to sensor obstructions.
Regular Checkouts
Periodic checkouts are critical to confirm that the S4B system is functioning as intended. It is recommended that these checkouts be performed at every shift change, power-up, and machine setup change, and should be conducted by a Qualified Person. This routine ensures that all components, including the sensors and interfaces with the guarded machine, are operational and compliant with safety regulations.
Safety Compliance
Users are responsible for adhering to all local, state, and national laws, rules, and codes regarding the installation and operation of the S4B system. A thorough risk assessment should be performed to evaluate the specific guarding application, and appropriate safeguarding methods should be implemented based on these findings. Compliance with ISO 12100 and ANSI B11.0 methodologies is recommended for a comprehensive understanding of necessary safety measures.
Mechanical Alignment and Installation
Proper mechanical alignment of the sensors is crucial for the S4B system’s effectiveness. Users should verify sensor alignment using tools such as a carpenter’s level or laser alignment tools, ensuring that the emitters and receivers are mounted correctly and securely. Any adjustments made during installation must be followed by thorough documentation of alignment and installation results, which should be displayed near the machine for reference.
Testing Procedures
Testing procedures for the S4B Heavy-Duty Light Curtains are critical to ensuring safe operation and compliance with established safety standards. These procedures include various checkpoints that need to be conducted at different intervals and under specific circumstances.
Daily Checkout
Daily checkouts involve verifying system access, safety distances, reset switch functionality, and performing a trip test using a test piece. This ensures that zone indicators function correctly by turning red when activated. A Qualified Person must conduct these daily checkouts, and results should be recorded and kept in close proximity to the machine.
Commissioning Checkout
The commissioning checkout should occur when the system is first installed or whenever any alterations are made to the system or the guarded machine. This procedure includes interfacing the S4B system to the guarded machine and verifying that all operations align with safety protocols. It is essential to ensure that the system is not used until all checkout procedures are verified to prevent any potential injury.
Semi-Annual Checkout
A comprehensive semi-annual checkout is mandated, which requires a Qualified Person to thoroughly assess the system and its integration with the guarded machine. This assessment should review all operational aspects and confirm that the entire safeguarding system functions as intended. Test results from this checkout must also be documented and made accessible near the machine.
Weak Beam Strength Detection
The S4B Light Curtain has a built-in feature that detects weak beam strength. If the signal strength is marginal, the system will indicate this by turning the corresponding zone indicator yellow and will send a notification through pin 5 to the connected PLC or HMI for maintenance attention. Regular checks should be made to ensure the beam strength remains within acceptable limits to maintain system integrity.
Mechanical Alignment Verification
To ensure optimal functionality, mechanical alignment of the sensors should be verified using tools such as a carpenter’s level or a plumb bob. Adjustments may be necessary to achieve proper alignment, and all fasteners should be securely tightened post-adjustment. Failure to maintain proper alignment can compromise the safety features of the system.
By adhering to these testing procedures, users can ensure the reliability and safety of the S4B Heavy-Duty Light Curtains in their operational environment.
