Summary
A safety light curtain is a vital safety device utilized in industrial environments to create an invisible barrier that protects personnel from hazardous machinery. By employing an array of opto-electronic sensors, these systems can detect interruptions in emitted light beams, triggering a stop signal to halt operations and prevent accidents. Safety light curtains have become a cornerstone of industrial automation, particularly in sectors such as automotive manufacturing, packaging, and metalworking, where safeguarding workers is crucial.
Notably, safety light curtains have evolved significantly since their inception in the 1950s, when Erwin Sick introduced the first model at a trade fair in Munich. Over the decades, advancements in technology have transformed these systems from basic stop mechanisms to sophisticated devices integrated with programmable logic controllers and enhanced detection features. Today, innovations such as artificial intelligence and Internet of Things (IoT) connectivity are driving the development of more responsive and adaptable safety light curtains, enabling real-time monitoring and operational flexibility in complex manufacturing settings.
Despite their advantages, safety light curtains are not without limitations. They are primarily designed to prevent access to hazardous areas but may fail to protect against secondary risks such as flying debris or sparks. Furthermore, their effectiveness heavily depends on proper installation and maintenance, underscoring the necessity for comprehensive risk assessments and adherence to safety standards. Compliance with international regulations, including IEC 61496 and ANSI standards, is essential for ensuring these devices provide adequate protection while maintaining productivity.
As industries continue to prioritize workplace safety, the market for safety light curtains is projected to grow, driven by the increasing integration of advanced technologies and the rising demand for automation in manufacturing processes. This trend reflects a broader commitment to improving operational safety and meeting regulatory requirements in high-risk environments.
Table of Contents
History
The concept of safety light curtains was pioneered in the early 1950s when Erwin Sick presented the first wooden model of a light curtain at the “German Inventor and New Development Trade Fair” in Munich in 1951. This initial design was based on the auto-collimator principle and was recognized as a significant technological breakthrough, leading to the development of safety systems that have since saved countless lives from the dangers of industrial machinery. Following this presentation, a patent registration for the light curtain system marked the beginning of its evolution into the sophisticated technology utilized today.
As the technology developed, safety light curtains became integral to industrial automation, evolving from simple barrier systems into advanced safety devices that employ a series of photoelectric sensors to create invisible safety barriers around hazardous areas. The early implementations focused primarily on stopping machines when an object or person disrupted the beam, thereby preventing accidents and injuries in high-risk environments.
Over the decades, hardware and software advancements have greatly enhanced the versatility and effectiveness of safety light curtains. These systems are now capable of being integrated with programmable logic controllers and safety relays, allowing them to work in tandem with other safety measures to ensure comprehensive protection. The introduction of features such as muting sensors, which enable materials to pass through without halting production, has further broadened the applications of light curtains in conveyor-based workflows.
Today, the safety light curtain market continues to grow, driven by the integration of cutting-edge technologies like artificial intelligence and the Internet of Things (IoT). These innovations are enhancing the responsiveness and adaptability of light curtains, allowing for real-time monitoring and adjustments to changing environments. As industries increasingly prioritize safety, the role of light curtains in preventing workplace accidents and ensuring regulatory compliance remains critical in the ongoing evolution of industrial safety measures.
How It Works
Safety light curtains are sophisticated devices that utilize an array of opto-electronic sensors to create an invisible protective field. These devices typically consist of a transmitter, which emits a series of infrared light beams, and a receiver, equipped with photoelectric cells that detect these beams. When an object, such as a person or material, interrupts one or more of the emitted beams, the system sends a stop signal to the machinery or equipment being safeguarded, thereby preventing potential hazards.
Detection Mechanism
The safety light curtain operates by projecting a two-dimensional detection field created by multiple light beams. Each beam remains active until it is interrupted by an object, allowing for non-contact detection. This feature is particularly beneficial in applications where it is crucial to differentiate between human presence and material objects. For instance, advanced models like the deTec4 safety light curtain incorporate pattern detection technology, which analyzes the individual beam data to enhance the reliability of detection, further minimizing unnecessary machine downtimes.
Integration and Performance Levels
In addition to basic functionality, safety light curtains can be integrated into broader automation and safety systems. The latest standards, such as Edition 3.0 of IEC 61496-1, outline specific performance levels (PL) that these devices must meet to ensure their reliability and effectiveness in safeguarding operations. Compliance with ISO 13849 standards helps ensure that the safety light curtains provide adequate protection while maintaining high levels of productivity in various industrial applications.
Applications and Benefits
Safety light curtains are widely used in diverse industries, including automotive, packaging, and metalworking, primarily for safeguarding machinery and operators. Their ability to provide both safety and automation functionalities allows manufacturers to optimize their processes cost-effectively, thereby improving overall productivity and system throughput. Moreover, with features like Smart Box Detection, these devices can enhance safety measures without requiring external signals or additional sensors, offering a streamlined solution for complex operational environments.
Applications
Safety light curtains are utilized across a wide range of industries and applications where safeguarding personnel from potential hazards is crucial. Their ability to detect the presence of individuals near dangerous machinery or automated systems makes them a vital component in enhancing workplace safety.
Industrial Automation

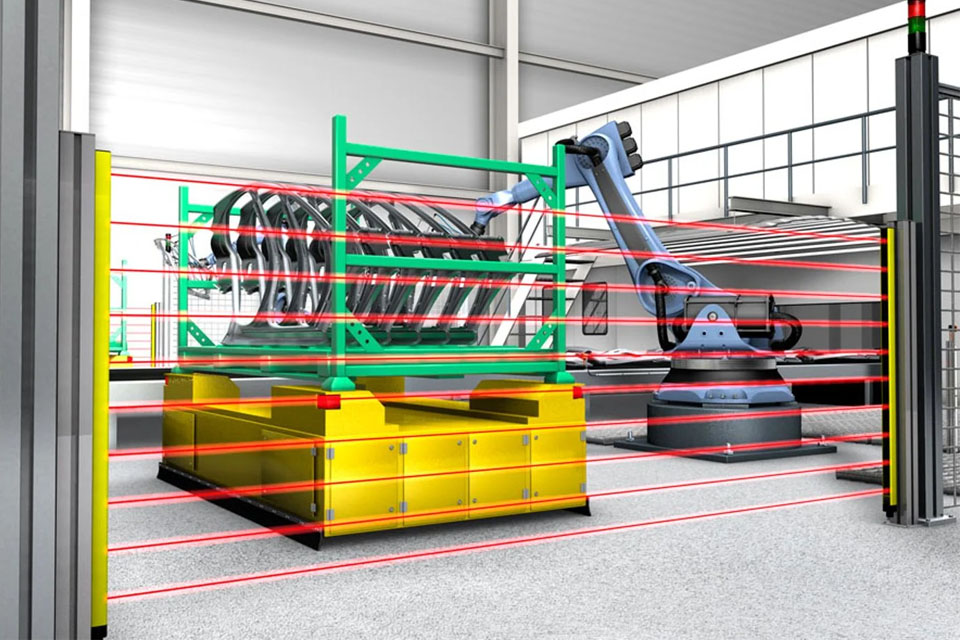

In the realm of industrial automation, safety light curtains are commonly deployed on assembly lines, robotic stations, and presses to protect workers from injury. They serve as barriers that halt operations when a person or object breaches the light beam, thereby preventing accidents associated with moving machinery.
Elevators
Safety light curtains are also employed in elevator systems to detect obstructions in doorway openings. This functionality ensures that elevator doors do not close on individuals or objects, significantly enhancing passenger safety.
Warehousing

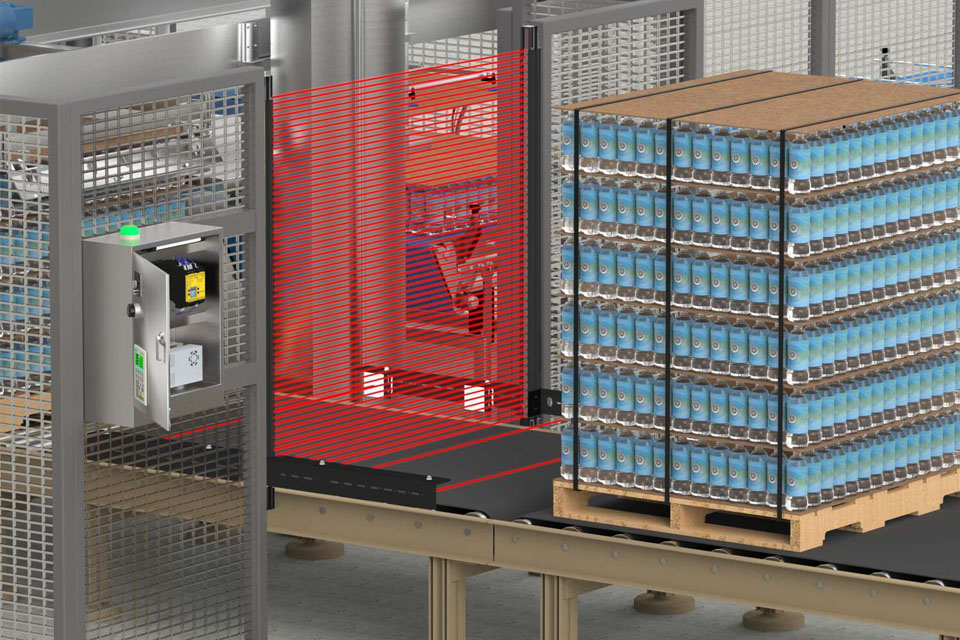

In warehouses, light curtains play a critical role in ensuring safety at automatic gates, conveyor belts, and palletizers. They help prevent accidents by detecting the presence of personnel in hazardous zones during the operation of heavy machinery.
Medical and Pharmaceutical Applications
In high-speed automated environments, such as pharmaceutical production lines and medical diagnostic equipment, safety light curtains help mitigate the risk of injury by detecting when operators are too close to potentially dangerous processes.
Amusement Parks
Some amusement park rides utilize safety light curtains to monitor rider safety. They detect if any limbs extend beyond designated safety zones, automatically halting the ride’s operation if necessary, thus preventing accidents.
Packaging Industry
In the packaging sector, safety light curtains are essential for ensuring safe differentiation between people and materials, as well as detecting unclosed parcels. Devices such as the SICK deTec4 safety light curtain achieve high precision with resolutions of up to 2.5 millimeters, ensuring effective operation even in complex environments.
Machine Guarding

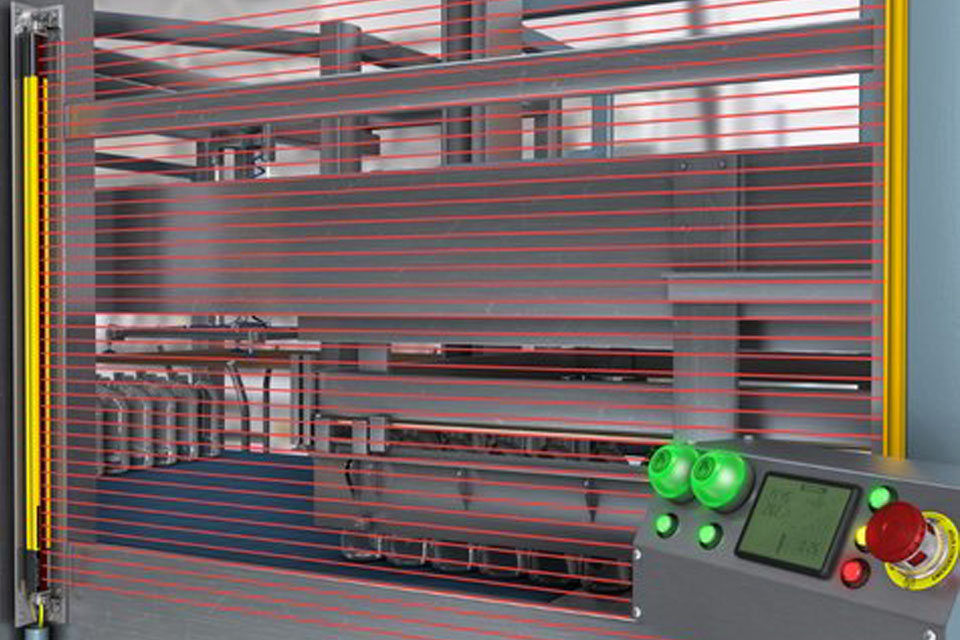

Safety light curtains are often integrated into machine guarding applications, where they serve to prevent access to hazardous areas during machine operation. Each application must be assessed individually, as the choice between light curtains and physical barriers may depend on specific operational requirements and risks involved.
Standards and Regulations
Safety light curtains are governed by a variety of international and national standards that ensure their effectiveness and compliance in safeguarding machinery and protecting workers. The primary international standard for safety light curtains is IEC 61496, which consists of two parts: Part 1 outlines general requirements and functional testing, while Part 2 details specific requirements for Electro Sensitive Protective Equipment (ESPE) like light curtains and grids. These standards were adopted in the United States as ANSI/UL 61496, establishing crucial safety benchmarks for these devices.
OSHA Regulations
In the United States, the Occupational Safety and Health Administration (OSHA) plays a pivotal role in setting safety standards for industrial equipment, including safety light curtains. OSHA’s regulation 29 CFR 1910.212 mandates that point of operation safeguarding devices comply with applicable standards, which now includes the recently adopted ANSI/UL 61496 standards. However, it is important to note that OSHA does not approve specific products; instead, it provides guidelines that manufacturers must follow to ensure their products meet safety requirements.
ANSI Standards
The American National Standards Institute (ANSI) also publishes relevant standards that affect safety light curtains. ANSI B11.19 (2010) consolidates design, installation, operation, and maintenance guidelines for safeguarding across all machines and equipment, emphasizing the importance of compliance with current safety protocols. The ANSI standards are essential for ensuring that safety light curtains are suitable for various industrial applications, and they must be reviewed and updated at least every ten years to remain valid.
Performance Levels and Safety Integrity Levels
Safety light curtains must also adhere to performance criteria defined by other international standards, such as ISO 13849-1 and IEC 61508, which specify the requirements for Performance Levels (PL) and Safety Integrity Levels (SIL) for electrical and electronic devices in machinery. For example, light curtains are typically classified within various categories based on their risk assessment, with Category 4 being the highest, reflecting the level of control reliability necessary for high-risk applications like metal stamping.
Advantages
Safety light curtains provide numerous benefits over traditional safety measures, enhancing workplace safety, productivity, and cost-effectiveness.
Enhanced Workplace Safety
One of the primary advantages of safety light curtains is their ability to act as effective safety barriers. They can instantly halt machinery upon detecting an obstruction, thereby significantly reducing the risk of injuries to employees or damage to equipment caused by rapidly closing doors. By enabling non-contact monitoring, these devices minimize the need for mechanical components that can wear out, leading to a longer service life compared to mechanical door switches or similar devices.
Increased Productivity
Safety light curtains facilitate a smoother workflow by allowing unrestricted access to work areas. Employees can move freely without concerns regarding door-related accidents, which enhances efficiency and reduces downtime associated with accidents or safety measures. The slim design and easy installation of safety light curtains also enable quick access to machinery for tasks such as tooling changes or loading/unloading, further boosting productivity.
Cost-Effective Solution
Investing in safety light curtains can lead to significant savings for businesses by reducing the costs associated with workplace accidents. By preventing injuries and minimizing equipment damage, companies can avoid expenses related to medical treatment, legal liabilities, and production delays. Moreover, the long-term maintenance costs are typically lower due to their robust design and reliability, which translates to fewer disruptions in production.
Regulatory Compliance
Safety light curtains help businesses comply with industry regulations and safety standards. By effectively detecting obstacles and preventing potential accidents, they support adherence to safety regulations, thereby promoting the overall well-being of employees. Many safety light curtains are designed to meet high safety categories, such as Category 4, which offers the highest level of protection for high-risk applications.
Versatile Applications
These safety devices are suitable for various industrial sectors, including automotive manufacturing, packaging, CNC machining, and food processing. Their versatility makes them applicable in diverse environments where machinery safety is a priority. Additionally, safety light curtains can be integrated with other automation systems to enhance overall operational safety and efficiency.
Limitations
While safety light curtains offer significant advantages in terms of operational efficiency and quick response times, they are not without limitations. One major concern is their inability to provide protection from secondary hazards. For instance, safety light curtains may effectively halt machine operations when an object crosses a designated safety zone, but they cannot guard against risks such as flying debris, sparks, smoke, or flash that are commonly associated with processes like robotic welding.
Moreover, the effectiveness of light curtains is heavily reliant on proper installation and maintenance. A thorough risk assessment must be conducted prior to installation to identify potential threats in the operational area, and adherence to the manufacturer’s guidelines is essential to ensure the curtains function correctly. Incorrect installation can result in diminished efficiency and an increased likelihood of malfunction, which poses a safety risk to operators. Regular inspections and maintenance are critical to sustain their operational effectiveness and to promptly address any issues that may arise.
Additionally, while light curtains can facilitate continuous workflow without the interruption caused by physical barriers, they may not be suitable for all environments, especially those requiring robust physical protection. In some cases, alternative safety measures might be necessary to fully address the range of hazards present in a manufacturing setting. Thus, while safety light curtains are a valuable component of a comprehensive safety strategy, they should be implemented as part of a broader risk management approach.
Future Trends
The safety light curtain market is poised for significant growth, projected to expand from USD 1.1 billion in 2022 to USD 1.4 billion by 2027, reflecting a compound annual growth rate (CAGR) of 5.8%. This growth is driven by various innovations and trends aimed at enhancing the efficiency and versatility of light curtains in industrial applications.
Innovations and Technological Integration
Integration with Artificial Intelligence
Artificial intelligence (AI) is becoming increasingly integral to the functionality of light curtains. By utilizing machine learning algorithms, these devices can enhance their precision and reaction times, effectively recognizing potential threats and adapting their operations to fluctuating environmental conditions.
Internet of Things Connectivity
The connection of light curtains to the Internet of Things (IoT) allows for remote monitoring and management. This capability increases flexibility and enables immediate responses in emergencies, as users can control systems via mobile applications, streamlining safety management.
Extended Lifespan and Material Advancements
Innovations in materials, including advanced LED diodes, are contributing to the extended lifespan of light curtains. This durability helps companies reduce costs associated with equipment replacement and maintenance, further driving the adoption of these safety systems in various sectors.
Market Dynamics
Regional Growth
The demand for safety light curtains is notably rising in the Asia-Pacific region due to rapid industrialization, urbanization, and increasing investment in manufacturing technologies. Countries like China, Japan, and India are at the forefront of this trend, spurred by heightened workplace safety concerns and the adoption of automation technologies.
Conversely, the European market is also expanding rapidly, supported by a robust industrial automation framework and stringent safety regulations. Nations such as Germany, France, and the United Kingdom are implementing best safety practices to enhance worker health and productivity.
Challenges and Opportunities
Despite the promising growth, challenges such as high installation costs, risks of sensor malfunction, and the necessity for compliance with regulatory standards can hinder market expansion. However, there are considerable opportunities driven by the increasing emphasis on workplace safety and the ongoing transition towards Industry 4.0 and smart manufacturing initiatives, which are likely to propel the demand for advanced safety light curtains in high-risk environments.
