Summary
Muting is a critical safety feature associated with safety light curtains—optoelectronic devices that create invisible barriers to detect the presence of individuals or objects within hazardous areas. These curtains play a vital role in industrial safety by allowing machinery to operate without interruption during the controlled passage of materials, thereby preventing accidental shutdowns while ensuring the safety of personnel. The muting process, which involves the temporary suspension of the protective equipment’s function, is essential in environments where automated systems are prevalent, such as automotive manufacturing and robotic loading/unloading zones.
The muting function is particularly significant in situations requiring continuous workflow, as it allows materials to pass through danger zones without compromising safety standards. The process typically includes four defined phases, initiated by specialized sensors that ensure only authorized materials trigger the muting function while preventing unauthorized personnel from entering hazardous areas. This careful orchestration is necessary to maintain operational efficiency while adhering to stringent safety protocols.
Key considerations for implementing muting effectively include the proper arrangement of sensors to prevent accidental activations and the establishment of rigorous testing and maintenance procedures. Compliance with safety standards, such as SIL and PL levels, is paramount, as it ensures that safety light curtains function reliably in preventing workplace accidents. Furthermore, organizations must address common challenges and misconceptions surrounding muting to optimize its use in various industrial applications, reinforcing the importance of clear communication and operator training.
Overall, the effective use of muting with safety light curtains enhances workplace safety and productivity by facilitating seamless material handling processes while safeguarding personnel from potential hazards. As industries increasingly adopt automation technologies, understanding when and how to implement muting becomes crucial for ensuring safe human-machine interactions in diverse operational environments.
Table of Contents
Safety Light Curtains
Safety light curtains are optoelectronic devices designed to create an invisible protective barrier that detects the presence of individuals or objects within a defined area. Comprising a transmitter unit and a receiver unit, they emit and receive infrared beams. When an object interrupts these beams, the safety light curtain triggers a safety response, such as stopping machinery or activating an alarm. These devices serve as effective machine guarding solutions, safeguarding personnel from injury while also preventing damage to machinery.
Functionality and Design
Safety light curtains consist of a series of tightly spaced infrared light beams arranged between the emitter and receiver units. This configuration forms a “curtain” that detects any object larger than the beam spacing. Their compact design and high operating speed make them ideal for use in environments where operators frequently access machinery, such as robotic work cells or assembly lines. The beams provide excellent protection in linear zones, although they may be less effective in covering irregularly shaped areas compared to laser scanners.
Applications
Safety light curtains find extensive use in various industrial settings, including:
- Press Brakes and Shears: They instantly stop machinery if limbs enter the danger area, thus protecting operators from serious injuries.

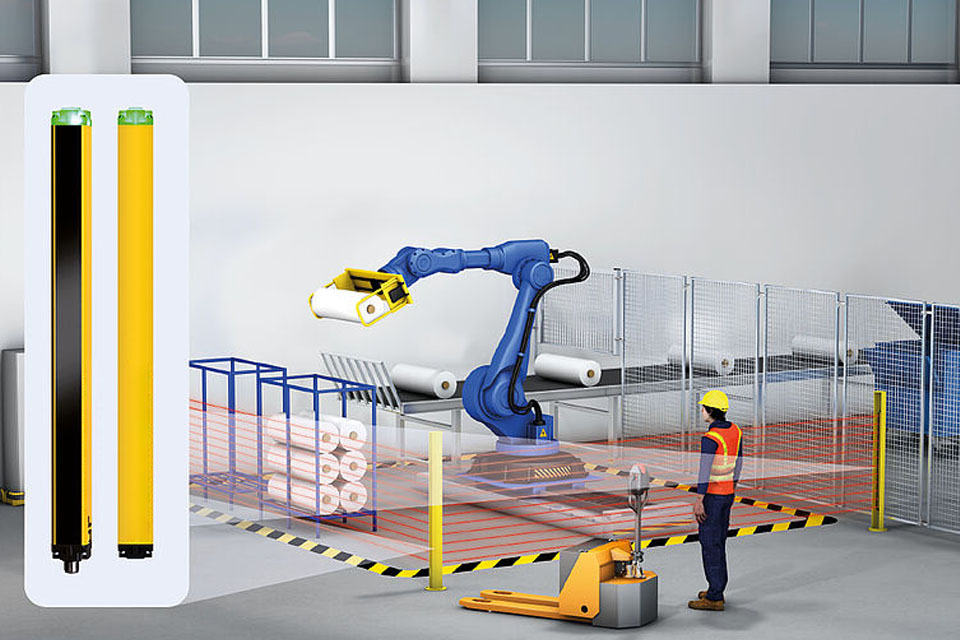

- Robotic Workcells: Monitoring entry and exit points to prevent accidental contact with moving robotic arms facilitates safe human-machine collaboration.
- Conveyor Systems: At transfer points, safety light curtains detect unauthorized access or foreign objects, triggering automatic stops to enhance safety.
- Packaging and Palletizing Equipment: They secure moving parts in high-speed packaging lines, ensuring worker safety during material handling.
- Injection Molding Machines: Light curtains provide safety during mold changes by securing clamp and ejection areas.
Key Features and Advancements
Modern safety light curtains have evolved to include advanced features that enhance their functionality and safety performance. Innovations such as integrated muting allow for the safe passage of objects through the curtains without triggering alarms, making them more adaptable to various operational needs. Additionally, they can be integrated with other safety devices, such as emergency stop buttons and safety mats, creating comprehensive safety systems that provide multiple layers of protection.
Moreover, safety light curtains are recognized for their compliance with high safety standards, such as Type 4, SIL3, and PLe, ensuring superior performance in electro-sensitive protection. The self-diagnosis function helps detect internal faults, further enhancing their reliability in preventing accidents.
Importance in Industrial Safety
The integration of safety light curtains into industrial environments is essential for promoting workplace safety without compromising productivity. They provide a non-contact solution, eliminating the need for physical barriers that may impede workflow, thus improving operational efficiency and reducing downtime. As industries continue to adopt automation technologies, safety light curtains remain a vital component in ensuring safe human-machine interaction in various applications.
Muting Concepts
Muting is a critical function in the realm of safety light curtains, allowing for a temporary and controlled suspension of protective measures to facilitate safe material handling in automated environments. This section explores the fundamental concepts of muting, its applications, and the sensor arrangements used to implement it.
Definition of Muting
Muting refers to the safe, automatic, and temporary suspension (silencing or dimming) of electrosensitive protective equipment, such as light curtains, light barriers, or laser scanners, during operation. This feature allows materials to be transported into and out of danger zones without triggering a shutdown of the safety system. The muting process typically consists of four phases and is indicated by a muting lamp, ensuring clear communication of its status within the operational context.
Applications of Muting
Muting is commonly employed in various industries, including automotive manufacturing, palletizing operations, and the production of stone products like concrete blocks and tiles. These applications typically require material to be accessed safely while minimizing interruptions to production. For instance, in robotic loading and unloading zones, muting allows for the seamless transition of materials without compromising worker safety by preventing unauthorized access to hazardous areas.
Sensor Arrangements for Muting
The effectiveness of muting hinges on the appropriate arrangement of sensors that detect the presence of objects while ensuring that personnel cannot inadvertently trigger the muting cycle.
Sequential Muting
In a sequential arrangement, multiple sensors are connected in a series, requiring activation or deactivation in a specific order. This configuration ensures that the system recognizes the presence of an object before allowing the muting function to engage.
Cross Muting
Cross muting involves positioning sensors such that both must be activated simultaneously to initiate the muting cycle. This arrangement enhances safety by preventing accidental activation, as both sensors need to detect an object concurrently.
Importance of Safety and Reliability
While muting enhances productivity by allowing controlled material flow, it is vital to implement robust safety measures to prevent accidental or unauthorized access during operation. Special sensors must be employed to guarantee that the muting controller activates only when legitimate material is being transported through the protected area. In the event that a person enters the danger zone, the system must immediately shut down any potentially hazardous movement.
When to Use Muting
Muting is primarily employed in situations where the continuous operation of machinery requires the safe and temporary bypass of electrosensitive protective equipment, such as safety light curtains, during the transport of materials through hazardous areas. This functionality is crucial in environments like automated production lines, palletizing operations, and robotic loading/unloading zones, where materials need to be moved in and out of danger zones without unnecessarily halting production processes.
Applications of Muting
Muting is specifically useful in the following scenarios: Personnel Access During Non-Hazardous Machine Cycles: In certain machine operations, it may be necessary for personnel to access a dangerous area while the machine is in a non-dangerous phase of its cycle. For example, when a tool is positioned in a way that poses minimal risk, one light curtain can remain active while the other is set to muting mode, allowing for safe loading or unloading of workpieces. Material Handling: Muting facilitates the seamless movement of materials into and out of hazardous zones. By ensuring that the muting system is activated only when designated items are present, operators can maintain a safe working environment while enhancing productivity. This method reduces downtime, as the light curtain temporarily deactivates only for the time needed to allow the item to pass through.
Safety Considerations
It is essential that muting functions operate under strict safety conditions. The design and arrangement of muting sensors must be carefully considered to prevent accidental activation by personnel. The sensors must be configured so that human presence in the protected area triggers an immediate shutdown of potentially hazardous movements. Additionally, risk assessments should be conducted to ensure that the selected muting options meet the required safety integrity levels (SIL) or performance levels (PL) necessary for the specific application.
By strategically implementing muting, operators can effectively manage workflow while ensuring compliance with safety standards and minimizing the risk of accidents in environments where automated systems are employed.
How to Use Muting
Muting is a safety feature that allows for the temporary suspension of protective equipment, such as light curtains, to facilitate the safe passage of materials through potentially hazardous areas. The use of muting is essential in automated environments, enabling the seamless flow of goods while maintaining safety standards.
Principles of Muting
Muting involves a controlled bypass of the light curtain during which it is temporarily deactivated to allow discrete items to pass without triggering a safety shutdown. The process is initiated by specialized sensors that detect the presence of material being transported through the protected area. This function is crucial in applications such as palletizing and robotic loading and unloading zones, where continuous operation is necessary to enhance productivity and minimize downtime.
Muting Cycle
The muting cycle is characterized by four phases, all of which must be clearly indicated by a muting lamp. These phases ensure that the system is aware of the material’s entry and exit points, thus maintaining safety standards throughout the operation. During this time, it is critical to ensure that only authorized items are allowed to pass, preventing unauthorized personnel from accessing the dangerous zone.
Sensor Arrangement
Proper arrangement of muting sensors is vital for effective operation. The sensors must be positioned in such a way that a person cannot inadvertently activate the muting function. Two common configurations include sequential muting and cross muting, which refer to the specific arrangement of sensors that must be triggered to initiate the muting cycle. Furthermore, it is essential to implement safeguards against accidental initiation of muting due to mechanical damage or misalignment, ensuring that safety measures remain intact during operation.
Safety Function Requirements
For muting to be effective, it is crucial that the light curtain is configured correctly, and that the system can disable muting promptly when the dangerous area is cleared. The system should disable muting within four seconds after the first muting sensor is activated, and this timer must be monitored by a safety-related component. Regular maintenance and inspections are required to ensure that the muting function operates without false activations or nuisance shut-offs, particularly in challenging environments such as those with dust or washdown procedures.
Best Practices for Implementation
To effectively utilize muting with safety light curtains, several best practices should be followed:
- Installation and Maintenance: Ensure that light curtains are installed in compliance with relevant safety standards and that they undergo regular maintenance checks to prevent false activations.
- Periodic Testing: Conduct routine tests of the safety system, including the light curtains, at the start of each shift or when personnel change, to confirm that safety signals are being communicated effectively.
- Integration with Control Systems: The muting system should be compatible with existing machine control systems for seamless integration and operational efficiency.
By adhering to these guidelines, industries can optimize their use of muting in safety light curtains, enhancing both operational efficiency and safety compliance in automated processes.
Best Practices
When implementing safety light curtains, adhering to established best practices is essential to ensure their effective operation and to maintain a safe working environment.
Testing Procedures
Establishing a periodic testing procedure is crucial for verifying that the safety system is functioning correctly. Best practices recommend performing these tests at the start of each shift, during job changes, or whenever an operator changes. Testing should not be limited to the light curtain alone; it should also confirm that the machine responds appropriately to the safety signals. Manufacturers often provide guidance for conducting simple tests to facilitate this process.
Regular Inspections
A regular visual inspection and functional test should be conducted to maintain safety light curtains. This includes checking for misalignment, contamination (such as oil or dust), and any physical damage to the emitter or receiver. Additionally, a comprehensive inspection is recommended at least every six months, or when any machine settings are altered.
Operator Training
Proper training for operators and maintenance teams is vital. All personnel interacting with the machinery must understand how the light curtain functions, the meanings of its signals, and the procedures for safely resetting or troubleshooting the system. Effective training minimizes the risk of accidents and enhances overall workplace safety.
Compliance with Safety Standards
When selecting safety light curtains, it is important to ensure they comply with relevant safety standards, such as IEC 61496 and ISO 13855. These standards outline requirements for design, construction, and testing, ensuring that the light curtains provide adequate protection against hazards. Additionally, understanding the safety categories (with Category 4 being the highest) is critical for assessing risk and ensuring that the chosen safety devices meet necessary control reliability standards.
Documentation
Maintaining thorough documentation of installation, testing, training, and maintenance activities is essential. Detailed records facilitate audits, inspections, and provide evidence of compliance with safety regulations, helping to ensure accountability and adherence to safety protocols.
Challenges and Misconceptions
Implementing safety light curtains, particularly those that incorporate muting functions, can present various challenges and misconceptions that must be addressed to ensure effective use and compliance with safety standards.
Common Challenges
One of the significant challenges associated with safety light curtains is the occurrence of false trips and nuisance shut-offs. Environmental factors or temporary obstructions can cause safety light curtains to trigger erroneously, leading to unnecessary halts in operations. This issue emphasizes the need for proper placement and calibration of the light curtains to mitigate such risks.
Moreover, the design of surrounding guards can render light curtains ineffective. Guard gaps that allow for reaching under or around the protective field compromise the safety measures intended by the light curtains. Designers must ensure that light curtains are appropriately sized and positioned to prevent workers from accessing hazardous areas.
Additionally, the complexity of machine operations can pose difficulties. For instance, the mode of operation—whether single-stroke or continuous—affects how operators interact with the machinery and subsequently the light curtains. Operators’ hands may be occupied during critical machine cycles, increasing the risk of accidents if safety protocols are not rigorously followed.
Misconceptions About Muting
There are also several misconceptions surrounding the use of muting with safety light curtains. One prevalent myth is that muting can be freely activated without strict protocols. In reality, muting should only be triggered by two or more independent hardwired signals in a correct time or space sequence to ensure that signal faults do not lead to hazardous conditions.
Additionally, there is a misunderstanding regarding the design and positioning of muting sensors. It is crucial that the sensors are arranged in such a manner that prevents unauthorized personnel from activating them. This positioning is essential to maintaining the integrity of the safety measures in place.
Furthermore, some operators believe that the safety provided by light curtains can be compromised if they are used in high-risk scenarios, such as around machines that may eject materials at high speeds. In fact, using light curtains in such environments can be inappropriate, and alternative safety measures must be evaluated to address the unique hazards present.
Addressing these challenges and misconceptions is vital for the effective implementation of safety light curtains and ensuring a safe working environment for operators.
Case Studies
Implementation of Safety Light Curtains in Metal Stamping
A notable case study involves the integration of safety light curtains in a metal stamping facility. The application aimed to enhance worker safety while maintaining production efficiency. By employing Category 4 safety light curtains, the facility was able to establish a virtual barrier that effectively detected unauthorized entry into hazardous zones. Regular periodic testing, including checks at the beginning of shifts and during operator changes, ensured that the safety systems remained operational and responsive to safety signals, confirming that the press stopped when the light curtain was interrupted.
Addressing Challenges in Light Curtain Functionality
Another case highlights the common challenges encountered during the implementation of light curtains. Issues such as inconsistent halting of safety mechanisms and improper placement of beams were identified. The facility conducted a thorough risk assessment to determine the optimal setup for their light curtains, ensuring they were positioned at the correct minimum safe distance according to ISO 13855 standards. This proactive approach not only minimized safety hazards but also enhanced the reliability of the safety system, thereby reducing downtime and improving overall operational safety.
Compliance with Safety Standards
In a separate instance, a manufacturing plant faced legal penalties due to non-compliance with safety regulations concerning machinery safeguarding. Following a comprehensive review of the OSHA standards and the relevant state safety plans, the plant implemented robust safety protocols, including the installation of safety light curtains with muting capabilities. This adjustment helped distinguish between personnel and materials, thereby ensuring that the safety functions were maintained while allowing for efficient material handling operations. The plant successfully demonstrated compliance, which mitigated legal risks and improved worker safety outcomes.
Enhancing Production Efficiency with Advanced Muting Technologies
A recent advancement in another manufacturing setting involved the deployment of muting light curtains managed by safety relays. These systems allowed for momentary disabling of the safety function when materials were being transported through the light curtain area. This approach not only optimized production flow but also adhered to strict safety standards by ensuring continuous monitoring of the system’s integrity. Regular audits and inspections were conducted to maintain compliance, which led to a significant reduction in operational downtime and an overall enhancement in workplace safety.
Through these case studies, it is evident that careful consideration of safety light curtain implementation, regular testing, compliance with safety standards, and advancements in muting technology can effectively safeguard personnel while maintaining operational efficiency in industrial environments.
