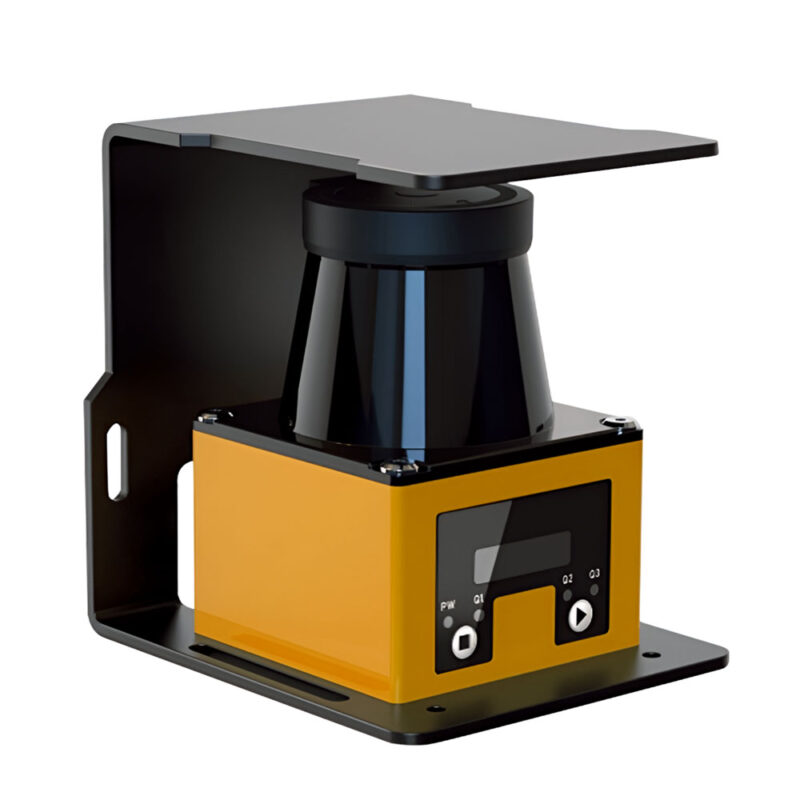

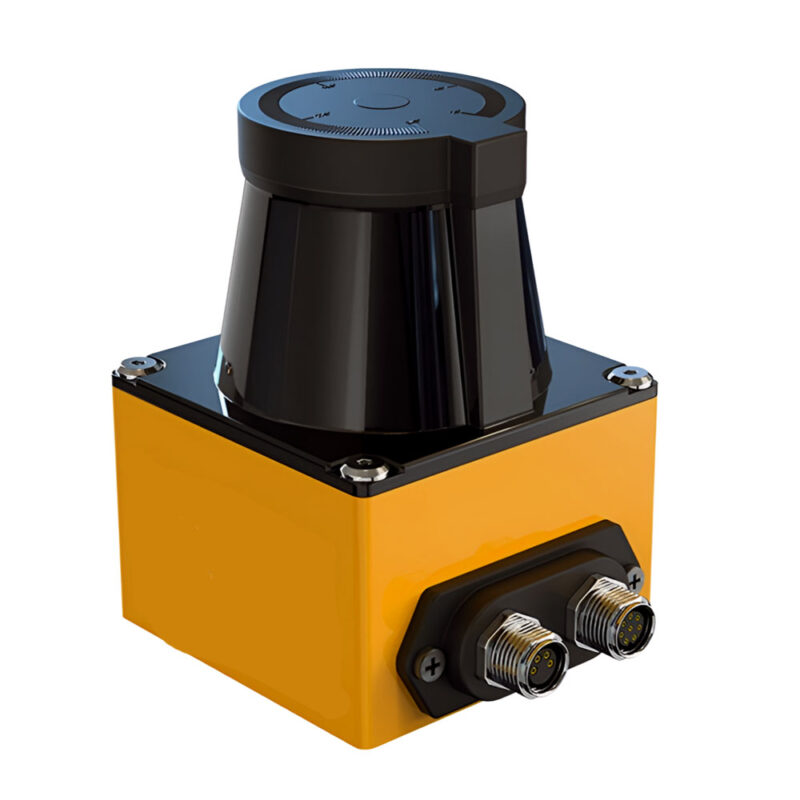

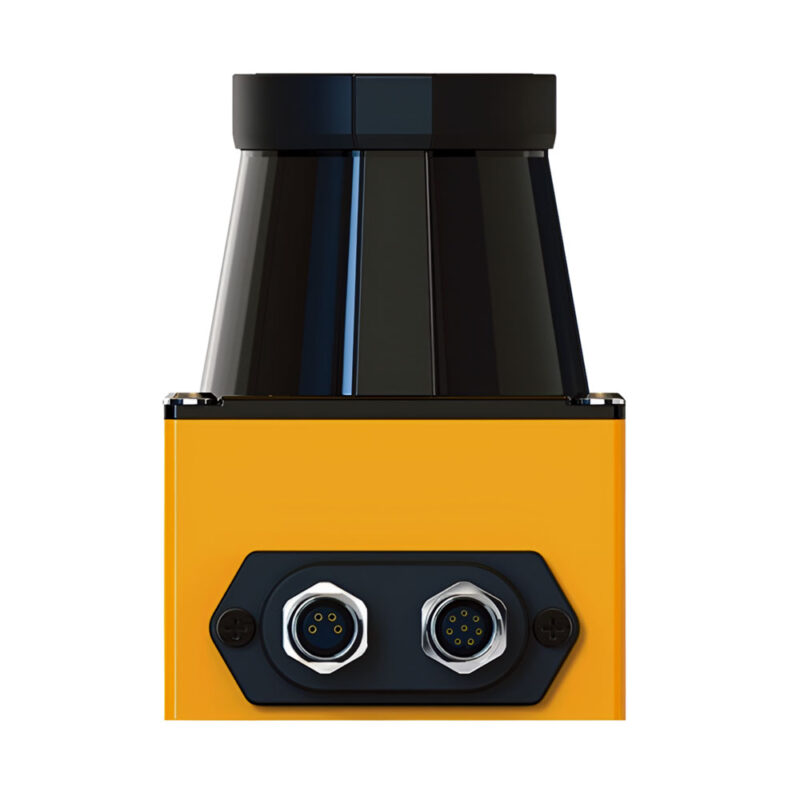

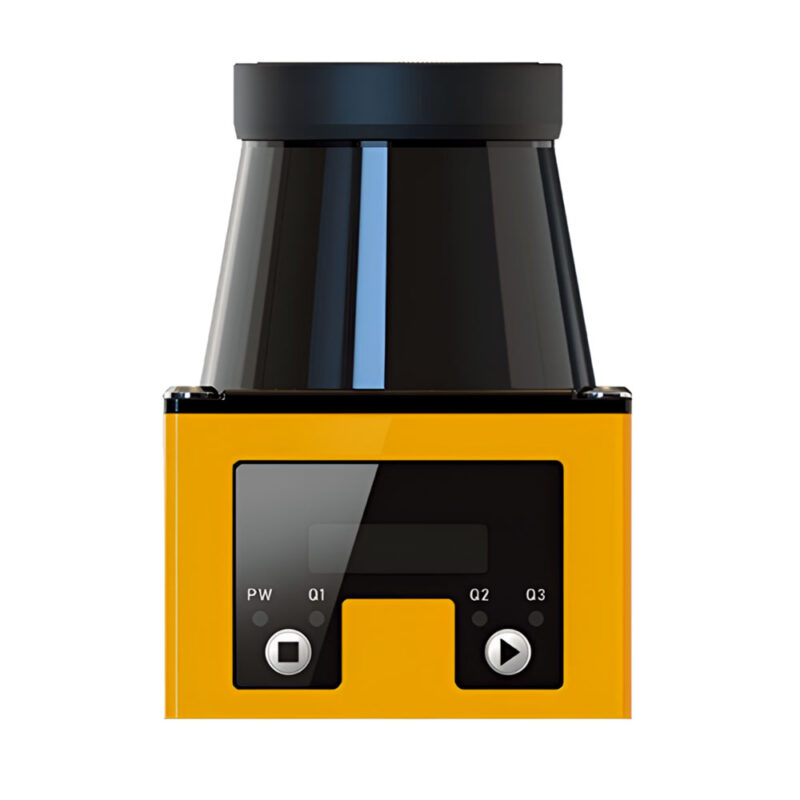

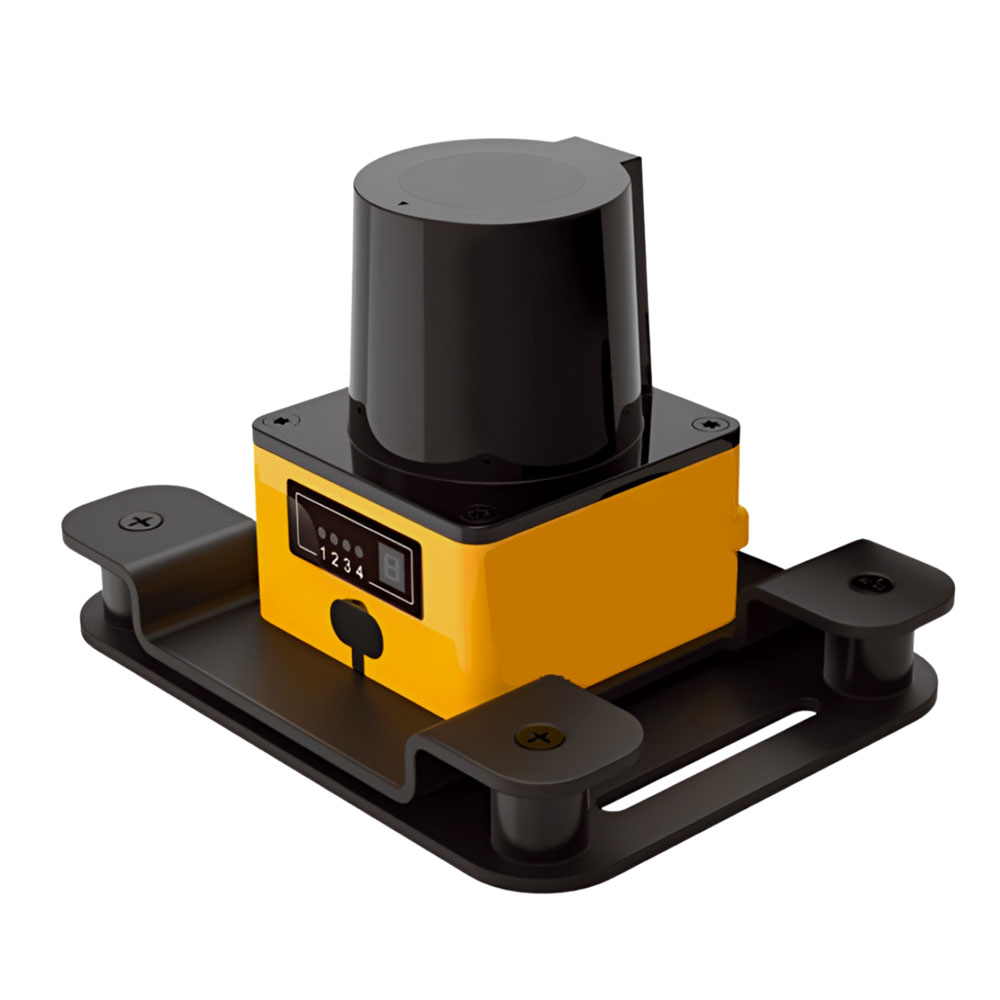

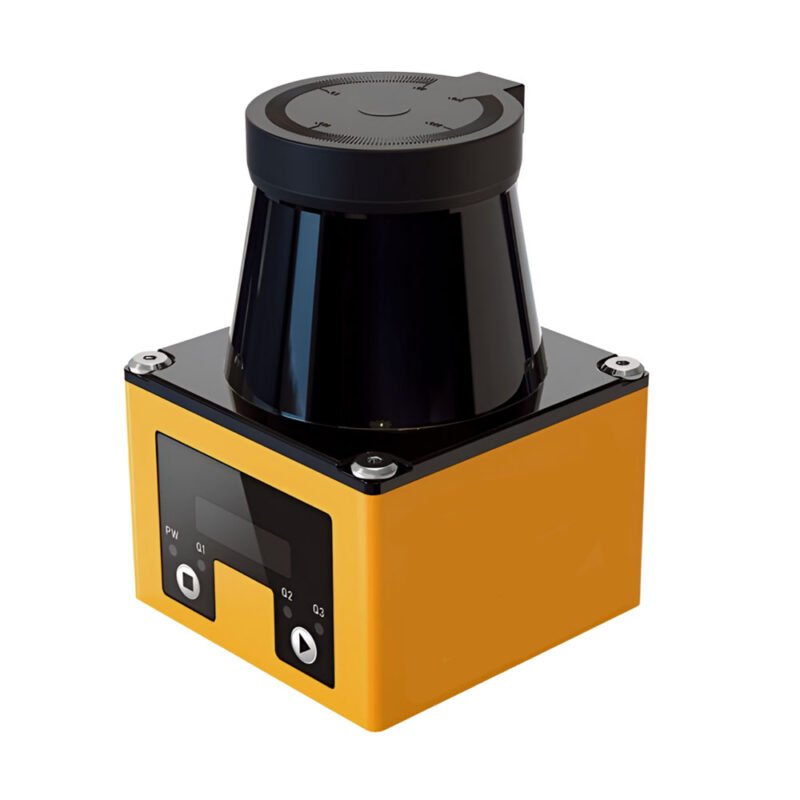

This compact safety scanner offers reliable, high-performance area monitoring for automated systems. Ideal for safeguarding hazardous zones, it detects personnel or obstacles within its field and triggers an immediate machine shutdown to prevent accidents and ensure operational safe
You can also complete the form for a bulk quote or to discuss OEM/ODM solutions. Our specialists will contact you promptly.
| 320° Scan High-performance 2D Laser Radar | ||
| Model | NGA60N4 | NGA60N5 |
| Working range | 0.1m~6m（ ＠ 1.8%） | |
| 0.1m~10m（ ＠ 10%） | ||
| 0.1m~30m（ ＠ 90%） | ||
| Working angular | 320° | |
| Workking principle | PRT（pulse ranging technology） | |
| Laser class | Class 1（ IEC60825-1:2014） | |
| Laser wavelength | 905nm | |
| Pulse time | 5ns | |
| Sampling rate | 144 Khz | 432KHz |
| Scan frequency | 10Hz、20Hz | 15Hz、30Hz |
| Ambient light immunity | <100000 Lux | <80000 Lux |
| Measurement accuracy | ±20mm | |
| Repeatability | ±20mm | |
| Angular resolution | 0.025°，0.025°， 0.05° ，0.1° ，0.25°， 0.5° | |
| Measurement resolution | 1mm | |
| Power supply | DC 10V~30V | DC 15V~30V |
| Working current | 90 mA | 120 mA |
| Rated consumption | ＜3W | ＜3W |
| Interface | 3 NPN output signal or fault of red & orange area) |
4NPN input, 4 NPN output (output signal or fault of red & orange & yellow area) |
| Ethernet TCP/ UDP | ||
| Working indicator | Green | |
| Output indicator | Red, yellow, orange | |
| Ambient temperature | -10℃-55℃ | 25℃-50℃ |
| Ambient humidity | Less than 80%RH | |
| Storage temperature | -25℃-70℃ | |
| Mechanical protection | IP65 | |
| Wire port | Rj45 ethernet | |
| Material | Aluminum alloy (base) | |
| PUMA (Scanning window) | ||
| Sine vibration testing | 10Hz-1000Hz, 5g; 10 cycles for each axis (GBT2423.10-2019) | |
| Vibration resistance | 50-250Hz, RMS-42.4m/s2, 5h testing for each axis (GBT 2423.56-2018) | |
| Shock resistance | 50g, 3ms, 5000 times impacts on each axis；(G8T2423.5-2019) | |
| Product size | 60*60*83.5mm | 60*60*83.9mm |
| Cable length | 2m ethernet cable, 1.5m cable of power & IO | 1m ethernet cable, 1m cable of power & IO |
